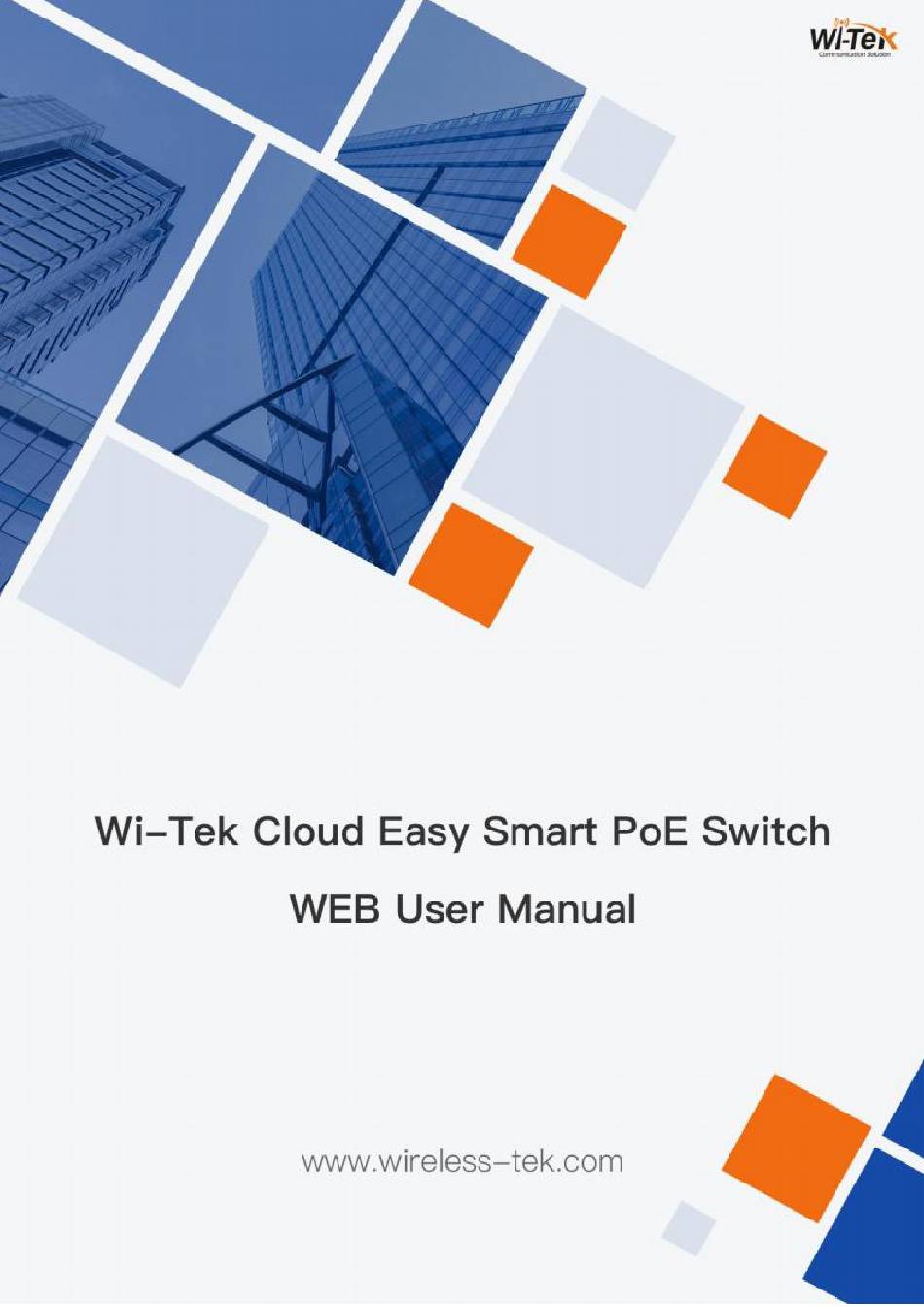

- Page 2 This manual applies to the following switch models model Interface 4-port PoE+1-port RJ45+1-port SFP WI-PCES306GF 8-port PoE+1-port RJ45+1-port SFP WI-PCES308GF Copyright notice Disclaimers Preface Reader object This document is suitable for the following people Network Engineer Technical Promotion Personnel ...
-
Page 3: Table Of Contents
3.3.1 VLAN Member ...................... 16 3.3.2 VLAN Settings ...................... 17 3.4 PoE Settings ........................18 3.4.1 PoE Settings ......................18 3.5 Onvif ..........................18 3.6 Cloud Settings .........................19 3.6.1 MQTT Client ......................19 3.6.2 Wi-tek Devices Discovery Table ................19 4 Frequently Asked Questions ...................20... -
Page 4: Overview
Web Smart Function Configuration 1 Overview Web Smart refers to the device web management system, that is, the web management system that manages or configures the device, and manages the device by accessing Web Smart using a browser (such as Chrome). Web management includes two parts: Web server and Web client. -
Page 5: Connecting To The Network
source with the included power cord, and check the power LED is on. 2.2 Connecting to the Network To connect the switch to the network: Connect an Ethernet cable to the Ethernet port of a computer Connect the other end of the Ethernet cable to one of the numbered Ethernet ports of the switch. -
Page 6: Logging In
2.5 Logging In The default username is admin and the default password is admin. To log in to the device configuration utility: Enter the default user ID (admin) and the default password (admin). If this is the first time that you logged on with the default user ID (admin) and the default password (admin) it is recommended that you change your password immediately. -
Page 7: Web-Based Switch Configuration
the Login page appears, with a message indicating the logged-out state. After you log in, the application returns to the initial page. 2.6Web-based Switch Configuration The Web smart switch software provides Layer 2 functionality for switches your networks. This chapter describes how to use the web-based management interface (Web UI) to configure the switch’s features. -
Page 8: Web Smart Configuration
When the port is connected with 1000M speed, the port color is green, like in following picture: 3 Web Smart Configuration 3.1 System Settings 3.1.1 Device Info The device info interface displays the basic information of the device. 3.1.2 IP Settings Configure device management IP (default static IP: 192.168.0.1) Tips:... - Page 9 1. When configuring IP, the device will be disconnected briefly. If automatic IP acquisition is enabled, you need to obtain the configuration IP from the uplink device or web management through device management IP: 10.XX.XX.XX(XX.XX.XX is the last three digits of the MAC address of the current device). 3.1.3 User Management Configure the user account information,including username and password Tips:...
- Page 10 3.1.6 Reset Click《 Fatcory Default》 to reset the equipment to factory default settings. 3.1.7 Save Configuration Click the menu or the <Save> icon on the left upper side to save current configuration of the switch. 3.1.8 Reboot Click《 Reboot》 to restart the equipment.
-
Page 11: Switch Settings
3.2 Switch Settings 3.2.1 Port Settings Port configuration can batch configure the status, speed, duplex, flow control of ports. The page is divided into two parts: Configuration part: Select the port to be configured, then select each attribute to be configured, and click Save to distribute the configuration. -
Page 12: Port Statistics
3.2.2 Port Statistics The Port Statistics page displays the data statistics and status of the device port, such as the port sending and receiving rate, sending and receiving packets, etc. 3.2.3 Storm Control Select the port number,configured storm control type(Broadcast, Multicast, Unicast), and click《Save》... - Page 13 2. Another mirror group is using the destination port Supports 4 Session IDs...
-
Page 14: Port Isolation
3.2.5 Port Isolation The port isolation is divided into two parts: configuration part and display part Configure isolation port group Display the port isolation list 3.2.6 Port Bandwidth Control Select the port for configuration Egress, enter the rate and click save to configure the bandwidth control settings Tips: 1. -
Page 15: Loop Guard
Select the trunk group and click <delete> the trunk group. Tips: 1. Maximum 2 trunk group can be set up for WI-PCES308GF, 1 for WI-PCES306GF. 2. In each trunk group maximum 4 member ports. 3. The mirroring port cannot be added in the trunk group. -
Page 16: Static Mac
3.2.10 Static MAC The static MAC configuration is divided into two parts. Static MAC add: Enter the legitimate MAC address, VLAN ID, and select the configured port number. Click 《Add》 to add static MAC. Static MAC deletion and display: After adding a legal static Mac, the corresponding data will be displayed; Check the static Mac and click《Delete》. -
Page 17: Vlan Settings
3.3.2 VLAN Settings Port VLAN configuration is divided into two parts: Part I: Port VLAN configuration, select port, VLAN type (access and trunk, allow VLAN can be configured under trunk), allow VLAN and native VLAN, and click《Sav e》 to configure and save port VLAN (Permit VLAN and Native VLAN are selected from the VLAN members configured above);... -
Page 18: Poe Settings
3.4 PoE Settings Tips: Some models support Poe function 3.4.1 PoE Settings Includes port PoE configuration and display: Configuration part: <Mode>:Select Enable/disable to turn on/off the PoE function per port <Extend PoE Mode>:Select On/Off to enbale or disable the extend PoE mode (250M PoE ) on this port <PoE Watchdog>:Select On/Off to enbale or disable the PoE watchdog function on this port... -
Page 19: Cloud Settings
2. The “ MQTT Connect Status” needs to refresh the page to update the status. 3.6.2 Wi-tek Devices Discovery Table The discovery function makes it possible to discover other Wi-tek brand devices in the network. Click <Delect> to discover the devices. -
Page 20: Frequently Asked Questions
4 Frequently Asked Questions Question 1: unable to log in to the device manager web management interface. What should I do? Refer to the following steps: 1) Confirm that the PC network cable is normally connected to the device port, and the corresponding indicator flashes.
