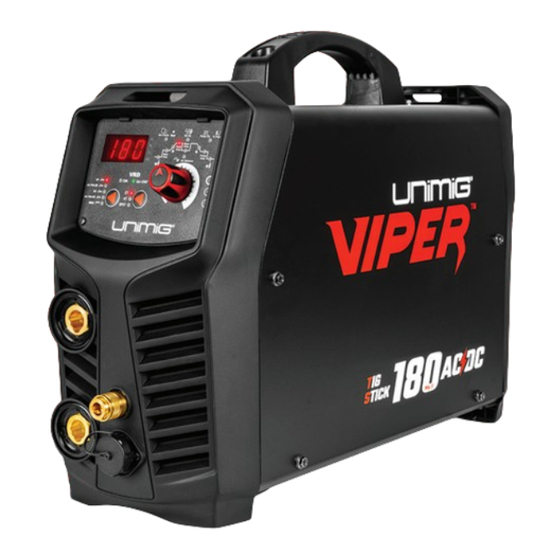

VIPER 180 AC/DC Mk II
U12001K | Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIPER 180 AC/DC Mk II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unimig VIPER 180 AC/DC Mk II

Summary of Contents for Unimig VIPER 180 AC/DC Mk II

  • Page 1 VIPER 180 AC/DC Mk II U12001K | Operating Manual...

  • Page 3: Table Of Contents

    CONTENTS SAFETY TECHNICAL DATA WHAT’S IN THE BOX MACHINE LAYOUT CONTROL PANEL LAYOUT SETUP FOR TIG CONTROL PANEL OPERATION TIG WELDING GUIDE SETUP FOR STICK (MMA) WELDING MMA CONTROL PANEL OPERATION MMA (STICK) ADDITIONAL NOTES MMA (STICK) WELDING GUIDE TORCH BREAKDOWN & SPARES...

  • Page 4: Safety

    SAFETY Welding and cutting equipment can be dangerous to both the operator and people in or near the surrounding working area if the equipment is not correctly operated. Equipment must only be used under the strict and comprehensive observance of all relevant safety regulations. Read and understand this instruction manual carefully before the installation and operation of this equipment.
  • Page 5 SAFETY Fire hazard. Welding/cutting on closed containers, such as tanks, drums, or pipes, can cause them to explode. Flying sparks from the welding/cutting arc, hot workpiece, and hot equipment can cause fires and burns. Accidental contact of the electrode to metal objects can cause sparks, explosion, overheating, or fire. Check and be sure the area is safe before doing any welding/cutting.
  • Page 6 SAFETY CAUTION 1. Working Environment. The environment in which this welding/cutting equipment is installed must be free of grinding dust, corrosive chemicals, flammable gas or materials etc., and at no more than a maximum of 80% humidity. ii. When using the machine outdoors, protect the machine from direct sunlight, rainwater and snow, etc.; the temperature of the working environment should be maintained within -10°C to +40°C.
  • Page 7 SAFETY ATTENTION! - CHECK FOR GAS LEAKAGE At initial set up and at regular intervals we recommend to check for gas leakage Recommended procedure is as follows: 1. Connect the regulator and gas hose assembly and tighten all connectors and clamps. 2.

  • Page 8: Technical Data

    TECHNICAL DATA VIPER™ 180 AC/DC TIG/STICK Welder Key Features: • AC/DC High-Frequency TIG • Pulse TIG Function • 10 AMP Plug • Foot Control Ready • 2T/4T Torch Modes • Remote Control Module TECHNICAL DATA AC/DC TIG SETTINGS MACHINE VIPER TIG 180 AC/DC PRE GAS 0.1-3.0s SKU KUM-M-VTIG180ACDC START AMP 5-180A...

  • Page 9: What's In The Box

    WHAT’S IN THE BOX VIPER 180 AC/DC TIG/STICK Welder 4m T2 TIG Torch 4m Electrode Holder VIPER 180 AC/DC Mk II U12001K | Operating Manual 4m 300 AMP Earth Clamp Argon Flowmeter Regulator Operating Manual...

  • Page 10: Machine Layout

    MACHINE LAYOUT Front Panel Layout 1. Digital control panel 2. Positive (+) output terminal 3. Negative (-) output terminal 4. Torch switch - Remote connector 5. Quick lock gas connector 6. Adjustment Knob Rear Panel Layout 7. Power switch - on/off 8.

  • Page 11: Control Panel Layout

    CONTROL PANEL LAYOUT Control Panel Layout 1. Digital Display 5. Adjustment Knob 2. Welding Process Selector 6. Remote Mode Indicator 3. Torch Mode Selector 7. Tungsten Electrode Size Indicator 4. Weld Cycle Parameters 8. Parameter Warning...

  • Page 12: Setup For Tig

    SETUP FOR TIG Connect the TIG torch to the negative (-) dinse Connect the gas lead on the torch onto the gas connection, twist to lock in place. Connect the outlet on the front of the machine. 9-pin plug into the 9-pin outlet. Connect the earth clamp to the positive (+) Place argon flowmeter regulator into your gas dinse connection, twist to lock in place.
  • Page 13 SETUP FOR TIG Tighten securely with wrench. Connect gas hose to the flowmeter outlet, and crimp in place. Adjust gas glow to 6-10L/min. Set parameters according to TIG Control Panel Operation (Page 15).
  • Page 14 SETUP FOR LIFT ARC TIG Connect earth clamp to your workpiece. Initiate arc by pressing the button on the TIG Torch. IMPORTANT! - We strongly recommend that you check for gas leakage prior to operation of your machine. We recommend that you close the cylinder valve when the machine is not in use. Welding Guns Of Australia PTY LTD, authorised representatives or agents of Welding Guns Of Australia PTY LTD will not be liable or responsible for the loss of any gas.

  • Page 15: Control Panel Operation

    CONTROL PANEL OPERATION Adjustment Knob Provides digital adjustment of welding parameters and provides step by step motion through the weld cycle parameters. • Turn the knob to increase or decrease the desired value displayed on the LED display. • Press the knob to cycle between each step of the weld cycle. Weld Mode Selector Enables selection of required welding mode: •...
  • Page 16 TIG CONTROL PANEL OPERATION 1. Pre Gas Timer 10. AC Balance Provides selection for gas flow time prior to the arc Provides balance adjustment of the AC wave form in starting (0.1-3.0s). AC TIG mode. Allows adjustment of the proportion of polarity from balanced, to more –...

  • Page 17: Tig Welding Guide

    TIG WELDING GUIDE AC Square Wave Frequency Control AC SQUARE WAVE FREQUENCY It is possible with this machine to adjust the frequency of the AC Square Wave output. It means that the amount of time that it takes the AC square wave to complete a full cycle switch from positive (+) to negative (-) CONTROL can be adjusted from 20Hz (20 times per second) to 200Hz Increasing frequency (Hz) causes the current to change direction more often, which means that it spends less...
  • Page 18 TIG WELDING GUIDE Razor AC TIG Welding - AC Wave Balance Control 32OAC/DC TIG-MMA AC (alternating current) enables us to TIG weld non ferrous alloys like Aluminium, Magnesium and Aluminium Alloys. These materials have an insulating surface oxide layer that melts at a higher temperature than the base metal making it difficult to weld the base metal if the oxides are not removed.
  • Page 19 TIG WELDING GUIDE AC TIG Welding - AC Wave Balance Control Razor 32OAC/DC TIG-MMA In older machines, a balanced current output wave was achieved using a large number of capacitors in series or a battery in the welding circuit. Modern TIG power sources use electronics to create and maintain a balanced wave and now most AC TIG power sources produce a square wave current output.
  • Page 20 AC PULSE TIG SETUP TIG WELDING GUIDE AC PULSE TIG WELDING SET UP PROCEDURE Thhis machine has digital pulse frequency control. All the parameters for AC Pulse TIG welding - Peak Amp, Base Amp, Pulse Frequency and Pulse Width are easy to set via the digital control panel. EXAMPLE OF PULSE AC TIG WELDING - SETUP PARAMETERS: Material = Aluminium x 3.0mm / Tungsten Electrode = 2.4mm Zirconiated / Gas = Argon The following steps are a guide as a starting point for you to set the machine up in Pulse mode to give an example of welding in Pulse mode function.
  • Page 21 TIG WELDING GUIDE DC TIG Welding The DC power source uses what is known as DC (direct current) in which the main electrical component known as electrons flow in only one direction from the negative pole (terminal) to the positive pole (terminal). In the DC electrical circuit, there is an electrical principle at work which should always be taken into account when using any DC circuit.
  • Page 22 TIG WELDING GUIDE Razor Razor 32OAC/DC TIG-MMA C Pulse TIG Welding DC Pulse TIG Welding 32OAC/DC TIG-MMA ulse TIG welding is when the current output (amperage) changes between high and low current. Pulse TIG welding is when the current output (amperage) changes between high and low current. DC TIG Welding lectronics within the welding machine create the pulse cycle.
  • Page 23 DC PULSE TIG SETUP TIG WELDING GUIDE DC PULSE TIG WELDING SET UP PROCEDURE Thhis machine has digital pulse frequency control. All the parameters for DC Pulse Tig welding - Peak Amp, Base Amp, Pulse Frequency and Pulse Width are easy to set via the digital control panel. EXAMPLE OF PULSE DC TIG WELDING - SETUP PARAMETERS: Material = Stainless Steel x 2.0mm / Tungsten Electrode = 1.6mm 2% Thoriated / Gas = Argon The following steps are a guide as a starting point for you to set the machine up in Pulse mode to give an example of welding in Pulse mode function.
  • Page 24 TIG WELDING GUIDE TIG Welding Fusion Technique Manual TIG welding is often considered the most difficult of all the welding processes. Because the welder must maintain a short arc length, great care and skill are required to prevent contact between the electrode and the workpiece.
  • Page 25 TIG WELDING GUIDE Tungsten Electrodes • Tungsten is a rare metallic element used for manufacturing TIG welding electrodes. The TIG process relies on tungsten’s hardness and high-temperature resistance to carry the welding current to the arc. Tungsten has the highest melting point of any metal, 3,410 degrees Celsius. •...
  • Page 26 TIG WELDING GUIDE Tungsten Electrodes Rating for Welding Currents Tungsten Diameter (mm) Diameter at the Tip (mm) Constant Included Angle (°) Current Range (Amps) Current Range (Pulsed Amps) 1.0mm 0.25 5 - 30 5 - 60 1.6mm 8 - 50 5 - 100 1.6mm 10 - 70...

  • Page 27: Setup For Stick (Mma) Welding

    SETUP FOR STICK (MMA) WELDING For DC+ electrodes, connect earth clamp to the For DC- electrodes, connect earth clamp to the negative (-) dinse connection, and electrode positive (+) dinse connection, and electrode holder to the positive (+) dinse connection. holder to the negative (-) dinse connection.
  • Page 28 SETUP FOR STICK (MMA) WELDING Place electrode into electrode holder. Twist electrode holder to tighten and securely grip electrode. Connect earth clamp to your workpiece. Strike electrode against workpiece to initiate arc.
  • Page 29 SETUP FOR STICK (MMA) WELDING Drag along workpiece to weld. Pull the electrode away from the workpiece to finish weld.

  • Page 30: Mma Control Panel Operation

    MMA CONTROL PANEL OPERATION Adjustment Knob Provides digital adjustment of welding parameters and provides step by step motion through the weld cycle parameters. • Turn the knob to increase or decrease the desired value displayed on the LED display. • Press the knob to cycle between each step of the weld cycle. Arc Force AMP Set MMA Mode Selector...

  • Page 31: Mma (Stick) Additional Notes

    MMA (STICK) ADDITIONAL NOTES DC MMA ELECTRODE POLARITY - What is the electrode polarity and why is it important. When using a DC power source, the question of whether to use electrode negative or positive polarity arises. Direct current flows in one direction in an electrical circuit and the direction of current flow and the composition of the elec-trode coating will have a definite effect on the welding arc and weld bead.

  • Page 32: Mma (Stick) Welding Guide

    MMA (STICK) WELDING GUIDE STICK (MMA / Manual Metal Arc) Welding One of the most common types of arc welding is manual metal arc welding (MMA) or MMA welding. An electric current is used to strike an arc between the base material and a consumable electrode rod or ‘stick’. The electrode rod is made of a material that is compatible with the base material being welded and is covered with a flux that gives off gaseous vapours that serve as a shielding gas and providing a layer of slag, both of which protect the weld area from atmospheric contamination.
  • Page 33 MMA (STICK) WELDING GUIDE Electrode Selection As a general rule, the selection of an electrode is straight forward, in that it is only a matter of selecting an electrode of similar composition to the parent metal. However, for some metals, there is a choice of several electrodes, each of which has particular properties to suit specific classes of work.

  • Page 34: Torch Breakdown & Spares

    TORCH BREAKDOWN & SPARES ARC TORCHOLOGY® T2 TIG Torch Part No. Length 4m (EURO) UMT2F4M UMT2F8M UMT2F4ME TORCH SPARES TECHNICAL DATA UMCT2HG T2/T3W HEAD GASKET COOLING METHOD Air Cooled UMCT2QZSN T2/T3W QUARTZ ZONE ISOLATOR DUTY CYCLE - DC 35% @ 190A UMCT2SN T2/T3W HEAT ZONE ISOLATOR DUTY CYCLE - AC 35% @ 135A...
  • Page 35 TORCH BREAKDOWN & SPARES T2 TIG Torch Consumables 10. T2/T3W Gas Lens Collet Body Part-No Description Bore Size UMCT2GL10 T2/T3W Gas Lens Collet Body 1.0mm UMCT2GL16 T2/T3W Gas Lens Collet Body 1.6mm UMCT2GL24 T2/T3W Gas Lens Collet Body 2.4mm UMCT2GL32 T2/T3W Gas Lens Collet Body 3.2mm 11.
  • Page 36 FAQ & TROUBLESHOOTING TIG TROUBLESHOOTING 1. Tungsten burning away quickly • Incorrect Gas or No Gas. Use pure Argon. Check cylinder has gas, connected, turned on and torch valve is open. • Inadequate gas flow. Check the gas is connected, check hoses, gas valve and torch are not restricted. •...
  • Page 37 FAQ & TROUBLESHOOTING STICK (MMA) TROUBLESHOOTING 1. No arc. • Incomplete welding circuit. Check earth lead is connected. Check all cable connections. . • Wrong mode selected. Check the MMA selector switch is selected. • No power supply. Check that the machine is switched on and has a power supply. 2.
  • Page 38 NOTES...
  • Page 39 NOTES...
  • Page 40 PH: (02) 9780 4200 PH: (07) 3333 2855 PH: (03) 8682 9911 PH: (08) 6363 5111 FAX: (02) 9780 4210 FAX: (07) 3274 5829 FAX: (03) 9333 7867 FAX: (08) 9417 4781 EMAIL: sales@unimig.com.au EMAIL: qld@unimig.com.au EMAIL: vicsales@unimig.com.au EMAIL: wasales@unimig.com.au...
