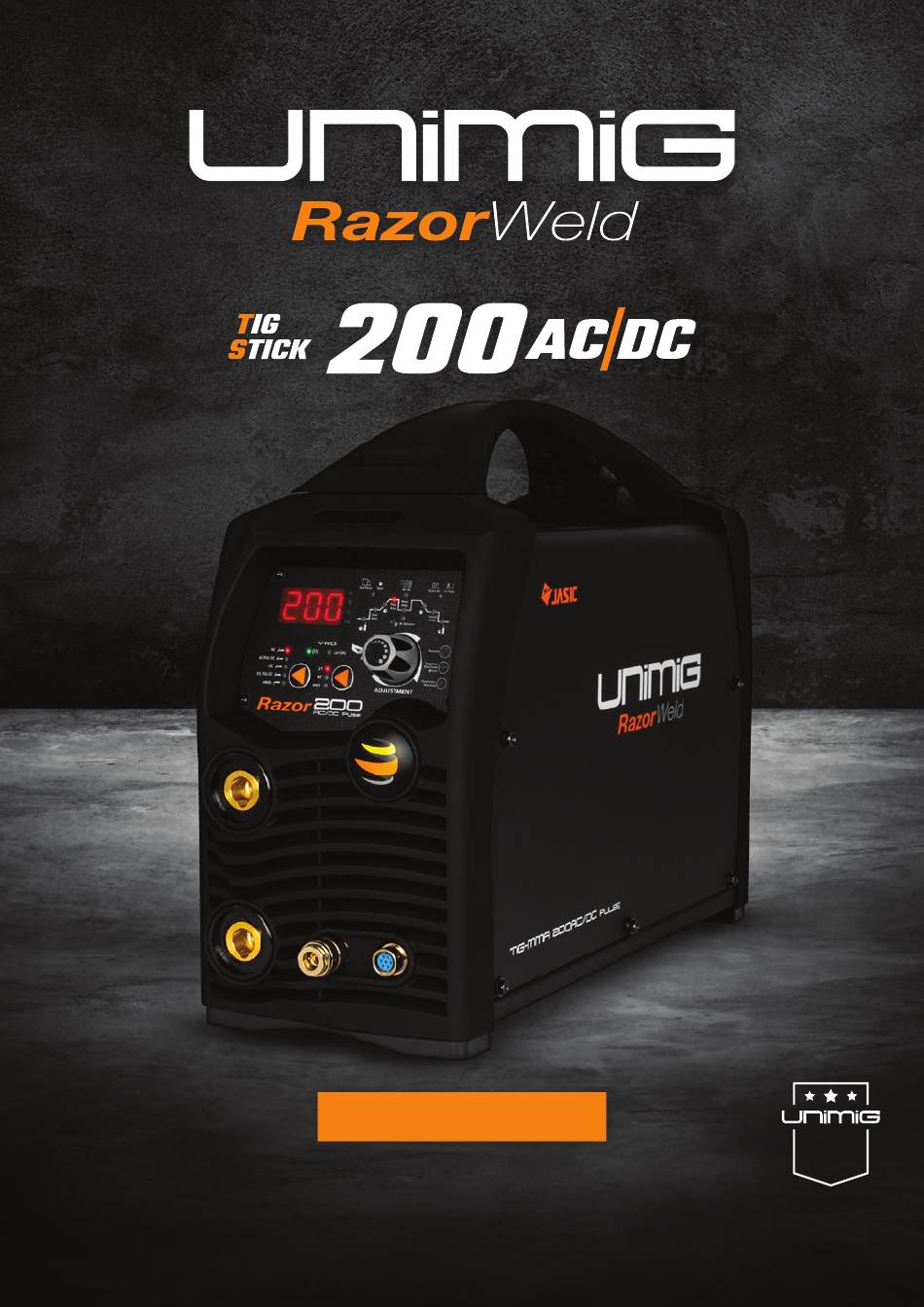

- Page 1 OPERATING MANUAL 3 YEAR KUM-M-RTIG200ACDC WARRANTY (POWER SOURCE) Please read and understand this instruction manual carefully before the installation and operation of this equipment. © Welding Guns Of Australia PTY LTD 2019...
-
Page 2: Warranty
• New product will not be supplied unless Welding Guns Of Australia PTY LTD has inspected product returned for warranty and agrees to replace product. • Product will only be replaced if repair is not possible • Please view full Warranty term and conditions supplied with machine or at www.unimig.com.au/warranty-registration/ or at the back of this manual. REGISTER YOUR MACHINE ONLINE TO RECEIVE AN ADDITIONAL 6 MONTHS ON YOUR WARRANTY Visit unimig.com.au/warranty-registration/ to register your machine. -
Page 3: Table Of Contents
CONTENTS WARRANTY SAFETY RAZOR TIG 200 AC/DC FEATURES RAZOR TIG 200 AC/DC TECHNICAL DATA MACHINE PARTS LAYOUT FRONT PANEL OPERATION WELD PROGRAM OPERATION ADDITIONAL FRONT PANEL OPERATION H/F DC TIG SETUP DC TIG WELDING GUIDE DC PULSE TIG SETUP MANUAL TIG WELDING TECHNIQUE... -
Page 4: Safety
• Measures should be taken to protect people in or near the surrounding working area. Use protective screens or barriers to protect others from flash,glare and sparks; warn others not to watch the arc. 4 | RAZOR TIG 200 AC/DC Manual... - Page 5 Hot parts. Items being welded/cut generate and hold high heat and can cause severe burns. Do not touch hot parts with bare hands. Allow a cooling period before working on the welding/cutting gun. Use insulated welding gloves and clothing to handle hot parts and prevent burns. RAZOR TIG 200 AC/DC Manual | 5...
- Page 6 TROUBLE SHOOTING Caution: Only qualified technicians are authorized to undertake the repair of this welding/cutting equipment. For your safety and to avoid Electrical Shock, please observe all safety notes and precautions detailed in this manual. 6 | RAZOR TIG 200 AC/DC Manual...
- Page 7 Welding Guns Of Australia PTY LTD, authorised representatives or agents of Welding Guns Of Australia PTY LTD will not be liable or responsible for the loss of any gas. RAZOR TIG 200 AC/DC Manual | 7...
-
Page 8: Razor Tig 200 Ac/Dc Features

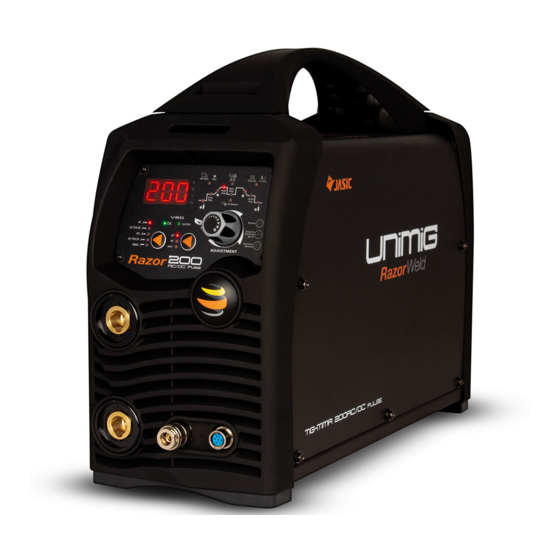

OVERVIEW • 15 AMP Plug The RAZOR TIG 200 AC/DC is the perfect AC/DC TIG & STICK Welder for professional welder wanting both AC and DC TIG welding capabilities. Fitted with a 15 AMP Plug, • AC/DC H/F TIG & PULSE TIG this machine is suited to light to medium industrial work. -
Page 9: Razor Tig 200 Ac/Dc Technical Data
RAZOR TIG 200 AC/DC TECHNICAL DATA TECHNICAL DATA STICK SPECIFICATIONS MACHINE RAZOR TIG 200 AC/DC STICK WELDING CURRENT RANGE 10-160A KUM-M-RTIG200ACDC STICK DUTY CYCLE @ 40°C 30% @ 160A PRIMARY INPUT VOLTAGE 240V Single Phase STICK ELECTRODE RANGE 2.5-4.0mm STICK WELDING THICKNESS... -
Page 10: Machine Parts Layout
5. Quick Lock Gas Connector 6. Torch Switch - Remote Connector 7. Encoder Knob 8. Weld Cycle Display BACK PANEL LAYOUT 9. Power Switch 10. Mains Power Input Cable 11. Fan 12. Inlet Gas Connector 10 | RAZOR TIG 200 AC/DC Manual... -
Page 11: Front Panel Operation
Provides digital adjustment of welding parameters and provides step by step motion through the weld cycle parameters. • Turn the knob to increase or decrease the desired value displayed on the LED display. • Press the knob to cycle between each step of the weld cycle. RAZOR TIG 200 AC/DC Manual | 11... -
Page 12: Weld Program Operation
• Provides selection to adjust the balance of the AC wave form in AC TIG mode. Allows adjustment of the arc to be balanced, penetrating or oxide cleaning during AC TIG welding. (-5 to +5) 12 | RAZOR TIG 200 AC/DC Manual... -
Page 13: Additional Front Panel Operation
The machine will still function but it is a warning to the operator that the weld parameters chosen are outside the generally accepted capabilities of the electrode size selected. For example excessive amperage selected may overheat and destroy the tungsten electrode. RAZOR TIG 200 AC/DC Manual | 13... -
Page 14: H/F Dc Tig Setup
2T or 4T trigger work piece. Hold even distance of about 2mm gap between the function choice tungsten and work piece to maintain the arc. 14 | RAZOR TIG 200 AC/DC Manual... -
Page 15: Dc Tig Welding Guide
This plasma stream provides heat and energy that allows us to melt and fuse metals in an inert gas shielded environment know as TIG (tungsten inert gas) welding. Gas flow Plasma molecules ..stream RAZOR TIG 200 AC/DC Manual | 15... - Page 16 Pulsing also constricts and focuses the arc thus increasing arc stability, penetration and travel speeds. high frequency no pulse high frequency pulsing no pulse pulsing 16 | RAZOR TIG 200 AC/DC Manual...
-
Page 17: Dc Pulse Tig Setup
9. Rotate the Adjustment Encoder Knob to set Start Finish Amp) by pushing the selector button to the Pulse Width at 60% - (Range is 10 - 90%) cycle through to illuminate the % Pulse Icon. AC Balance RAZOR TIG 200 AC/DC Manual | 17... -
Page 18: Manual Tig Welding Technique
75° Travel direction 15° Form a weld pool Angle torch Add Tig filler wire Gas shield Retract the filler wire Move the torch forward to the front of Repeat the process the weld pool 18 | RAZOR TIG 200 AC/DC Manual... -
Page 19: H/F Ac Tig Setup
2T or 4T trigger work piece. Hold even distance of about 2mm gap between the function choice. tungsten and work piece to maintain the arc. RAZOR TIG 200 AC/DC Manual | 19... -
Page 20: Ac Square Wave Frequency Control
Action Wider Weld Bead Current Wider Arc Broader Weld Pool Faster AC Square Wave Hz Faster AC Square Wave Hz Narrower Cleaning Action Narrower Weld Bead Faster Weld Speed Current Narrow Arc Narrower Weld Pool 20 | RAZOR TIG 200 AC/DC Manual... -
Page 21: Ac Tig Welding Guide
However while the arc is maintained less current flows during this half of the AC cycle, producing an unbalanced wave. RAZOR TIG 200 AC/DC Manual | 21... - Page 22 Less Penetration - Oxide Cleaning More Electrode Capacity Less Electrode Capacity MORE POSITIVE BALANCE Balance Adjusted for More Oxide Cleansing Action - Hotter Tungsten direct polarity current reverse polarity Less Penetration - Oxide Cleaning Less Electrode Capacity 22 | RAZOR TIG 200 AC/DC Manual...
-
Page 23: Ac Pulse Tig Setup
9. Rotate the Adjustment Encoder Knob to set Start Finish Amp) by pushing the selector button to the Pulse Width at 60% - (Range is 10 - 90%) cycle through to illuminate the % Pulse Icon. AC Balance RAZOR TIG 200 AC/DC Manual | 23... - Page 24 Up & down travel of the foot pedal will adjust machine. the welding amperage during welding. The side potentiometer knob will allow manual set and adjustment. 24 | RAZOR TIG 200 AC/DC Manual...
-
Page 25: Tungsten Electrodes
AC welding Zirconiated tungsten produces a very stable arc and is resistant to tungsten spitting. It is ideal for AC welding because it retains a balled tip and has a high resistance to contamination. Its current-carrying capacity is equal to or greater than that of thoriated tungsten. Zirconiated tungsten is not recommended for DC welding. RAZOR TIG 200 AC/DC Manual | 25... - Page 26 However, they risk decreased welding performance from melting at the tip and the possibility of the point falling off into the weld pool. 2.5 times tungsten diameter pointed tip flat tip 26 | RAZOR TIG 200 AC/DC Manual...
- Page 27 Eye injury generally occurs from manually grinding tungsten electrodes without a safety shield or safety glasses. Small slivers of tungsten electrode may become stuck in the operator’s eye. RAZOR TIG 200 AC/DC Manual | 27...
-
Page 28: Mma (Stick) Welding Set Up
(8) Wait for the weld to cool and carefully chip away maintaining the arc while travelling at an even speed. the electrode away from the work piece. the slag to reveal the weld metal below. 28 | RAZOR TIG 200 AC/DC Manual... -
Page 29: Mma (Stick) Welding Guide
• Establishing arc characteristics • Adding alloying elements. Covered electrodes serve many purposes in addition to adding filler metal to the molten pool. These additional functions are provided mainly by the covering on the electrode. Slag Weld pool RAZOR TIG 200 AC/DC Manual | 29... - Page 30 Joint preparation will depend on the method used include sawing, punching, shearing, machining, flame cutting and others. In all cases edges should be clean and free of any contaminates. The type of joint will be determined by the chosen application. 30 | RAZOR TIG 200 AC/DC Manual...
-
Page 31: T2 Tig Torch & Spares
T2 TORCH HEAD "FLEXIBLE HEAD" See following page Collet Body UM-C-T2LBC T2/T3W LONG BACK CAP See following page Gas Lens Collet Body UM-C-T2SBC T2/T3W SHORT BACK CAP See following page Ceramic Cup UM-C-TMS 1 BUTTON MOMENTARY RAZOR TIG 200 AC/DC Manual | 31... - Page 32 CERAMIC CUP Part-No Description Nozzle Bore Size UM-C-T2C04 T2/T3W Ceramic Cup UM-C-T2C05 T2/T3W Ceramic Cup UM-C-T2C06 T2/T3W Ceramic Cup 10mm UM-C-T2C07 T2/T3W Ceramic Cup 11mm UM-C-T2C08 T2/T3W Ceramic Cup 12.5mm UM-C-T2C10 T2/T3W Ceramic Cup 16mm 32 | RAZOR TIG 200 AC/DC Manual...
-
Page 33: T2 Tig Torch Tungsten Electrodes
TUNGSTEN ELECTRODE Part-No Description TR0006-10 1.0mm x 175mm zirconiated tungsten electrode 0.8% TR0006-16 1.6mm x 175mm zirconiated tungsten electrode 0.8% TR0006-24 2.4mm x 175mm zirconiated tungsten electrode 0.8% TR0006-32 3.2mm x 175mm zirconiated tungsten electrode 0.8% RAZOR TIG 200 AC/DC Manual | 33... -
Page 34: Tig Welding Trouble Shooting
Check and change the size and or the tungsten if required Loose connection Check all connectors and tighten Earth clamp not connected to work Connect the earth clamp directly to the work piece wherever possible 34 | RAZOR TIG 200 AC/DC Manual... -
Page 35: Mma (Stick) Welding Trouble Shooting
Check the joint design and fit up, make sure the material is not too thick. Seek assistance for the correct joint design and fit up 7: Electrode welds with different or unusual arc characteristic Possible Reason Suggested Remedy Incorrect polarity Change the polarity, check the electrode manufacturer for correct polarity RAZOR TIG 200 AC/DC Manual | 35... -
Page 36: Warranty Terms
Welding Guns Of Australia Pty Ltd (‘Us’, ‘We’) warrants that the following products under UNIMIG, UNI-TIG, UNI-PLAS, UNI-FLAME, TECNA, T&R, HIT- 8SS & ROTA, supplied by Us and purchased by you from an Authorised UNIMIG, UNI-TIG, UNI-PLAS, UNI-FLAME, TECNA, T&R, HIT-8SS & ROTA Dealer throughout Australia are free of Material and Faulty Workmanship defects except for those products listed under ‘Warranty Exclusions’. - Page 37 To the extent permitted by law, our total liability for loss or damage of every kind related to the product in any way whatsoever is limited to the amount paid to the retailer by you for the product or the value of the product. No responsibility will be taken for products lost, damaged or mislaid whilst in transit. RAZOR TIG 200 AC/DC Manual | 37...
- Page 38 • Failure or any breakage caused by overload, dropping or abusive treatment or use by the customer • Repair, modifications or other work carried out on the product other than by an Authorised UNIMIG, UNI-TIG, UNI-PLAS, UNI-FLAME, TECNA, T&R, HIT- 8SS &...
-
Page 39: Notes
NOTES RAZOR TIG 200 AC/DC Manual | 39... - Page 40 Welding Guns Of Australia Pty Ltd ABN: 14 001 804 422 112 Christina Rd, Villawood, NSW 2163 Phone: 1300 864 644 Fax: (02) 9780 4244 Email: sales@unimig.com.au www.unimig.com.au © Welding Guns Of Australia PTY LTD 2019...
