Lilytech ZL-7802D Instruction Manual

ZL-7802D Humidity and Temperature Controller
Introduction
Optional PID and on/off temperature control.
Internal control resolution is 0.01℃ to reach better control
result.
Integrated SSR, with 5A rate power driving ability.
Optional external SSR-DA could drive heavier load.
With auxiliary outputs, the controller could control
incubator, climate room, warehouse, and so on.
Specification
Temperature sensor: NTC, R
Setting range: -40.0 ~ 99.9℃, 10.0 ~ 90.0%RH
Power supply: 100 ~ 240Vac, 50/60Hz
Temperature output: Integrated SSR, R5, 5A, 250Vac (resistance load)
External SSR, (Y+, Y-), 4 ~ 2mA, 12Vdc
Humidity output R2: 10A, 250Vac (resistance load)
Output R1: 7A, 250Vac (resistance load)
Output R3/R4: 3A, 250Vac (resistance load)
Working environment: -10 ~ 45℃, 5 ~ 85%RH without dew
Protection level: IP65 (Front panel only)
Case dimension: L78 x W34.5 x D71 (mm)
Drilling size: L 71 x W29 (mm)

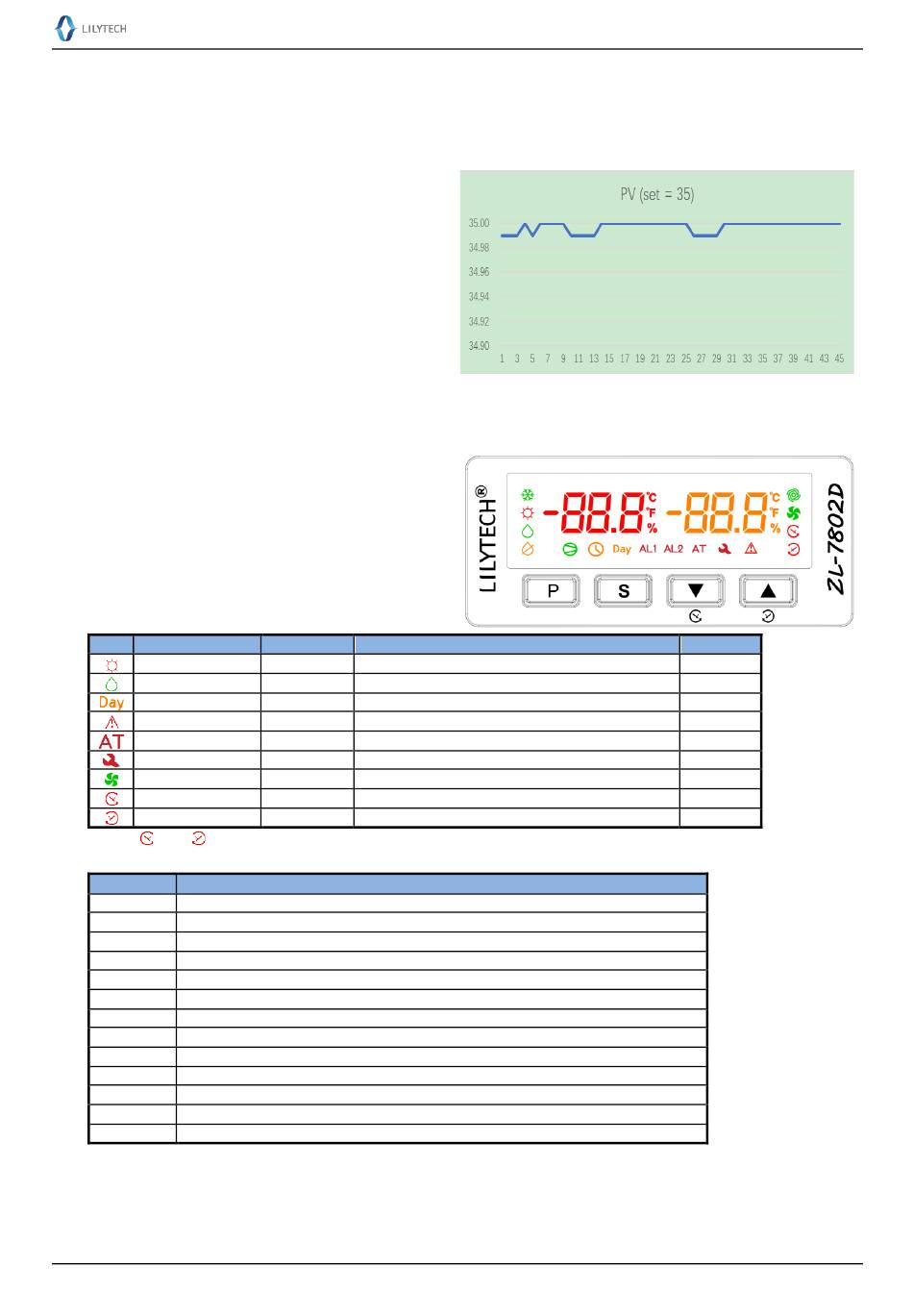

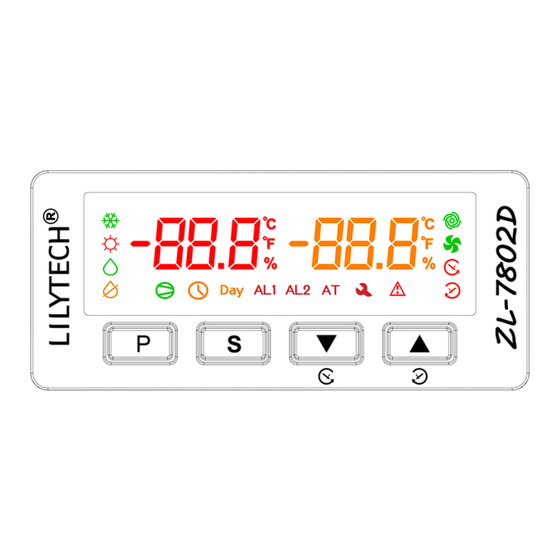

Display
Icon
Icon Function
Heating
Humidifying
Incubation days
Alarming
PID Auto Tune
Set parameter
R1 on/off
Left turning R3
Right turning R4
*. Both and blink: egg turning times has reached to set times.
Text
Display
E1 NTC sensor failure
E2 Humidity sensor failure
tHi High temperature warning
tLo Low temperature warning
HHi High humidity warning
HLo Low humidity warning
iA External digital input alarming
At1 PID auto tuning fails (There is temperature interference during tuning)
At2 PID auto tuning fails (The amplitude of temperature oscillation is abnormal)
At3 PID auto tuning fails (The periods of temperature oscillation is abnormal)
At4 PID auto tuning fails (Time out)
SUc * PID auto tuning success
UnL Restore to factory settings
*. After auto tuned, display "SUc", the controller does not control temperature now.
Press any key, the "SUc" disappears, start to PID control temperature.
Version 1.0b
=10K B =3470K
25℃ 25/50℃
On
SSRs on PID controlling (U73 = 0)
R2 on Delay protection, R2 off
---- Has incubated for set days
Alarming Alarming
Will start AT Auto tuning
---- Parameter setting
R1 timer on R1 over limit on
R3 on Start left turning, R3 on, icon blinks for 30 sec.
R4 on Start right turning, R4 on, icon blinks for 30 sec. R4 off
Remark
Page 1. Total 5 pages
Suzhou Lily Tech. Co., Ltd.
Blink Off
SSRs off
R2 off
R1 off
R3 off
