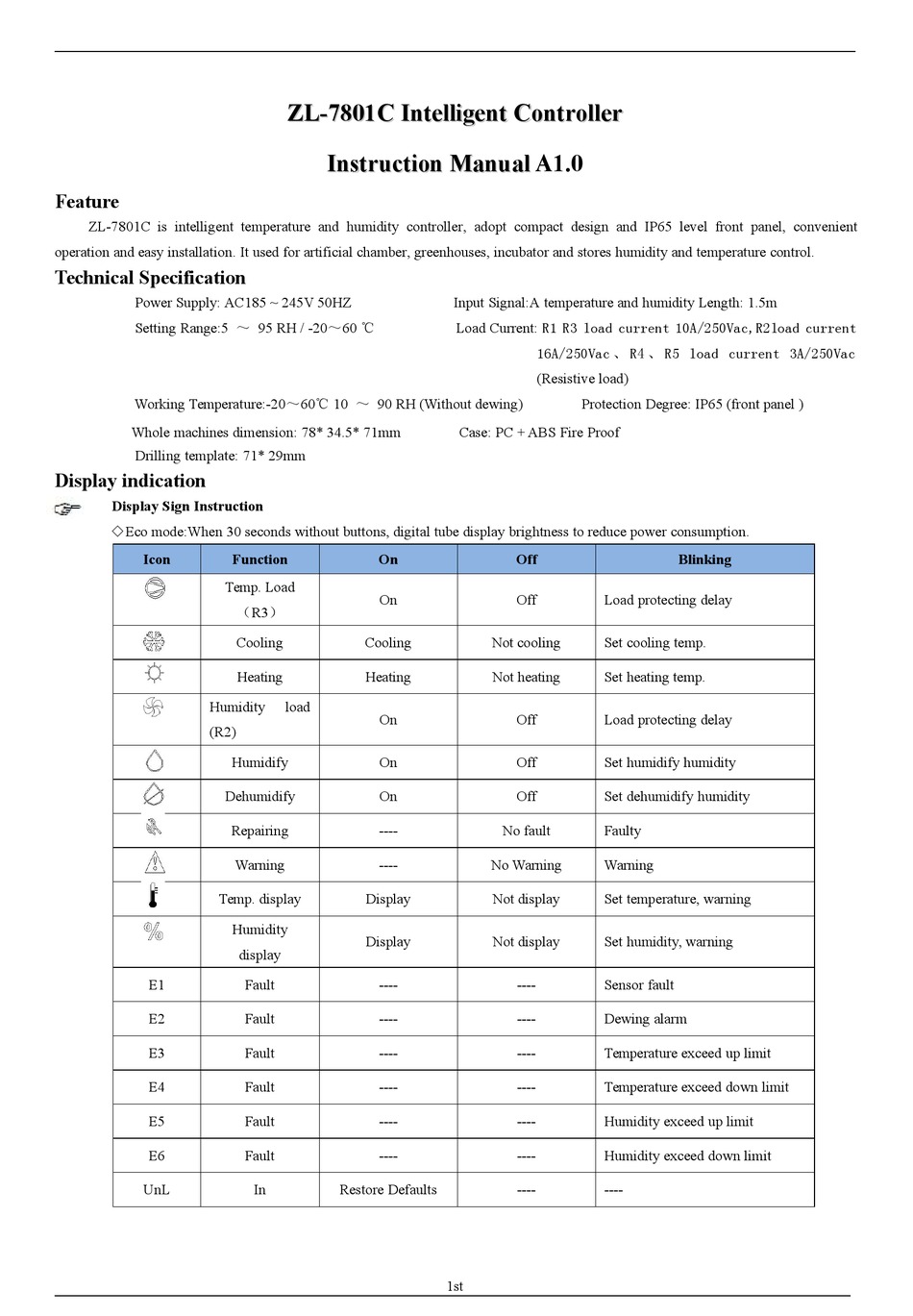

Lilytech ZL-7801C Instruction Manual And User Handbook

Feature

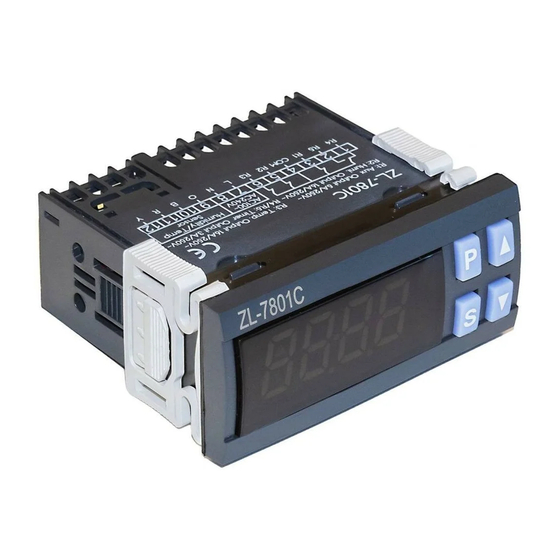

ZL-7801C is intelligent temperature and humidity controller, adopt compact design and IP65 level front panel, convenient
operation and easy installation. It used for artificial chamber, greenhouses, incubator and stores humidity and temperature control.
Technical Specification
Power Supply: AC185 ~ 245V 50HZ
Setting Range:5 ～ 95 RH / -20～60 ℃
Working Temperature:-20～60℃ 10 ～ 90 RH (Without dewing)
Whole machines dimension: 78* 34.5* 71mm
Drilling template: 71* 29mm
Display indication
Display Sign Instruction
◇Eco mode:When 30 seconds without buttons, digital tube display brightness to reduce power consumption.
Icon
Temp. Load
Humidity
(R2)
Dehumidify
Temp. display
E1
E2
E3
E4
E5
E6
UnL
ZL-7801C Intelligent
ZL-7801C Intelligent
Instruction
Instruction
Function On
On
（R3）
Cooling Cooling
Heating Heating
load
On
Humidify On
On
Repairing ----
Warning ----
Display
Humidity
Display
display
Fault ----
Fault ----
Fault ----
Fault ----
Fault ----
Fault ----
In Restore Defaults
Controller
Controller
Manual A1.0
Manual
Input Signal:A temperature and humidity Length: 1.5m
Load Current: R1 R3 load current 10A/250Vac,R2load current
16A/250Vac 、 R4 、 R5 load current 3A/250Vac
(Resistive load)
Protection Degree: IP65 (front panel )
Case: PC + ABS Fire Proof
Off
Off Load protecting delay
Not cooling Set cooling temp.
Not heating Set heating temp.
Off Load protecting delay
Off Set humidify humidity
Off Set dehumidify humidity
No fault Faulty
No Warning Warning
Not display Set temperature, warning
Not display Set humidity, warning
---- Sensor fault
---- Dewing alarm
---- Temperature exceed up limit
---- Temperature exceed down limit
---- Humidity exceed up limit
---- Humidity exceed down limit
---- ----
1st
Blinking
