Lilytech ZL-R200A Instruction Manual

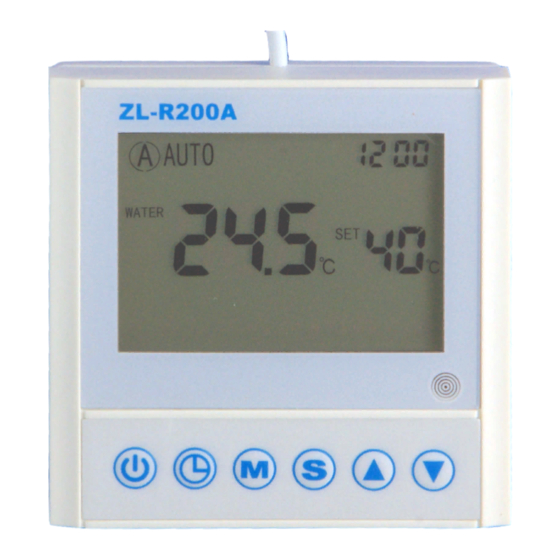

ZL-R200A Heat Pump Water Heater Controller
Main Function
Auxiliary heating function
Water flowing auditing
Ventilation pump control
Antifreeze function
Sensor failures action
Technical Specification
Sensor:
NTC 10K/3470
Set range:
10 70℃
~
Display range:
-40 130℃
~
Working temperature:
0 50℃
~
Storage temperature:
-10 60℃
~
Ambient humidity:
20 85%RH without dew
~
Power supply:
220Vac ±10% 50/60Hz
Outputs:
Compressor 30A
Heater 8A
Others 3A
Failure Code
No. Code
1 E01 Water container sensor failure
2 E02 Pipe Coil sensor failure
3 E03 Exhaustion sensor failure
4 E04 Outdoor sensor failure
5 EH Exhausting alarming
Display Indication
Icon Display
Online
Heating
Electrical heating
Outdoor fan running Outdoor fan stop
Defrosting
Key Operation
Temperature Inquiry
Under non-system parameter setting status, press
The result keeps displaying for 3 seconds.
On/Off
Keep key depressed for 3 seconds to switch between online and offline.
Instruction Manual V2.0
Failure
Not shown
Offline
Not heating
Electrical heater off
Not defrosting now
Page 1, Total 4 Pages
Auto defrost function
Auto restart function
Exhaustion temperature protection
Compressor delay and pressure protection
No. Code
6 E05 Water flow warning
7 E06 High/low pressure input warning
8 E09 Communication failure
9 AdF Filling refrigerant
Restore password to "11"
10 UnL
Icon Displaying
Compressor running Compressor stop
Pump running
Four valves on
Locked
key to check all sensors' temperature consecutively.
Suzhou Lily Tech. Co., Ltd.
Failure
Not shown
Pump stop
Four valves off
Unlocked
