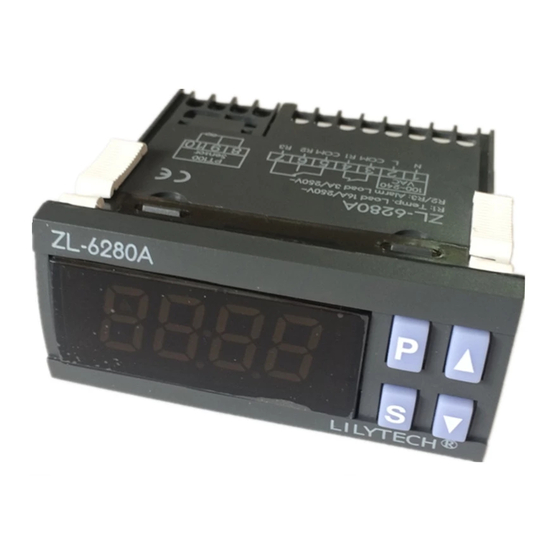

Lilytech ZL-6280A Instruction Manual

Introduction

ZL-6280A makes use of PT100 sensor for heating control of high temperature, with front panel water proof level IP65.
It is suitable to control oven, water heater, and other objects between 2～400℃.

Main Function

Sense and display temperature to 490℃
Temperature control to 400℃
Temperature output (R1) delay protection for load

Specification

Temp. output, R1: 16A, 250Vac; R2/R3, 3A, 250Vac. (the parameters are under pure resistance loads)
Sensor: PT100 (excluded in package of selling)，For 2 wire pt100, connect to terminal 8 and 10!
Set / control range: 2 ~ 400℃, resolution: 1℃
Display range: -10 ~ 490℃, resolution: 1℃
Accuracy: 1.5℃
Working: -20 ~ 45℃, 5 ~ 90%RH without dew
Dimension: W78 x H34.5 x D71 (mm)
Installation drilling: W71 x H29 (mm)
Case materials: PC + ABS fire proof
Protection level: IP65 (Front side only)
Power supply: 100 ~ 240Vac, 50/60Hz

Keypad and Display

Icon Function
Temperature output R1
Warn
Temperature display
8888 Hint
LL Failure
Failure
HH
Failure
EL
Failure
EH

Operation

Set Set-Point

Press〖S〗to enter into the set status. The current set-point value displays.
Press〖▲〗or〖▼〗 to set the value (keeping depressed can fast set).
The status will exit, and the setting will be saved, if no key operation within 6 seconds.
Factory default set is 100℃. Range is from LS to HS (see parameter code table below).

Set System Parameters

Keep〖P〗depressed for 6 seconds to enter into parameter setting status.
Press〖P〗to select the parameter code (see parameter code table below). Press〖▲〗or〖▼〗to set the value.
The status will exit, and the settings will be saved, if no key operation for 6 seconds.

Parameter Code Table

Code
LS Low temperature warning
HS High temperature warning
Pt Delay protection
CA Calibration
d Hysteresis
www.suzhoulily.com.cn/en
ZL-6280A Temperature Controller
Instruction Manual A1.0
R1 energized
----
Displaying temp.
Restoring to factory default settings
----
----
----
----
Function
Warning output (R2, R3)
Over temperature and sensor failure warning
Buzzing warning
On
Range
0 ~ (set-point – hysteresis - 1)
(set-point + hysteresis) ~ 415℃
0 ~ 3 minute
-15 ~ +15℃
1 ~ 15 ℃
Suzhou Lily Tech. Co., Ltd.
Blinking
R1 is under delay protecting
Warning
Warning
----
Sensor short
Sensor open
Low temperature warning
High temperature warning
Factory Default Set
Page 1, Total 2 Pages
0℃
415℃
0 minute
0℃
5℃
