Lilytech ZL-7816A Quick Manual

Z L
Z L

Specification

Power supply:
Input:
Sensor precision:
Setting range:
Output:
Working environment:
Power consumption:

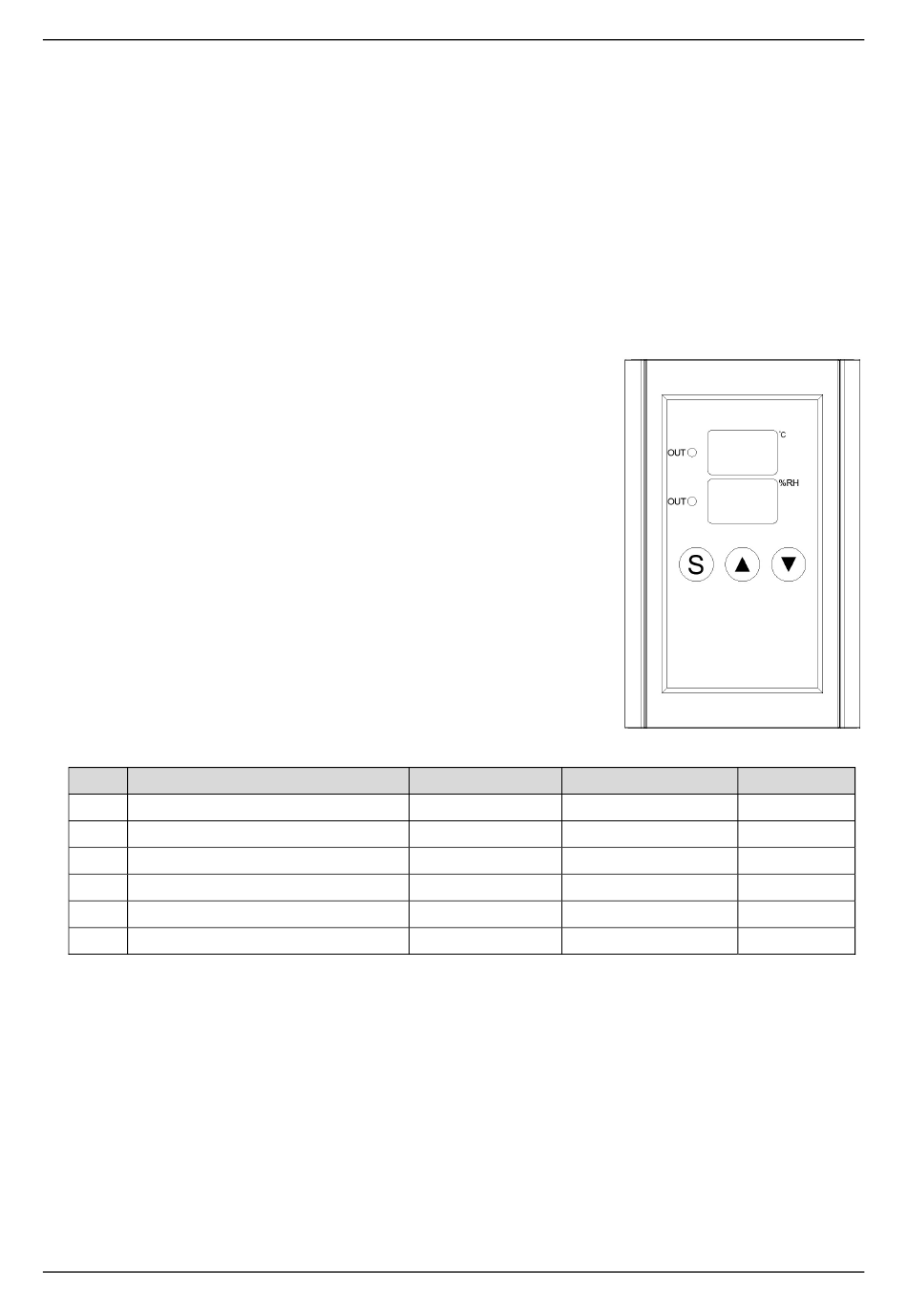

Display

When the sensor is not connected well, or fails, display shows "--.-".
When the temperature output is energized, the up LED "out" is on;
When the humidity output is energized, the bottom LED "out" is on.

Setting Operation

Keep〖S〗depressed for 2 seconds to enter into set status:
The up window displays the parameter code.
The bottom window displays the value of the code.
Press〖S〗to select the code: S01->S02->SC1->S03->S04->SC2.
Press〖▲〗or〖▼〗 to set the value (keep depressed make fast set).
Keep〖S〗depressed for 2 seconds to exit, and the settings are saved.
Note: The status will exit if no key operation for 30 seconds, and the settings will be saved.
Code
SO1 Temperature output energized
SO2 Temperature output de-energized
SC1 Temperature calibration
SO3 Humidity output energized
SO4 Humidity output de-energized
SC2 Humidity calibration
Control Function
Temperature control
If SO1 = SO2, there will be no temperature control function.
If SO1 < SO2, work in heating mode:
When Troom ≤ SO1, temperature output energized;
When Troom ≥ SO2, temperature output de-energized.
If SO1 > SO2, work in cooling mode:
When Troom ≥ SO1, temperature output energized;
When Troom ≤ SO2, temperature output de-energized.
www.suzhoulily.com .cn
- 7 8 1 6 A Humidity and Temperature Controller
- 7 8 1 6 A
Version A1.01a
12Vac, or 12Vdc
One humidity and temperature sensor, wire length 1.5 meters, system will be
stable when the wire length is up to 50 meters
Humidity ±3% RH@25℃; Temperature ±1%@25℃
Humidity 0.0 ～ 99.9% RH; Temperature 0.0 ～ 80.0
Every output ≤ 7A (250Vac, pure resistance)
-10 ～ 45 ; ≤ 90% RH without dew
℃
2W
Function Set Range
0.0 ～ 99.9℃ Set point for on
0.0 ～ 99.9℃ Set point for off
-5.0 ～ 5.0℃
0.0 ～ 99.9% RH Set point for on
0.0 ～ 99.9% RH Set point for off
-5.0 ～ 5.0% RH
Suzhou Lily Tech. Co., Ltd.
℃
Remark Factory Set
22.0
20.0
0.0
10.0
20.0
0.0
Page 1. Total 3 pages
