Summary of Contents for Safety Track ST-201

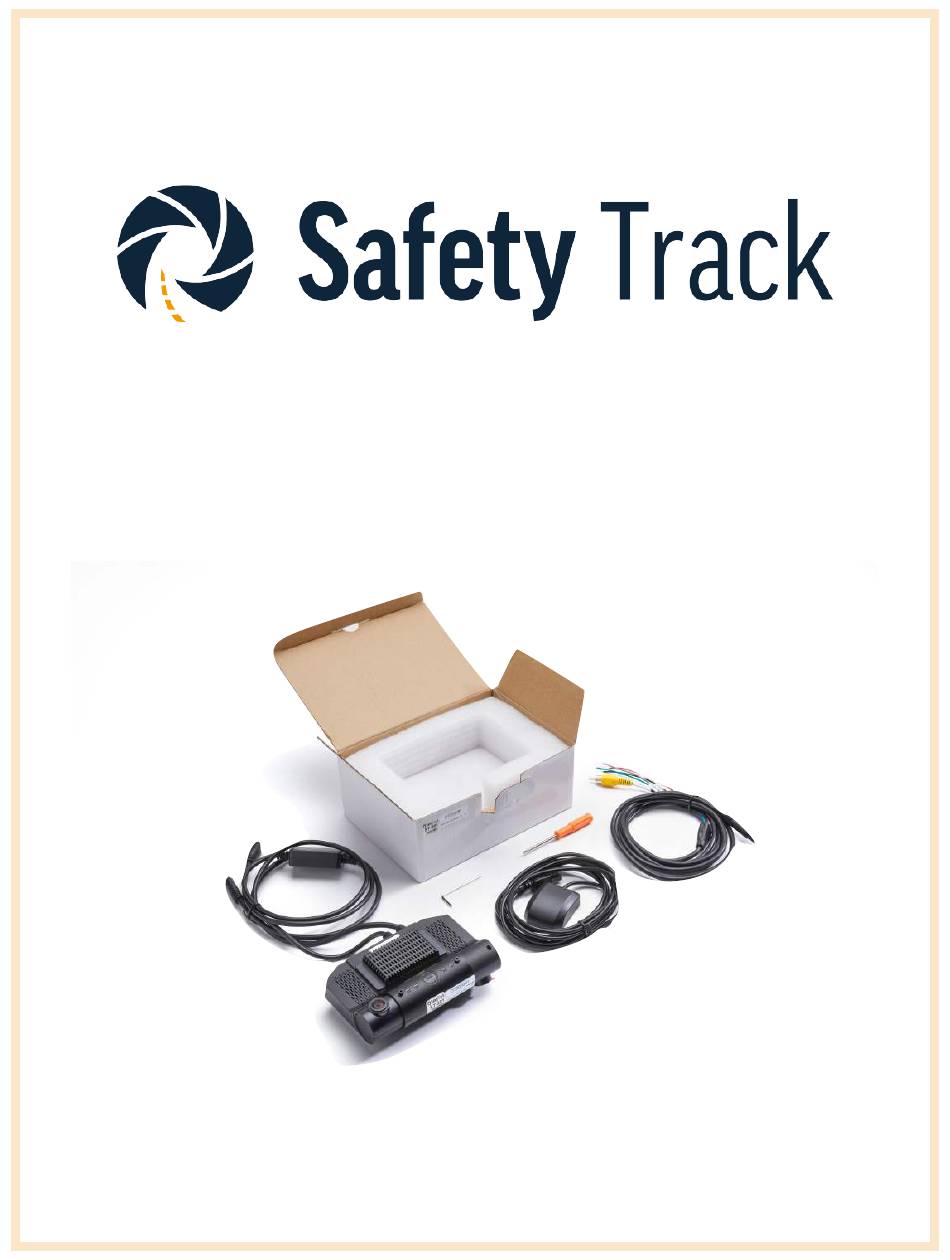

- Page 1 ST-201 Installation and Operation Manual A detailed guide on how to install and operate your new ßeet management system...
-
Page 2: Table Of Contents
Camera Layout How to Remove SD Card This is a step by step guide that will walk you through installing the ST-201. Please follow each set otherwise your system may not work properly. If you have any questions regarding the installation or need professional installation, please contact our support team at support@safetytrack.net or dial... -
Page 3: Whats In The Box
¥ NOTE: Any modiÞcations to the device or software outside of company standards without company approval are not a responsibility of Safety Track and will void the warranty. Before using the 3G/4G product, make sure you have read the following safety precautions ¥... -
Page 4: Installation
¥ Prepare for where you want to place the Dash Cam and GPS Antenna. ¥ We recommend placement of the ST-201 Dash Cam on the windshield, under the rear view mirror (shown in the image to the right). ¥ The GPS Antenna is normally placed with sightline to the sky on the dashboard (Circled in red). - Page 5 ¥ Tape back the wires that arenÕt used. ¥ Once your power connections have been made, connect the power harness adapter to the power harness pigtail (Cable 1.) stemming from the Dash Cam. Tape to ensure security of the connection. ¥...
- Page 6 Since your camera should be connected to power and to the network by now, you can test mount and aim the cameras by using the Safety Track Fleet App. Mount the camera by peeling away the sticker on 3M adhesive on top of the camera.
-
Page 7: Speciþcations
SpeciÞcations Forward facing camera 1080P CMOS Sensor Accelerometer- In car camera 1080P CMOS Sensor Forward facing camera view angle approx.130¡ Camera view angle (Diagonal)- In car camera view angle approx.120¡ (a). Active mode: 12V Input, 0.75A (b). Sleep mode: DC12V Voltage input, 2.5mA (c). - Page 8 (a). Class 10 micro-SDHC /SDXC Card 8GB or above recommended. Otherwise, the recording cannot proceed smoothly Storage (b). Micro SD slot support 512GB storage max. Dual storage slot support 1TB Forward facing camera resolution 1920x1080 up to 30fps @ NTSC & 25Fps @PAL Recording In car camera resolution...
- Page 9 Record Image, date and time, sound, G-sensor, content (a). SpeciÞc format for software player Recording format (b). H.265 compression Microphone Built in high sensitive microphone Time calibration by GPS built in Time setting calendar clock takes over if no GPS signal.
- Page 10 (a). VIDEO OUT：TV-Out (1 Vp-p composite video output, 75 ohms) (b). Force Record Button: For emergency recording. Output/ (Trigger Flash LED) input device (c). REC: Recording indicator (Flash LED means SD Error) (Lights on means recording) (d). GPS: Recording indicator...
- Page 11 (e). NET: NET indicator (Flash LED means Wireless network is not ready) (Lights on means wireless network already) Output/input device (f). WiFi：WiFi indicator (Flash LED means WIFI network is not ready) (Lights on means WIFI network ready) (a). 2 Meter power cable (b).
-
Page 12: Camera Layout
Camera Layout: 1. Front Camera 2. In-Cab Camera 3. Front Camera Adjustment Screw 4. In-Cab Camera Adjustment 5. Screw 6. Power 7. GPS 8. Microphone 9. Speaker 1. 3M double sided tape 1. Micro SIM card & Micro SD Card 2. -
Page 13: How To Remove Sd Card
How to Remove SD Card On the forward facing camera side of the Dash Cam you will Þnd the location of the door protecting the SD Card. Use the orange screwdriver key tool (pictured below) to unlock and open. Arrows indicate which direction to turn to lock and unlock. Push SD Card in till you hear a double ÒClickÓ...
