  • Page 1 PSD Technical Content Review Summary Project Title: PSD - Easy Clean Bkpk UIs Details of Request: Technical Content MIRANDA DE LA VICTORIA Contact: Today’s Date: 12/5/2022 Date Needed: 2022-12-09 Requestor: Jimmy Wong Canada Use Pre-Approval: Collaborative Review: Management Scott Larson Review: Legal Review: Lisa Brihn...
  • Page 2 98-0060-0223-6_4 TR-600 Series U.I. Activity Summary Initials Date Comments 10-4-16 Updated format. Included markings for California Energy Directive. Updated warnings and format to match other Versaflo User Instructions. Updated Technical Specifications.
  • Page 3 TR-600 Series Versaflo™ Powered Air Purifying Respirator (PAPR) Assembly User Instructions for 3M™ Versaflo™ Powered Air Purifying Respirator TR-600 Belt Mounted Assemblies. IMPORTANT: Before use, the wearer must read and understand these User Instructions. Keep these User Instructions for reference.

  • Page 4: Table Of Contents

    In Canada, CSA standard Z94.4 requirements must be met and/or requirements of the applicable jurisdiction, as appropriate. Misuse may result in injury, sickness or death. For proper use, see supervisor, User Instructions, or call 3M PSD Technical Service in USA at 1-800-243- 4630 and in Canada at 1-800-267-4414.

  • Page 5: Foreword

    Versaflo™ Family of respiratory protection products. The TR-600 PAPR assemblies are designed to be used with the 3M headgear listed on the approval label to form a complete National Institute of Occupational Safety and Health (NIOSH) approved respiratory system. When used in accordance with its NIOSH approval, TR-600 PAPR assemblies help provide respiratory protection against certain gases, vapors and particulates.

  • Page 6: List Of Warnings And Cautions

    4. Failure to follow these User Instructions may reduce respirator performance, overexpose you to contaminants, and may result in injury, sickness, or death. a. Do not use with parts or accessories other than those manufactured by 3M as described in these User Instructions or on the NIOSH approval label for this respirator.

  • Page 7: Limitations Of Use

    The recommended operating altitude range is -328 feet (-100 meters) to 16404 feet (5000 meters). For use in elevations outside this range, contact 3M Technical Service. Before use in environments subject to high magnetic fields, contact 3M Technical Service. RESPIRATOR PROGRAM MANAGEMENT Occupational use of respirators must be in compliance with applicable health and safety standards.

  • Page 8: Approvals, Cautions & Limitations

    The product should be inspected before each use following the procedures in the Inspection section of these User Instructions. 1. The 3M™ Battery Packs TR-630, TR-632, chargers, and the TR-600 PAPR assemblies are not intrinsically safe. Do not use in flammable or explosive atmospheres. Doing so may result in serious injury or death.
  • Page 9 There are two battery charging options for 3M™ Versaflo™ Powered Air Purifying Respirator TR-600 Batteries. The 3M™ Battery TR-641N kit includes (1) 3M™ Charger Cradle TR-640 and (1) 3M™ Power Supply TR-941N. The 3M™ 4-Station Battery Charger Kit TR-644N includes (1) 3M™ 4-Station Battery Charger Base/Power Supply TR-944N, and (4) 3M™...

  • Page 10: Component Description & Assembly

    4. Battery charging: Ensure the gold electrical contacts on the battery and charger are clean and free of debris. Insert the battery pack into the 3M™ Battery Charger Cradle TR-640 by sliding the back end of the battery pack in first. Set front end down and click into place (Fig. 2), charging will begin. Refer to Fig.
  • Page 11 The effective use time (service life) of a chemical cartridge (gas and vapor cartridge) will vary depending on your specific environment. The user must determine a service life period based on their specific work conditions. The 3M™ Service Life Software (www.3m.com/workersafety) may be able to assist user in this calculation.
  • Page 12 NOTE: Use the specified filter cover for the filter/cartridge. See “Specifications” section for correct pairing. • Hold the filter cover so it faces down (Fig. 4-1). • (If required) Insert the metal mesh spark arrestor/prefilter into the cover, ensuring the cutouts are aligned properly (Fig.
  • Page 13 Fig. 4 – Installing filter cover, spark arrestor, and prefilter Fig. 5 - Latching the filter/cartridge 3. Removal of the filter/cartridge and cover (in non-hazardous locations only): o Turn the unit off. Do not remove or replace filter/cartridges while the motor/blower is running. o Hold the unit downwards so the back (belt side) faces you and the filter and cover face down on a flat surface (Fig.

  • Page 14: Battery Pack Charging & Installation

    4 bars light indicating 60-80% of original capacity is available). Fig. 7 - Battery charge status check Install and Remove the 3M™ Versaflo™ Powered Air Purifying Respirator TR- 600 Battery Packs 3M™ Battery Pack 3M™...

  • Page 15: Belts And Backpack

    Fig. 8 - Installing battery BELTS AND BACKPACK The 3M™ Versaflo™ Powered Air Purifying Respirator TR-600 is approved for use with either a belt or backpack. Belts The TR-600 is approved for use with two premium belt options: •...
  • Page 16 Fig. 9 - Installing belt Backpack 3M™ Backpack BPK-01 with the 3M™ Backpack Adapter TR- 655 may be used in place of the belt (Fig. 10). Refer to the BPK-01 and TR-655 User Instructions for more information. Fig. 10 - 3M™ Backpack BPK-01...

  • Page 17: Breathing Tube

    Headgear options. Refer to the headgear User Instructions for information on attaching and donning the headgear to be used, and to determine assigned protection factor (APF) for the complete respiratory protection system. Consult 3M Technical Data Bulletin #175 for additional information on APFs and supporting test data. OPERATING INSTRUCTIONS Power 3M™...
  • Page 18 Power 3M™ Versaflo™ Powered Air Purifying Respirator TR-600 off: o Press and hold the smaller, blue power button for 2 seconds (Fig. 13-1). Fig. 13 - Motor/blower User Interface 1) On/Off button, 2) Flow control button, 3) Airflow setting indicator,...

  • Page 19: Inspection

    Failure to follow these User Instructions may reduce respirator performance, overexpose you to contaminants, and may result in injury, sickness, or death. a. Do not use with parts or accessories other than those manufactured by 3M as described in these User Instructions or on the NIOSH approval label for this respirator.
  • Page 20 TR-600 is not delivering a minimum of 6 cfm (170 lpm), exit the contaminated area, see your supervisor, and recheck the airflow with the 3M™ Airflow Indicator TR-971. The airflow is checked with your current filter installed.
  • Page 21 Remove your hand from the end of the breathing tube. In less than approx. 30 seconds, the audible alarm and the flashing red LED should both stop when the motor returns to the selected speed. NOTE: If the low airflow alarm fails to sound, do not use the unit. Contact 3M Technical Service.

  • Page 22: Entering And Exiting The Contaminated Area

    CLEANING, STORAGE AND DISPOSAL The 3M™ Versaflo™ Powered Air Purifying Respirator TR-600 Assembly should be cleaned and inspected after each use and prior to storage. Refer to 3M Technical Data Bulletin #222 Cleaning and Maintenance of TR-600 for additional guidance.
  • Page 23 Remove the belt from the motor/blower by lifting the bottom of the belt over the belt locking tabs and sliding the belt down. The 3M™ Easy Clean Belt TR-627 is made of a non-porous and closed-cell material and can be wiped down or submersed in a soapy water solution. The 3M™...
  • Page 24 Storing chemical cartridges in a clean airtight container, attached to or removed from the blower body, may help maintain remaining service life. For additional information on cartridge reuse, refer to 3M Technical Data Bulletin #142 – Reuse of Organic Vapor Chemical Cartridges.

  • Page 25: Technical Specifications

    = Do not throw battery in trash. Dispose of product as directed by local regulations. = Do not throw electronic waste in trash. Dispose of product as directed by local regulations. TECHNICAL SPECIFICATIONS Consult the 3M™ Versaflo™ Powered Air Purifying Respirator TR-600 Technical Specifications sheet for additional specifications. Airflow Nominal 6.7 cfm (190 lpm): Standard flow...

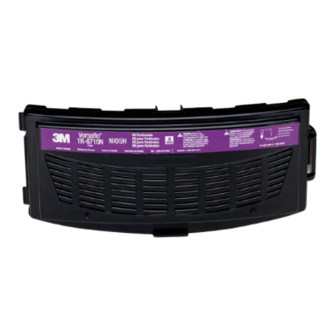

  • Page 26: Tr-600 Filter And Cartridge Options With Covers

    3M™ Versaflo™ Respirator Product returned to 3M in accordance with the instructions below and found by 3M to have been defective at the time of purchase or during the warranty period as applicable. This Warranty does not apply to any parts that have been misused, altered or had repair attempted, or have been subjected to abuse, accidental or otherwise.

  • Page 27: Limitation Of Liability

    LIMITATION OF LIABILITY Except as provided above, 3M shall not be liable or responsible for any loss or damage, whether direct, indirect, incidental, special or consequential, arising out of sale, use or misuse of 3M Versaflo products, or the user’s inability to use such products. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE.
