Garmin FUSION Panel-Stereo Spacer Installation Instructions

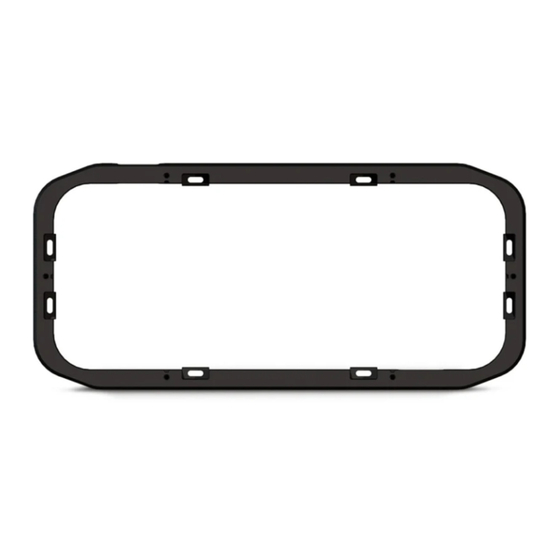

FUSION Panel-Stereo Spacer
®
WARNING
Failure to follow these warnings and cautions could result in personal injury, damage to the vehicle or vessel, or
poor product performance.
This device must be installed according to these instructions.
Disconnect the vehicle's or vessel's power supply before beginning to install this product.
CAUTION
Continuous exposure to sound pressure levels over 100 dBA may cause permanent hearing loss. The volume is
typically too loud if you cannot hear people speaking around you. Limit the amount of time you listen at high
volume. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked.
Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite side of the surface.
It is strongly recommended that you have your audio system installed by a professional installer to ensure
optimum performance.
You must read all installation instructions before beginning the installation. If you experience difficulty during
the installation, go to www.fusionentertainment.com for product support.
What's In the Box
• Mounting spacer
• Eight 6-gauge, self-tapping stainless steel screws
• Six M4, self-tapping black screws
Tools Needed
• Electric drill
• Drill bit (size varies based on surface material)
• Screwdriver
• Appropriate saw or utility knife to cut surface material
• Marine sealant (optional)
NOTE: If you use the mounting spacer, you must use the six black screws supplied with the mounting spacer to
mount the stereo to the mounting spacer. Do not use the six stainless steel screws supplied with the FUSION
Panel-Stereo.
NOTE: For customized installations, additional tools and materials may be needed.
FUSION Panel-Stereo Spacer Orientation
You can use the spacer cutout to run the stereo cables over the top of the installation surface or through a hole
in the installation surface.
If you route the cables through a hole in the installation surface, you can rotate the spacer 180 degrees to hide
the spacer cutout from below.
March 2018 GUID-93B219F6-2955-4A1D-AC32-38DCF1B7E2C6 v1
