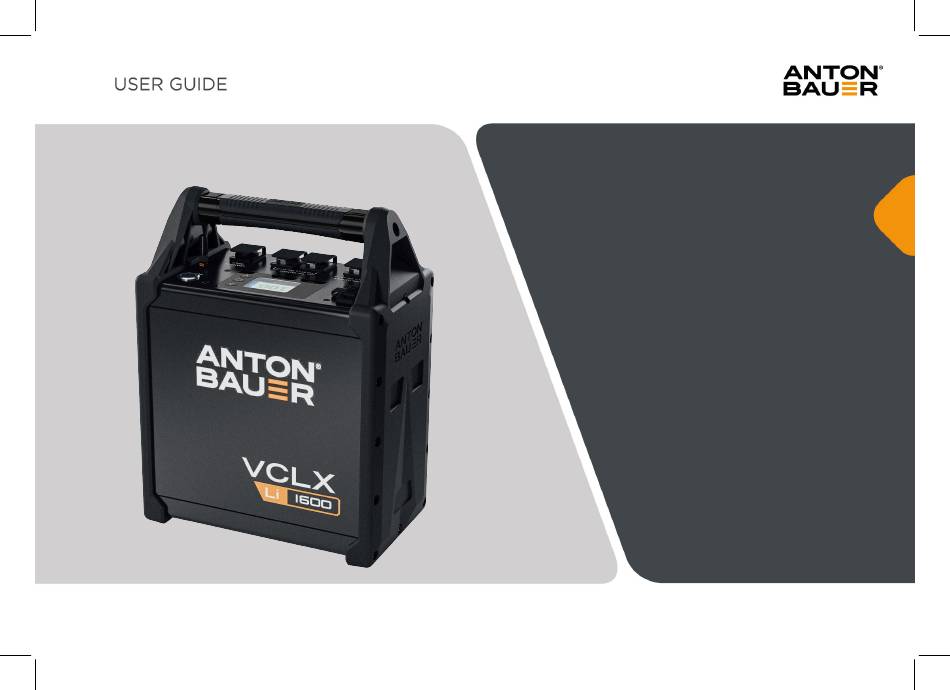

- Page 1 VCLX LI Publication date 07/25/2024 Part No. 8675-0175...
- Page 2 Copyright Copyright © 2024 All rights reserved. Original Instructions: English All rights reserved throughout the world. No part of this publication may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of Videndum Plc.
-
Page 3: Table Of Contents
Table of Contents Safety ............................... 5 Warning Symbols Used in these Instructions . - Page 4 VLCX LI ............................21...
-
Page 5: Safety
Anton/Bauer chargers. Refer servicing to qualified service personnel. Full Documentation This Quick-Start Guide will provide you with a brief overview of the key features and functionality of the VCLX LI. For more detailed... -
Page 6: Operation
Charging Warning Special precautions and handling instructions are Danger The VCLX LI Battery can only be charged with the VCLX contained in this user guide and should be strictly adhered to for 2 charger. Do not attempt to charge on non-Inter Active chargers safe and reliable operation. -
Page 7: Storage
Safety Storage Caution Charge batteries at room temperature. In warm climates keep chargers in air conditioned rooms for best performance. Caution Batteries should be stored in a fully charged state with the button in the OFF position to minimize the self-discharge. The battery will "wake up"... -
Page 8: Technical Specifications
Technical Specifications Technical Specifications Battery Capacity 1642Wh Weight 25.5 lbs (11.56 kg) Chemistry Lithium-Ion Fleet Management Yes, Wi-Fi Included Charge Time (To Display 2.4” LCD 8 hours full) Operating Temp 23 to 95°F / -5 to 35°C Output Voltage Range - Charge 5V (USB), 28V or 48V (Regulated) Operating Temp... -
Page 9: Dimensions
Technical Specifications Dimensions... -
Page 10: Interface Layout
Interface Layout Interface Layout Power Button Status Light • Solid Blue - Indicates System Idle State (or Powering Load) • Solid Green - Fully Charged / Optimization Cycle Complete / Ready to use • Flashing Green - Optimization Cycle in Process •... -
Page 11: Charging
The Anton/Bauer VCLX 2 Charger features magnetic connectivity. Place the Charger with the connection pointing upwards on one of the sides of the VCLX LI. Use the standard IEC Cable, which comes with the VCLX 2 charger, to plug it to a mains outlet. -
Page 12: Software Interface Layout
Software Interface Layout Software Interface Layout Fuel gauge (Shows % when no device is attached; shows remaining runtime in hours and minutes when device is attached) Report Indicator USB Indicator Wifi Status Up Button - Increase a value or navigate Upwards Settings / Enter / Save / Back Button Down Button - Decrease a value or navigate... -
Page 13: Icon/Symbol Explanation
Software Interface Layout Icon/Symbol explanation 4-Pin XLR Status - Will turn green when a device is attached to this port. Settings - Enter the basic settings menu, which includes Firmware Info, Fault Info, LCD Settings and the 28V/48V Toggle Up Button - Increase a value or navigate upwards Down Button - Decrease a value or navigate downwards Enter Button - Enter selection, Save Value Back Button - Cancel or sends you back to the sub screen. -
Page 14: Basic Operation
Now use any of the four outputs (3) to power any device. As soon as a draw is attached to the VCLX LI, the output icon will turn green and the remaining runtime will show in minutes on... -
Page 15: Menu Structure
Menu Structure Menu Structure Basic Menu Firmware Info Display the current Firmware installed on the VCLX LI Fault Info In case of any Fault, the relevant info will be displayed. LCD Settings Adjust the brightness of the LCD screen, as well as adjusting the "Idle Off"... -
Page 16: Advanced Menu
Menu Structure Advanced Menu 10. Home Brings you back to the home-screen. System Info View your System Info like Serial Number, FCC, Health and Cycles. System Settings Enable/disable the users’ ability to toggle between 28/48V in the ‘Basic Menu’. If this feature is disabled, then the unit will only have a 28V output. -
Page 17: Pin Code
PIN Code PIN Code Advanced Settings are only available for the owner In the Advanced Settings menu select "Set Unlock Pin" by using the up and down buttons and confirm with the of the battery. To secure them you will need a PIN enter button code to access those. -
Page 18: How To Setup Wifi
• User: VCLXLI • Password: AntonBauer155 To use the Wifi Module in the VCLX LI, you will need to create a Now fill in your WiFi information and FTP Details and press config file which contains your WiFi information, as well as FTP "Generate File". - Page 19 How to setup WiFi Insert the USB drive into the USB Port of the VCLX LI. Power on You will receive information about the SSID which the battery the battery until the import process is complete. The Battery is connected to, as well as the FTP Server info. The WiFi...
-
Page 20: Warnings And Errors
Warnings and Errors Warnings and Errors Notification Classification Solving If a charging error, then remove charger and re-insert. Power Cycle Unit To Clear Error. Charge Error Error If fault continues call service. Charging Paused - Allow Time For Pack(s) To Cool. Charge Warning Warning Charging Will Resume Automatically... -
Page 21: Declarations
Declarations Declarations VLCX LI UK Declaration of Conformity EU Declaration of Conformity Videndum Production Solutions Ltd. declares under our sole responsibility that the product detailed in this manual conforms with all relevant Videndum Production Solutions Ltd. declares provisions of the following UK Regulations: under our sole responsibility, supported by Videndum Production Solutions GmbH - our •... - Page 22 Declarations FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
- Page 23 Declarations Environmental considerations European Union Waste of Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC) This symbol marked on the product or its packaging indicates that this product must not be disposed of with general household waste. In some countries or European Community regions separate collection systems have been set up to handle the recycling of electrical and electronic waste products.
- Page 25 Published by Videndum Production Solutions Ltd. Email: publications@videndum.com Copyright 2024 - Videndum Production Solutions Ltd. All rights reserved antonbauer.com...
