Electronic speed controller

Advertisement

Quick Links

EN

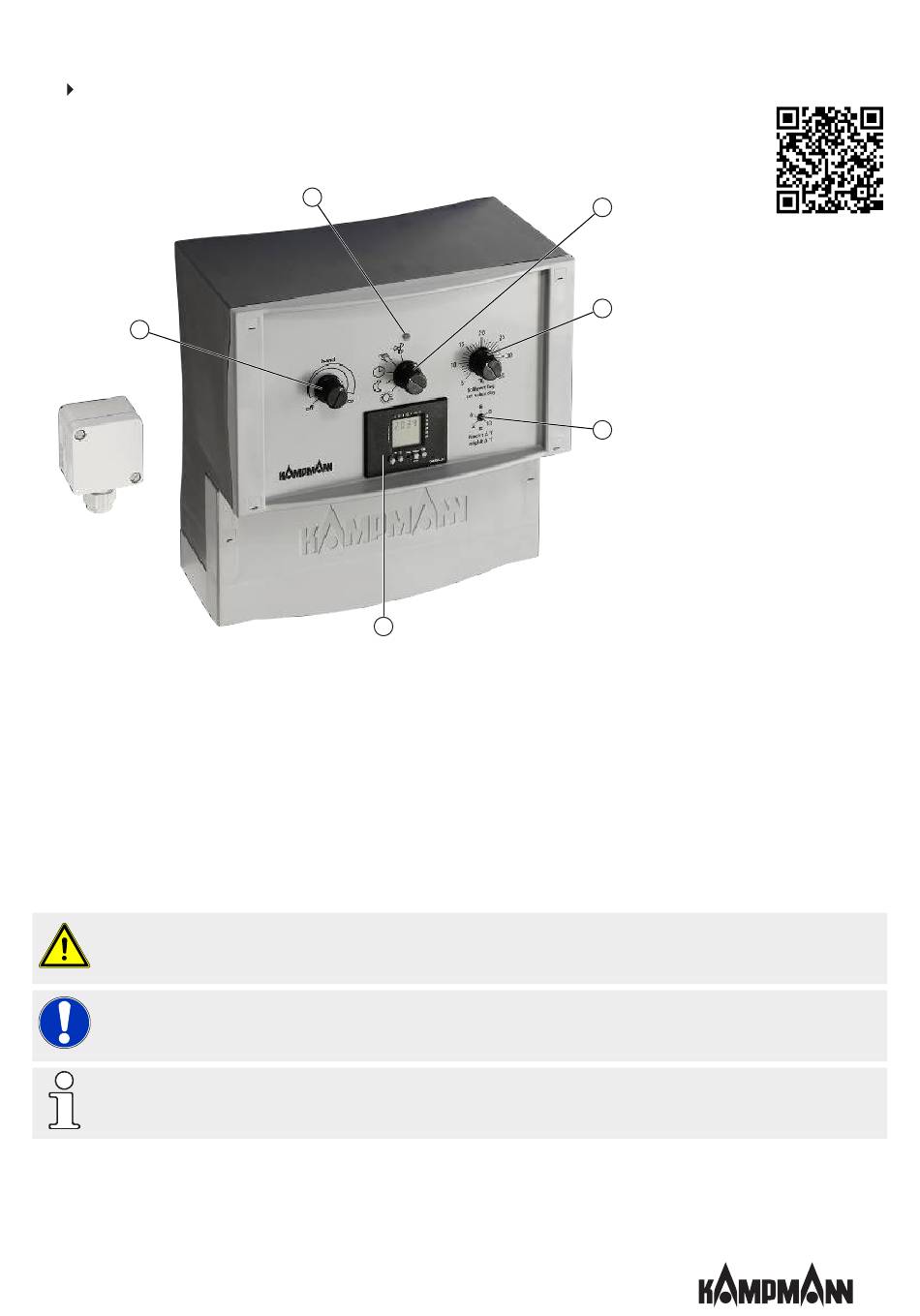

Assembly instructions
1
Overview
5
Electronic infinitely variable speed controller, type 30515
2
Brief description
The electronic stepless speed controller 0 - 10 V with integrated digital timer and room temperature control is suitable for controlling ventilation units.
3
General
3.1
About these instructions
These instructions ensure the safe and efficient handling of this equipment. These instructions form an integral part of the equipment and have to be kept in the direct vicinity of the equipment and
available to personnel at all times.
All personnel must have carefully read through these instructions prior to commencing all work on the equipment. A fundamental prerequisite for safe working is compliance with all the stated
safety instructions and other instructions contained in this manual.
In addition all local occupational health and safety at work regulations apply, as do general safety provisions governing the use of the equipment.
Illustrations in this guide are intended to provide a basic understanding and may differ from the actual model.
Ongoing tests and further developments may result in small variations between the unit supplied and the instructions.
3.2
Explanation of Symbols
WARNING!
This combination of symbol and signal word indicates a possible hazardous situation.
IMPORTANT NOTE!
It represents a potentially hazardous situation, which could lead to damage to property or for a measure to optimise workflows.
IMPORTANT NOTE!
This symbol highlights useful hints, recommendations and information for efficient and trouble-free operation.
SAP 1248327 07/24
2
1
Electronic speed controller, Type 30515
Assembly, installation and operating instructions
Kampmann GmbH & Co. KG
Friedrich-Ebert-Str. 128-130
49811 Lingen (Ems)
T: +49591/7108 0
E: info@kampmann.de
www.kampmann.de
6
3
4
1
Digital timer
2
Indicator light
3
Day temperature setting
4
Night temperature setting
5
Speed controller
6
Operating mode selector switch
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kampmann 30515

  • Page 1 Day temperature setting Night temperature setting Speed controller Electronic infinitely variable speed controller, type 30515 Operating mode selector switch Brief description The electronic stepless speed controller 0 - 10 V with integrated digital timer and room temperature control is suitable for controlling ventilation units.
  • Page 2: Technical Data

    Electronic speed controller, Type 30515 Assembly instructions Safety Correct use Intended use of the unit also includes adherence to these instructions. Any use beyond or other than the stated intended use is considered as misuse. Any modification to the unit or use of non-original spare parts will cause the expiry of the warranty and will invalidate the manufacturer’s liability.
  • Page 3: Installation And Wiring

    Electronic speed controller, Type 30515 Assembly, installation and operating instructions Installation and wiring Installation CAUTION! Risk of injury from sharp metal housing! The inner metal of the casing can have sharp edges. Wear suitable protective gloves. Take into consideration the IP class of the controller (see "Technical data") when selecting the position of the unit.
  • Page 4: Electrical Connection

    Electronic speed controller, Type 30515 Assembly instructions Electrical connection Image section Connection terminals Terminal Description Connection supply voltage 230 V AC / 50 Hz Valve actuator connection 230 V Fan connection: Alternative supply voltage for the fan Fan fault signal connection Connection of digital inputs: Input 24 V (max.
  • Page 5 Electronic speed controller, Type 30515 Assembly, installation and operating instructions Image section Connection terminals Terminal Description Frost protection connection (optional) (jumper inserted at the factory) Operating message output: Floating contact 24 V AC/ DC - 230 V AC 4(2) A...
  • Page 6: Inputs And Outputs

    Electronic speed controller, Type 30515 Assembly instructions Inputs and outputs Digital inputs External enable Enable Input DI1-GND closed No enable Input DI1-GND open Switchover heating/cooling Heating Input DI2-GND open Cooling Input DI2-GND closed Condensate alarm Fault Input DI3-GND open No fault...
  • Page 7 Electronic speed controller, Type 30515 Assembly, installation and operating instructions VERLEGEPLAN_30515.pdf...
  • Page 8 Electronic speed controller, Type 30515 Assembly instructions...
  • Page 9 Electronic speed controller, Type 30515 Assembly, installation and operating instructions...
  • Page 10: Pre-Commissioning Checks

    Electronic speed controller, Type 30515 Assembly instructions Pre-commissioning checks During initial commissioning, it must be ensured that all necessary requirements are met so that the appliance can function safely and as intended. Check whether all lines have been properly laid.
  • Page 11: Frost Alarm

    Electronic speed controller, Type 30515 Assembly, installation and operating instructions Potentiometer Speed limitation Setting or limiting the minimum and maximum output voltage at the analog output Uc in the range from 1 V to 10 V. In the factory settings, the \"min Speed\" potentiometer is in the minimum posi- tion and the \"max Speed\"...
  • Page 12: Digital Timer

    Electronic speed controller, Type 30515 Assembly instructions Operation Commissioning Once all system components have been properly installed and all connections have been checked for correctness, the system may be put into operation. Switch on the supply voltage. Digital timer Indicator light...
  • Page 13 Electronic speed controller, Type 30515 Assembly, installation and operating instructions Temperature setting for day mode Setting the desired room temperature during the daytime operating phase. Night mode temperature setting Setting the desired room temperature night setback in heating mode or night increase in cooling mode during the night mode phase.
  • Page 14: Display/ Operating Elements

    Electronic speed controller, Type 30515 Assembly instructions Display/ operating elements Overview of daily switching program Setting to 24 h or AM/PM display format Changeover to summer/winter time Weekday display ON/OFF display Manual operation / constant ON / constant OFF Automatic operation Setting buttons: Set the timer by pressing the button (for longer than 2 seconds).
  • Page 15: Operation

    Electronic speed controller, Type 30515 Assembly, installation and operating instructions Program structure Reset (initial installation) Read/ Set Menu Set time: 24 h- or AM/PM format 24 h flashes, select with +/-, then OK Set time: Hour Hour flashes, select with +/-, then OK...
  • Page 16 Electronic speed controller, Type 30515 Assembly instructions Setting the timer The procedure for programming the timer depends on whether preset and individual programs are to be used. The procedure is different. Preset programs (initial installation): The following values can be set using the RESET button:...
  • Page 17: Preset Programs

    Electronic speed controller, Type 30515 Assembly, installation and operating instructions Preset programs Programs P01-03: The switch-on and switch-off times for programs P01 to P03 are preset (pre). The user can change these programs. Individual program, P--: An individual program can be created under the menu option P--. This program can be changed at any time.
  • Page 18: Setting The Hours

    Electronic speed controller, Type 30515 Assembly instructions Individual programs Procedure after setting the time and day of the week in menu mode or after adding programs to the preset programs P01 to P03: Set program ON Set program and confirm with OK.
  • Page 19 Electronic speed controller, Type 30515 Assembly, installation and operating instructions MENU button and then the OK button until the ON switching time of the program to be de- leted appears. Select \"-\" (+/-) and confirm with OK. Note: Switching programs are deleted in ON/OFF pairs. When an ON command is deleted, the as- sociated OFF command is also deleted.
  • Page 20: Fault Table

    Electronic speed controller, Type 30515 Assembly instructions Faults The following chapter describes possible causes of faults and the work needed to rectify them. Should faults occur frequently, shorten the maintenance intervals in line with the actual loading on the unit.
  • Page 21 Electronic speed controller, Type 30515 Assembly, installation and operating instructions Assembly instructions Kampmann GmbH & Co. KG Friedrich-Ebert-Str. 128-130 49811 Lingen (Ems) T: +49591/7108 0 Konformitätserklärung Elektronische Drehzahlregelung Typ 30515.pdf E: info@kampmann.de www.kampmann.de SAP 1248327 07/24...
  • Page 22 Electronic speed controller, Type 30515 Assembly instructions...
  • Page 23 Electronic speed controller, Type 30515 Assembly, installation and operating instructions...
  • Page 24 196000030515 Country Contact Kampmann UK Ltd. Dial House, Govett Avenue Shepperton, Middlesex, TW17 8AG T +44 1932/ 228592 Great Britain F +44 1932/ 228949 E info@kampmann.co.uk W Kampmann.co.uk...
