Features
• cULus Listed for extended coverage protection of light hazard
occupancies
• K5.6 (80 metric) and K8.0 (115 metric) versions
• 250 psi (17.2 bar) rated
• Recessed and concealed trim options available
• Sprinklers and escutcheons available in a variety of finishes
Product Description
Reliable Model DH series sprinklers are quick response extended
coverage horizontal sidewall sprinklers for use in long, narrow areas
of light hazard occupancies such as hallways and corridors. Model
DH sprinklers may be installed exposed, or combined with the FP
or F2 Escutcheon to create a recessed sprinkler with 1/2" (13mm)
adjustment.
Model DH Series Sprinklers can also be utilized with the Model
SWC push on/thread off cover plate as a concealed sprinkler. This
sprinkler is factory mounted in a galvanized cup and is shipped with
a protective cap that protects the sprinkler during shipping and post
installation finishing operations. The SWC cover plate is attached
with 135-degree solder. In the event of a fire the rising ambient
temperature melts the solder allowing the cover plate to release and
exposing the thermal element to the increasing temperature.
Model DH Series sprinklers are listed for a maximum service
pressure of 250 psi (17.2 bar), and are installed using the Model
W2 wrench (non-recessed, non-concealed) or Model W4 wrench
(recessed, concealed).
Listings & Approvals
1. Listed by Underwriters Laboratories Inc. (VKKW.EX3646)
and UL Certified for Canada (VKKW7.EX3646)
Model DH Series Sprinklers
K-Factor
Sprinkler Model gpm/psi
(lpm/bar
DH56 5.6 (80)
DH80 8.0 (115)
Max. Coverage
Orientation
1/2
) ft x ft (m x m)
1/2
Horizontal
Sidewall
Horizontal
Sidewall (8.5 x 4.3)
www.reliablesprinkler.com

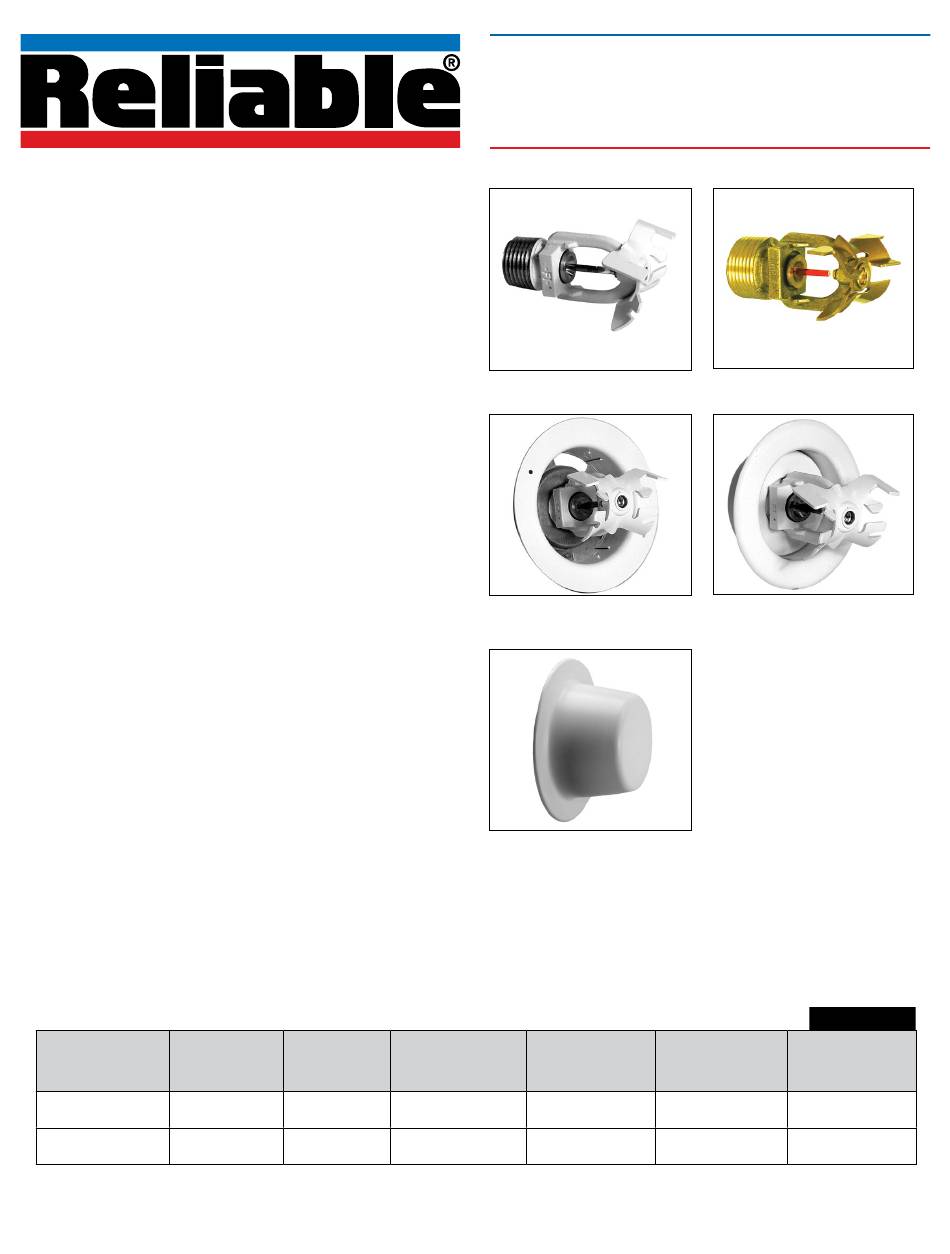

Model DH Series Quick Response
Model DH56
Model FP Recessed
Escutcheon
Model SWC Cover Plate
Application
Reliable Model DH Series sprinklers are specifically engineered
to meet the latest sprinkler listing of UL Standard 199 and
are intended for installation in specific areas of light hazard
occupancies in accordance with NFPA 13.
Listings &
Area
Approvals
28 x 10
cULus
(8.5 x 3)
28 x 14
cULus
Bulletin 015 July 2024
Extended Coverage Horizontal
Sidewall Sprinklers

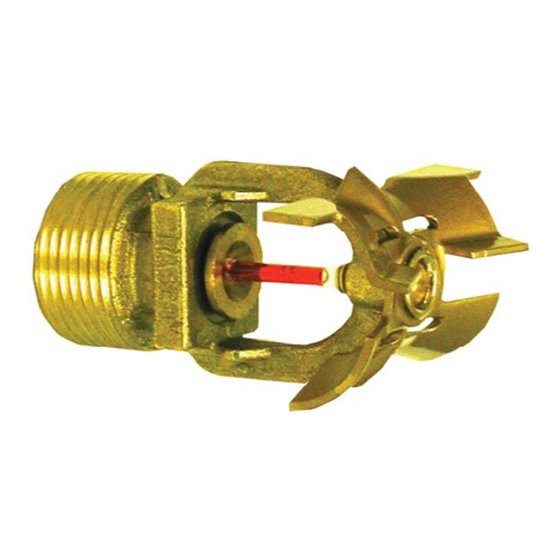

Model DH80
Model F2 Recessed
Escutcheon
Note: Not all versions of
sprinkler are shown.
Max. Working
Pressure
psi (bar) Number (SIN)
250 (17.2)
250 (17.2)
Table A
Sprinkler
Identification
RA1564
RA3062
