Reliable DH80 Manual

For coverages up to 28 feet wide and
14 feet long . 250 psi (17,2 bar) rated.
(1)

Features:

1.
Coverage for long and narrow spaces such
as hallways, corridors, decks and rooms
up to 28 feet wide and 14 feet long.
2.
Deflector to ceiling dimensions are:
4² (102mm) min. to 12² (305mm) max.
3.
Minimum spacing between sprinklers
12 feet (3,6m).
4.
UL Listed for light hazard applications.
5.
8.0 K Factor.
6.
Sprinkler is approved for
250 psi (17,2 bar) applications.
7.
Quick response performance.
8.
½² (13mm) adjustment of escutcheon
and cover.
9.
Tamper resistant cover plate can prevent
the sprinkler from being used for unin-
tended purposes. No exposed thermal ele-
ment with the concealed version.
10.
Push-on/thread-off sturdy convenient
escutcheon for recessed and cover for
concealed.
11.
Factory assembled sprinkler & cup,
shipped complete with protective cap for
concealed and FP recessed versions.
12.
Sprinkler & cup assembly and escutcheon
or cover are separately packaged.
13.
Cover finishes available in standard white
paint, special bronze, black paint or flat
white paint.
14.
Polyester Coated Corrosion Resistant
Sprinklers (cULus).
(1)
See Figure 3.

Approval Organizations

1. Listed by Underwriters Laboratories Inc. and
UL certified for Canada (cULus)
2. NYC MEA 258-93-E
Patents: US patent number 6,374,919
SWC Cover Plate
US Patent Number 6, 920, 937, B2
DH80 Sprinkler
The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford NY 10523
Model DH80
Model DH80 Recessed
Model DH80 Concealed
Quick Response,
Extended Coverage Sprinkler
(1)
with SWC cover plate

Products Description

The Model DH80 family of sprinklers are quick response
extended coverage sidewall sprinklers for use in light hazard
applications. The Model DH80 with SWC cover plate is a
concealed sprinkler that uses Reliable's push on/thread off
sidewall cover. This sprinkler has the cup factory mounted and
is shipped with a protective cap that protects the 3mm
frangible glass bulb during shipping and post installation
finishing operations. The DH80 can be combined in the field
with the FP or F2 Escutcheon to make a recessed sprinkler.
The SWC cover plate, FP and F2 recessed escutcheons have
½" adjustment. The SWC cover plate is attached with
135-degree solder. In the event of a fire the rising ambient
temperature melts the solder and the cover plate is ejected
away by springs exposing the 3mm frangible glass bulb. The
use of a 3mm bulb allows quick response which enables the
sprinkler to apply water to a fire sooner than standard
response sprinkles of the same temperature rating.

Application

The Model DH80 is a horizontal sidewall sprinkler intended
for installation in light hazard occupancies in accordance with
NFPA 13. These sprinklers are designed to provide fire
protection in long and narrow spaces such as hallways,
corridors, decks and rooms up to 28 feet (8,5m) wide and 14
feet (4,3m) long. They are rated for 250 psi (17,2 bar) and can
be mounted between 4 and 12 inches (102 and 305mm)
down from the ceiling.

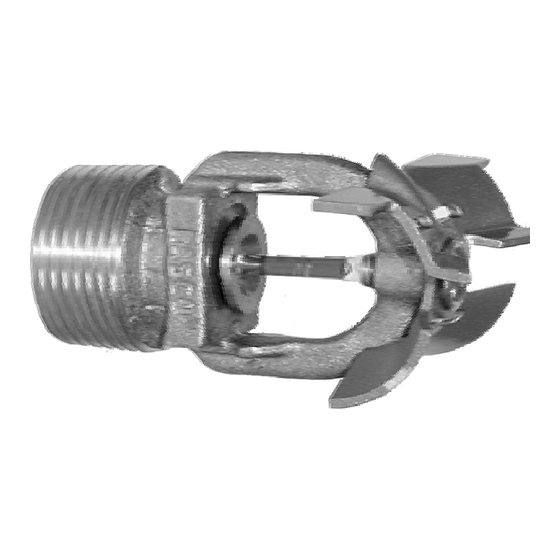

DH80
DH80 Concealed

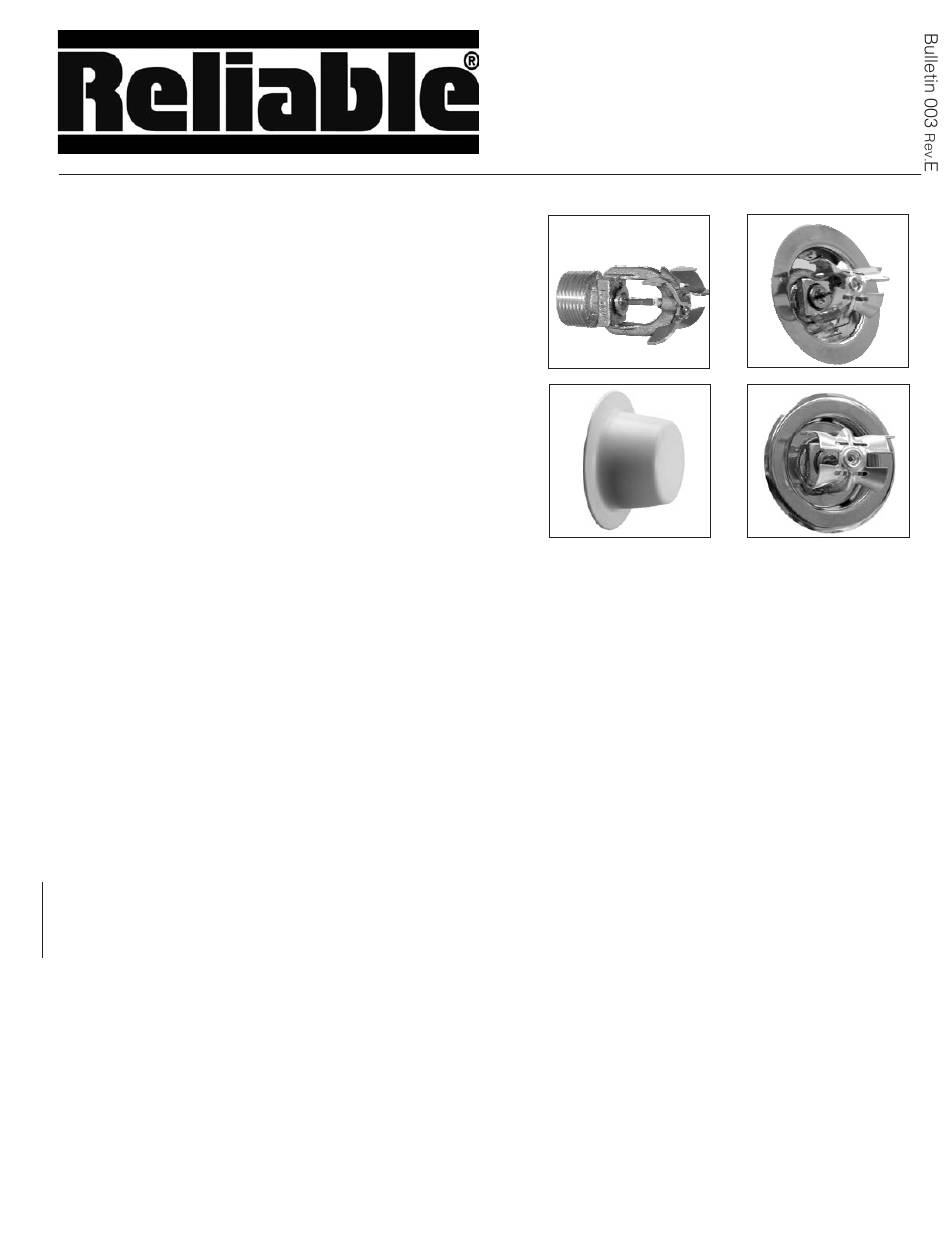

Bulletin 003 E
Rev.
DH80 FP Recessed
DH80 F2 Recessed
