Reliable DH80 Bulletin

For coverages up to 28 feet wide and
14 feet long (1) . 250 psi (17,2 bar) rated.
Features:
1. Coverage for long and narrow spaces such as
hallways, corridors, decks and rooms up to 28
feet wide and 14 feet long.
2. Deflector to ceiling dimensions are:
4" (102mm) min. to 12" (305mm) max.
3. Minimum spacing between sprinklers 12 feet
(3,6m).
4. UL Listed for light hazard applications.
5. 8.0 K Factor.
6. Sprinkler is approved for 250 psi (17,2 bar) ap-
plications.
7. Quick response performance.
8. ½" (13mm) adjustment of escutcheon and cover.
9. Tamper resistant cover plate can prevent the
sprinkler from being used for unintended pur-
poses. No exposed thermal element with the
concealed version.
10. Push-on/thread-off sturdy convenient escutch-
eon for recessed and cover for concealed.
11. Factory assembled sprinkler & cup, shipped
complete with protective cap for concealed
and FP recessed versions.
12. Sprinkler & cup assembly and escutcheon or
cover are separately packaged.
13. Cover finishes available in standard white paint,
special bronze, black paint or flat white paint.
14. Polyester Coated or Electroless Nickel PTFE
(Teflon )* Plated
®
Resistant Sprinklers
*Concealed Sprinkler is not corrosion resistance
See Figure 3.
(1)
Approval Organizations
1. Listed by Underwriters Laboratories Inc. and
UL certified for Canada (cULus)
2. NYC MEA 258-93-E
Patents: US patent number 6,374,919
SWC Cover Plate
US Patent Number 6, 920, 937, B2
DH80 Sprinkler
*DuPont Registered Trademark
The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
(1)
cULus Listed Corrosion
Model DH80
Model DH80 Recessed
Model DH80 Concealed
Quick Response,
Extended Coverage Sprinkler

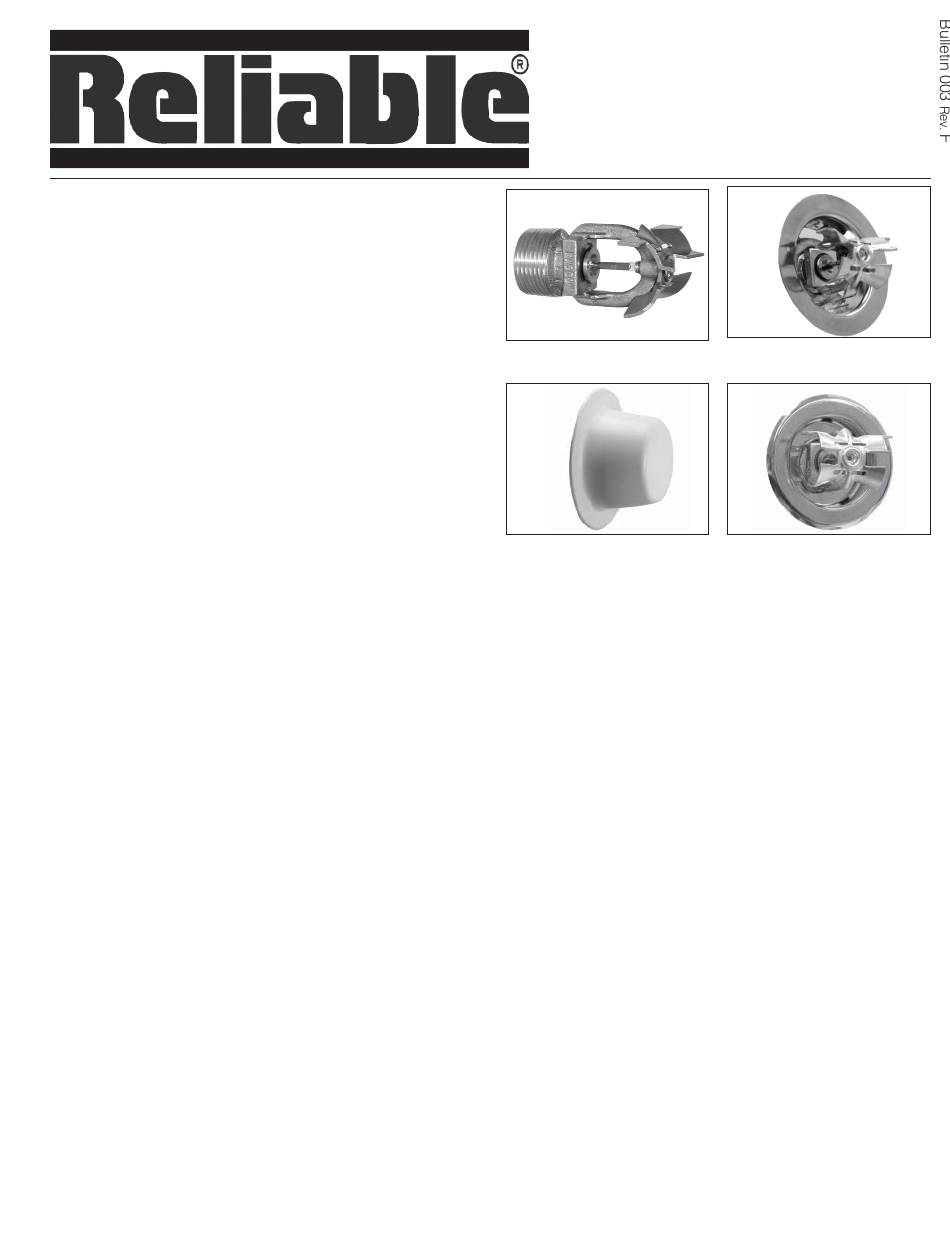

DH80
DH80 Concealed
with SWC cover plate
Products Description

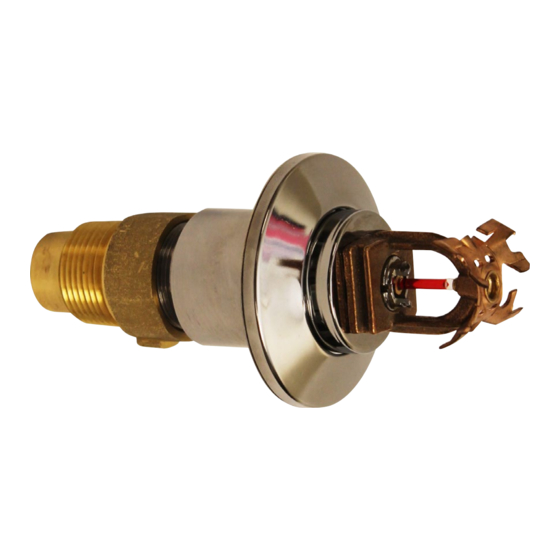

The Model DH80 family of sprinklers are quick response
extended coverage sidewall sprinklers for use in light haz-
ard applications. The Model DH80 with SWC cover plate is
a concealed sprinkler that uses Reliable's push on/thread off
sidewall cover. This sprinkler has the cup factory mounted
and is shipped with a protective cap that protects the 3mm
frangible glass bulb during shipping and post installation fin-
ishing operations. The DH80 can be combined in the field
with the FP or F2 Escutcheon to make a recessed sprinkler.
The SWC cover plate, FP and F2 recessed escutcheons
have ½" adjustment. The SWC cover plate is attached with
135-degree solder. In the event of a fire the rising ambient
temperature melts the solder and the cover plate is ejected
away by springs exposing the 3mm frangible glass bulb.
The use of a 3mm bulb allows quick response which enables
the sprinkler to apply water to a fire sooner than standard
response sprinkles of the same temperature rating.
Application
The Model DH80 is a horizontal sidewall sprinkler intended
for installation in light hazard occupancies in accordance
with NFPA 13. These sprinklers are designed to provide fire
protection in long and narrow spaces such as hallways, cor-
ridors, decks and rooms up to 28 feet (8,5m) wide and 14
feet (4,3m) long. They are rated for 250 psi (17,2 bar) and
can be mounted between 4 and 12 inches (102 and 305mm)
down from the ceiling.
Bulletin 003 F
Rev.
DH80 Recessed
DH80 F2 Recessed
