MAVIC MINI

User Manual

v1.0

2019.11

Table of Contents

Need help?

Do you have a question about the CP.MA.00000120.01 and is the answer not in the manual?

Questions and answers

Summary of Contents for dji CP.MA.00000120.01

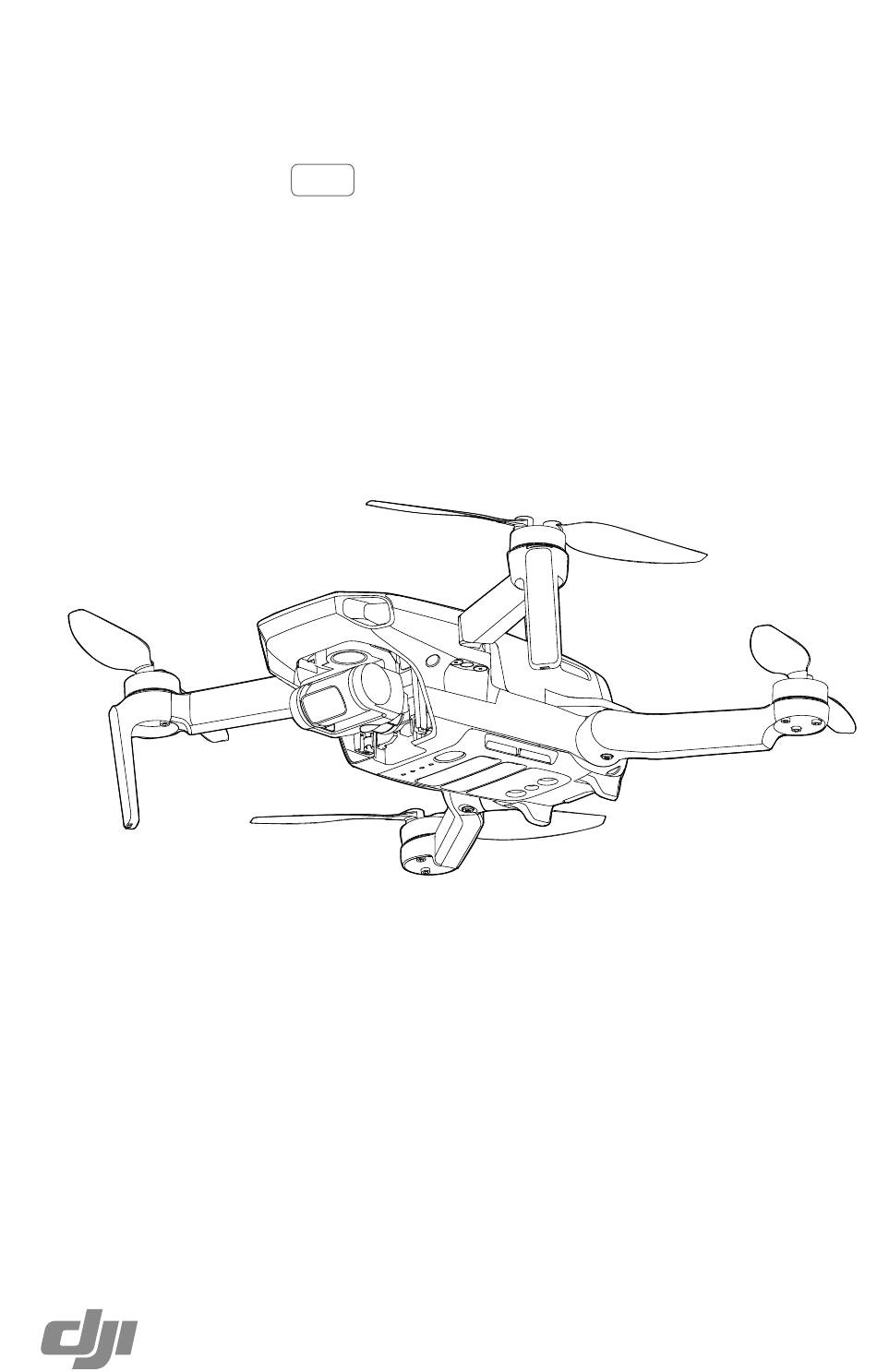

Page 1 MAVIC MINI User Manual v1.0 2019.11...
Page 2: Using This Manual
4. Disclaimer and Safety Guidelines It is recommend to watch all tutorial videos on the official DJI website and read the disclaimer and safety guidelines before using for the first time. Prepare for your first flight by reviewing the quick start guide and refer to this user manual for more information.
Page 3: Table Of Contents
Contents Using this Manual Legend Read Before the First Flight Video Tutorials Download the DJI Fly App Download DJI Assistant 2 for Mavic Product Profile Introduction Feature Highlights Preparing the Aircraft Preparing the Remote Controller Aircraft Diagram Remote Controller Diagram...
Page 4 Flight Flight Environment Requirements Flight Limits and GEO Zones Pre-Flight Checklist Auto Takeoff/Landing Starting/Stopping the Motors Flight Test Appendix Specifications Calibrating the Compass Firmware Update After-sales information © 2019 DJI All Rights Reserved.
Page 6: Product Profile
Intelligent Flight Mode QuickShots provide four sub modes, which can automatically shoot and generate different styles of video. Using the advanced DJI flight controller, Mavic Mini is able to provide a safe and reliable flight experience. The aircraft is able to automatically return to its Home Point when the remote controller signal is lost or the battery level is low, as well as being able to hover indoors at low altitudes.
Page 7: Preparing The Remote Controller
Micro USB cable, and USB-C cable are included in the packaging. Connect the end of the cable with the DJI logo to the remote controller and the other end of the cable to your mobile device. Secure your mobile device by pushing both clamps inward.
Page 8: Aircraft Diagram
3. Control Sticks aircraft is performing a QuickShot, Intelligent Use the control sticks to control the aircraft RTH, or auto landing, press once to make the movements. Set the ﬂight control mode in DJI © 2019 DJI All Rights Reserved.
Page 9: Activation
Activation Mavic Mini requires activation before using for the first time. After powering on the aircraft and remote controller, follow the on-screen instructions to activate Mavic Mini using DJI Fly. An internet connection is required for activation. ©...
Page 11: Aircraft
The aircraft’s responsiveness significantly increases in Sport mode, which means a small control stick movement on the remote controller translates into the aircraft moving a large distance. Be vigilant and maintain adequate maneuvering space during flight. © 2019 DJI All Rights Reserved.
Page 12: Aircraft Status Indicator
The Return to Home (RTH) function brings the aircraft back to the last recorded Home Point. There are three types of RTH: Smart RTH, Low Battery RTH, and Failsafe RTH. This section describes these three types of RTH in detail. RTH will also be triggered if the video link is disconnected. © 2019 DJI All Rights Reserved.
Page 13 Return home or land the aircraft immediately when prompted. DJI Fly displays a warning when the battery level is low. The aircraft will automatically return to the Home Point if no action is taken after a 10 second countdown.
Page 14 It is important to set a suitable RTH altitude before each ﬂight. Launch DJI Fly, and then set the RTH altitude. In Smart RTH and Low Battery RTH, the aircraft automatically ascends to the RTH altitude.
Page 15: Vision System And Infrared Sensing System
The Downward Vision System works best when the aircraft is at an altitude of 0.5 to 10 m. If the aircraft’s altitude is above 10 m, the Vision System may be affected, so extra caution is required. © 2019 DJI All Rights Reserved.
Page 16: Intelligent Flight Mode
If there is any dirt, dust, or water on the Infrared Sensing and Vision System, clean it with a soft cloth. Do not use any cleanser that contains alcohol. c. Contact DJI Support if there is any damage to the glass of the Infrared Sensing and Vision System. Intelligent Flight Mode Mavic Mini supports QuickShots Intelligent Flight Mode.
Page 17 1. Make sure that the Intelligent Flight Battery is sufficiently charged. Take off and hover at least 6.6 ft (2 m) above the ground. 2. In DJI Fly, tap to select QuickShots and follow the prompts. Make sure that the user understands how to use the shooting mode and that there are no obstacles in the surrounding area.
Page 18: Flight Recorder
Flight data including flight telemetry, aircraft status information, and other parameters are automatically saved to the internal data recorder of the aircraft. The data can be accessed using DJI Assistant 2 for Mavic. Propellers There are two types of Mavic Mini propellers, which are designed to spin in different directions. Marks are used to indicate which propellers should be attached to which motors.
Page 19: Intelligent Flight Battery
Over-discharge protection is not enabled when the battery is in flight use. 6. Short Circuit Protection: The power supply is automatically cut if a short circuit is detected. 7. Battery Cell Damage Protection: DJI Fly displays a warning prompt when a damaged battery cell is detected.
Page 20 Battery Level LEDs Power Button Battery Level LEDs : LED is on. : LED is flashing. : LED is off. LED1 LED2 LED3 LED4 Battery Level battery level ＞ 88% 75% ＜ battery level ≤ 88% © 2019 DJI All Rights Reserved.
Page 21 3. The battery level LEDs display the current battery level during charging. 4. The Intelligent Flight Battery is fully charged when all the battery level LEDs are on. Detach the USB charger when the battery is fully charged. © 2019 DJI All Rights Reserved.
Page 22 41° to 104° F (5° to 40° C). The ideal charging temperature is 71.6° to 82.4° F (22° to 28° C). The Battery Charging Hub (not included) can charge up to three batteries. Visit the ofﬁcial DJI Online Store to learn more.
Page 23: Gimbal And Camera
Use the gimbal dial on the remote controller to control the camera’s tilt. Alternatively, enter the camera view in DJI Fly. Press the screen until a circle appears and drag the circle up and down to control the camera’s tilt.
Page 24 Make sure to power off the aircraft correctly. Otherwise, your camera parameters will not be saved and any recorded videos may be damaged. DJI is not responsible for any failure of an image or video to be recorded or having been recorded in a way that is not machine-readable.
Page 26: Remote Controller
2.49 mi (4 km), and 720p video downlink from the aircraft to DJI Fly on your mobile device. The detachable control sticks make the remote controller easier to store. Refer to the remote controller diagram in the Product Profile section for more information.
Page 27 Mavic Mini User Manual Controlling the Aircraft Three pre-programmed modes (Mode 1, Mode 2, and Mode 3) are available and custom modes can be defined in the DJI Fly app. The default mode is Mode 2. Mode 1 Left Stick...
Page 28 Press and hold the RTH button to start RTH. Press this button again to cancel RTH and regain control of the aircraft. Refer to the Return to Home section for more information about RTH. © 2019 DJI All Rights Reserved.
Page 29: Optimal Transmission Zone
1. Power on the remote controller and the aircraft. 2. Launch DJI Fly. In camera view, tap the icon and select Shortcuts and Connect to Aircraft, or press and hold the power button of the remote controller for more than four seconds. The remote controller beeps continuously indicating it is ready to link.
Page 31: Dji Fly App
Album Allows you to view the DJI Fly and your phone’s album. QuickShots videos can be viewed after downloading to your phone. Create contains Templates and Pro. Templates provides auto edit feature for imported footage. Pro allows you to edit the footage manually.
Page 32: Camera View
Ceiling above Sea Level is 1500 m and the max flight speed is limited when Payload mode is enabled. The Find My Drone feature helps to find the location of the aircraft on the ground. © 2019 DJI All Rights Reserved.
Page 33 Tap this icon. When the prompt appears, press and hold the button to initiate auto takeoff or landing. Tap to initiate Smart RTH and have the aircraft return to the last recorded Home Point. 16. Back Tap to return to the home screen. © 2019 DJI All Rights Reserved.
Page 34 The app is designed to assist your operation. Use your discretion and DO NOT rely on the app to control your aircraft. Your use of the app is subject to DJI Fly Terms of Use and DJI's Privacy Policy. Read them carefully in the app before ﬂying.
Page 36: Flight
Once pre-flight preparation is complete, it is recommended to hone your flight skills and practice flying safely. Make sure that all flights are carried out in an open area. Refer to the Remote Controller and DJI Fly sections for information about using the remote controller and the app to control the aircraft.
Page 37: Pre-Flight Checklist
Fly the aircraft only within your line of sight. GEO Zones All GEO zones are listed on the DJI official website at http://www.dji.com/flysafe. GEO zones are divided into different categories and include locations such as airports, flying fields where manned aircraft operate at low altitudes, borders between countries, and sensitive locations such as power plants.
Page 38: Auto Takeoff/Landing
Mavic Mini User Manual 8. Use only genuine DJI parts or parts certified by DJI. Unauthorized parts or parts from non-DJI certified manufacturers may cause system malfunctions and compromise safety. Auto Takeoff/Landing Auto Takeoff 1. Launch DJI Fly and enter the camera view.
Page 39: Flight Test
1. The pre-flight checklist is designed to help you fly safely and to ensure that you can shoot video during flight. Go through the full pre-flight checklist before each flight. 2. Select the desired gimbal operation mode in DJI Fly. 3. Shoot video when flying in P-mode or C-mode.
Page 41: Appendix
Model MT1SS5: 5.725-5.850 GHz Model MT1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz Transmission Power (EIRP) Model MT1SS5 5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC) Model MT1SD25 2.4 GHz: <19 dBm (MIC/CE) 5.8 GHz: <14 dBm (CE) © 2019 DJI All Rights Reserved.
Page 42 FAT32 (≤ 32 GB) exFA (> 32 GB) Photo Format JPEG Video Format MP4 (H.264/MPEG-4 AVC) Remote Controller Operating Frequency Model MR1SS5: 5.725 - 5.850 GHz Model MR1SD25: 2.400 - 2.4835 GHz, 5.725 - 5.850 GHz © 2019 DJI All Rights Reserved.
Page 43 Intelligent Flight Battery (JP Version) Capacity 1100 mAh Voltage 7.6 V Max Charging Voltage 8.7 V Battery Type LiPo 2S Energy 8.36 Wh Weight 50 g Charging Temperature Range 5° to 40° C (41° to 104° F) © 2019 DJI All Rights Reserved.
Page 44: Calibrating The Compass
Choose an open area to carry out the following procedure. 1. Tap the System Settings in DJI Fly, select “Control” and then select “Calibrate”, and follow the on- screen instructions. The aircraft status indicator blinks yellow, indicating calibration has start.
Page 45 Change your location. A prompt will appear in DJI Fly if compass calibration is required before takeoff. The aircraft can take off immediately once calibration is complete. If you wait more than three minutes to take off after calibration, you may need to repeat the calibration process.
Page 46: Firmware Update
Use DJI Fly or DJI Assistant 2 for Mavic to update the aircraft and the remote controller firmware. Using DJI Fly When you connect the aircraft and remote controller to DJI Fly, you will be notified if a new firmware update is available. To start updating, connect your mobile device to the internet and follow the on- screen instructions.
Page 47: After-Sales Information
Note that the update may reset various main controller settings, such as the RTH altitude and the maximum ﬂight distance, to default settings. Before updating, take note of your preferred DJI Fly settings, and readjust them after the update. After-sales information Visit https://www.dji.com/support to learn more about after-sales service policies, repair services, and...
Page 48 This content is subject to change. Download the latest version from http://www.dji.com/mavic-mini If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. MAVIC is a trademark of DJI. Copyright © 2019 DJI All Rights Reserved.
