LT213 Series ETS
Installation, Operation and Service Instructions
INFRARED HEATER
operation
and
service
operation
and
service
Canada: 563 Barton Street, Stoney Creek, Ontario L8E 5S1
USA: 315 N Madison Street, Fortville, IN 46040
www.irenergy.ca

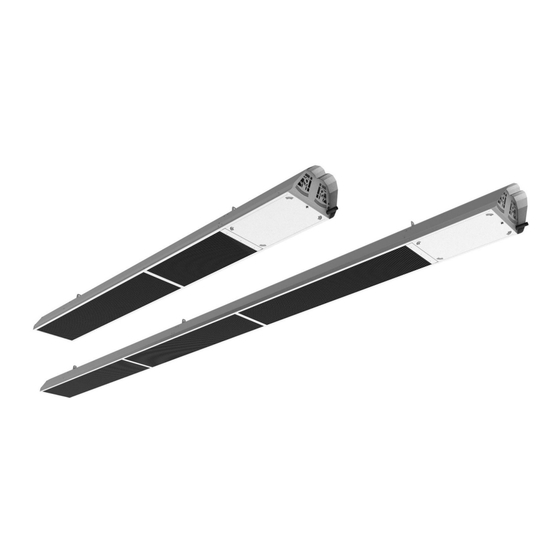

Series ETS Infrared Heater
WARNING: FOR OUTDOOR USE ONLY
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
If you smell gas:
1. Open windows
2. Don't touch electrical switches
3. Extinguish any open flame
4. Immediately call your gas supplier
INSTALLER
Provide Manual to owner upon completion of installation.
Read and thoroughly understand these Instructions
before attempting any installation.
1
Two-Stage
July 5, 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETS Series and is the answer not in the manual?

Questions and answers

Related Manuals for IR Energy ETS Series

Summary of Contents for IR Energy ETS Series

  • Page 1 Installation, Operation and Service Instructions INFRARED HEATER Series ETS Infrared Heater Two-Stage WARNING: FOR OUTDOOR USE ONLY WARNING FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors Improper installation, adjustment, alteration, service and liquids in the vicinity of this or any other appliance. or maintenance can cause property damage, injury or death.
  • Page 2 DANGER - CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING - ELECTRICAL GROUNDING INSTRUCTIONS This heater is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle.
  • Page 3 CAUTION – FIRE OR BURN INJURY HAZARD • At all times, maintain clearance to combustible materials as further specified in this manual. Failure to do so can result in serious fire hazard. • Never operate heaters in atmosphere containing flammable vapours or combustible dusts. •...

  • Page 4: Table Of Contents

    Contents Contents ..................................4 Introduction .................................. 5 Installation Codes ..............................5 General Specifications ..............................6 Gas Supply ................................6 Electrical Supply ..............................6 Configurations ................................6 High Altitude ................................. 6 Dimensional Chart ............................... 7 ETS 40, 50 ................................7 ETS 60 ................................. 8 ETS 80, 100 .................................

  • Page 5: Introduction

    IR Energy offers its 25 years of infrared expertise in a cost effective unitary heater design as culmination of that commitment. Series ETS models are low intensity infrared heaters that are easy to install and maintain, and which were engineered with significant input from our customers.

  • Page 6: General Specifications

    General Specifications Gas Supply Inlet Pressure Natural Gas Propane Gas 5.0” W.C. 11.5” W.C. Minimum: 14.0” W.C 14.0” W.C. Maximum: Manifold Pressure Natural Gas Propane Gas 3.3” W.C. 10.2” W.C. High Rate: 1.5” W.C. 4.2” W.C. Low Rate: Inlet Connection Natural Gas Propane Gas ½”...

  • Page 7: Dimensional Chart

    Dimensional Chart ETS 40, 50 Note: All dimensions are in inches. LT213 Series ETS July 5, 2023...

  • Page 8: Ets 60

    ETS 60 Note: All dimensions are in inches LT213 Series ETS July 5, 2023...

  • Page 9: Ets 80, 100

    ETS 80, 100 Note: All dimensions are in inches. LT213 Series ETS July 5, 2023...

  • Page 10: Components

    Components Heater Components for ETS 40, 50: BOX 1 BOX 2 60” 30” EH113 EH013 QTY (10) QTY (8) LT213 Series ETS July 5, 2023...

  • Page 11: Heater Components For Ets 60

    Heater Components for ETS 60: BOX 1 BOX 2 US225ALC Burner ETS06N-2MS BOX 3 60” UT024 CR094 US230S CR088MS CR237 QTY (1) QTY (2) QTY (1) QTY (1) QTY (1) CS152 EH013 EH113 CT179 CR091TG QTY (1) QTY (x) QTY (x) QTY (1) QTY (1) LT213 Series ETS...

  • Page 12: Heater Components For Ets 80, 100

    Heater Components for ETS 80, 100: BOX 1 BOX 2 US225ALC Burner BOX 3 54” 60” EH013 EH113 QTY (48) QTY (17) LT213 Series ETS July 5, 2023...

  • Page 13: Installation Requirements

    Installation Requirements Clearance to Combustibles A general clearance of 18” (0.5 m) in every direction is recommended for servicing around each Burner. This ensures adequate air flow in and around the Heating System. In addition to this it is very important to observe the minimum clearance to combustibles at all times to avoid any possibility of property damage or personal injury.

  • Page 14: Heater Mounting

    Heater Mounting This heater can be installed between wood Trusses CANNOT be enclosed beams with minimum distances as shown. Air flow MUST NOT be restricted. The Wood Beam space above the heater must not be enclosed in order to allow air for ventilation. 1/2"...
  • Page 15 Mounting Location Model Used For Part # Deminsions CR134 ETS 40,50,60 ETS 80,100 CR135 Ceiling Mount CR162L&R CR225L&R ETS 40,50,60,80,100 Wall Mount CR139L&R Note: Only for non- combustible wall LT213 Series ETS July 5, 2023...

  • Page 16: Installation Instructions

    Installation Instructions Generally, there is no unique sequence for installation of the burner or heat exchanger. A review of the job site will usually indicate a logical installation order. However, time and expense can be saved if installation is begun at the most critical dimension, watching for interference from overhead beams etc.
  • Page 17 Step 3: 60” Deco Grille Screws (EH113) Install Deco Grille Support first. *Face tabs of this Support towards the exhaust! Step 4: If Marine Stainless model: Screws (EH013) Screws (EH113) Otherwise: Screws (EH113) End Cap LT213 Series ETS July 5, 2023...
  • Page 18 You should now have a fully assembled ETS 40/50. LT213 Series ETS July 5, 2023...

  • Page 19: Installation - Ets 60

    Installation – ETS 60 Step 1: Step 2: 9.5’ Flanged Tube *Face the Tube’s weld-seam downwards, at a 6 o’clock position. LT213 Series ETS July 5, 2023...
  • Page 20 Step 3: Burner Hanger Step 4: Vent Hanger Burner Hanger LT213 Series ETS July 5, 2023...
  • Page 21 Step 5: Vent Hanger Burner Hanger Step 6: Baffle Bend Baffle tab completely over end of Tube at 6 o’clock position (along the weld seam). LT213 Series ETS July 5, 2023...
  • Page 22 Step 7: Vent Terminal *Ensure to level the Vent Terminal with the bottom of the vent hanger. Screws (EH013) Slide Vent Terminal over Baffle tab. Secure Vent to Tube using two self-drilling screws. Step 8: Slots for Vent Hanger Reflector LT213 Series ETS July 5, 2023...
  • Page 23 Note: If you have ordered canopies, refer to section “Canopy Installation Instructions” before this step. You should combine installation of reflectors and canopies together. Step 9: Screws (EH013) Step 10: Burner Head Gasket Note: Ensure Burner Head is properly supported. Use 5/16 washers and nuts to attach burner to flanged tube.
  • Page 24 Step 11: Slide Burner Head Reflector over Burner Head. Step 12: Screw (EH013) LT213 Series ETS July 5, 2023...
  • Page 25 Step 13: Attach Grill to Reflector and Burner Head. Step 14: Screws (EH113) LT213 Series ETS July 5, 2023...
  • Page 26 Step 15: Attach Service Cover. (tuck this edge up and in) Step 16: Fasten with screw supplied with Service Door LT213 Series ETS July 5, 2023...
  • Page 27 Step 17: Before installing the Deco Grilles, bend all the tabs along one long side and both short sides of the Grille for easier fitment. *Gloves recommended! Deco Grille 60” Caution: Pay attention to deco grill order othewise the CR091 (Support bracket) will not allign to holes on housing. Step 18: Screws (EH113)
  • Page 28 Step 19: Deco Grille Step 20: If Marine Stainless model: Screws (EH013) End Cap Otherwise: Screws (EH113) LT213 Series ETS July 5, 2023...
  • Page 29 You should now have a fully assembled ETS 60 Face Deco Grille Support tabs towards the exhaust! LT213 Series ETS July 5, 2023...

  • Page 30: Installation - Ets 80, 100

    Installation – ETS 80, 100 Step 1: 60” 90” Pipe Stand LT213 Series ETS July 5, 2023...
  • Page 31 Step 2: 10’ Flanged Tube *Face the Tube’s weld-seam downwards, at a 6 o’clock position. Step 3: Burner Hanger LT213 Series ETS July 5, 2023...
  • Page 32 Step 4: Middle Hanger Assembly Burner Hanger Step 5: Middle Hanger Burner Hanger LT213 Series ETS July 5, 2023...
  • Page 33 Step 6: Coupling Step 7: Torque to 15-25 ft-lbs When installing, orient band-clamp lock bolts to the side at a Extension 3 o’clock or 9 o’clock position to avoid contact with reflector. Tube – 4’ *Face the Tube’s weld-seam downwards, at a 6 o’clock position. LT213 Series ETS July 5, 2023...
  • Page 34 Step 8: Vent Hanger Step 9: Primary Reflector *Notch *Orient notches on Primary Reflector towards the Burner Head LT213 Series ETS July 5, 2023...
  • Page 35 Step 10: Slide Reflector and Burner Hanger against flange. Note: If you have ordered canopies, refer to section “Canopy Installation Instructions” before this step. You should combine installation of reflectors and canopies together. Step 11: Screws (EH013) LT213 Series ETS July 5, 2023...
  • Page 36 Step 12: Baffle Bend Baffle tab completely over end of Tube at 6 o’clock position (along the weld seam). Step 13: Vent Terminal *Ensure to level the Vent Terminal with the bottom of the vent hanger. Screws (EH013) Slide Vent Terminal over Baffle tab. Secure Vent to Tube using two self-drilling screws.
  • Page 37 Step 14: Secondary Reflector Step 15: Screws (EH013) LT213 Series ETS July 5, 2023...
  • Page 38 Step 16: Burner Head Gasket Note: Ensure Burner Head is properly supported. Use 5/16 washers and nuts to attach burner to flanged tube. Step 17: Slide Burner Head Reflector over Burner Head. LT213 Series ETS July 5, 2023...
  • Page 39 Step 18: Screw (EH013) Step 19: Attach Grill to Reflector and Burner Head. LT213 Series ETS July 5, 2023...
  • Page 40 Step 20: Screws (EH113) Step 21: Attach Service Cover. (tuck this edge up and in) LT213 Series ETS July 5, 2023...
  • Page 41 Step 22: Fasten with screw supplied with Service Cover Step 23: Before installing the Deco Grilles, bend all the tabs along one long side and both short sides of the Grille for easier fitment. *Gloves recommended! Deco Grille 54” Caution: Pay attention to deco grill order othewise the CR091 (Support bracket) will not allign to holes on housing.
  • Page 42 Step 24: Screws (EH113) Deco Grille Support #1 Face Deco Grille Support tabs towards burner! Step 25: Deco Grille 60” LT213 Series ETS July 5, 2023...
  • Page 43 Step 26: Deco Grille 60” Screws (EH113) Install Deco Grille Support first. Face Deco Grille Support tabs towards the exhaust! Step 27: End Cap If Marine Stainless model: Screws (EH013) Otherwise: Screws (EH113) LT213 Series ETS July 5, 2023...
  • Page 44 You should now have a fully assembled ETS 80/100. LT213 Series ETS July 5, 2023...

  • Page 45: Canopy Installation Instructions (Optional)

    Canopy Installation Instructions (Optional) The following instructions demonstrate how to assemble the painted canopies of your heater. Contact manufacturer for more details regarding painted canopies. End Cap Cowling Canopies Service Cover Grill LT213 Series ETS July 5, 2023...

  • Page 46: Ets 40, 50

    ETS 40, 50 STEP 1 The screws shown on the right are used to secure the canopy. CR187L STEP 2 Install canopies (note part numbers) as shown to the right. After placing canopies on reflectors, fasten reflectors and canopies together. CR187R Slots STEP 2A...

  • Page 47: Ets 60

    ETS 60 STEP 1 The screws shown on the right are used to secure the canopy. STEP 2 Install canopies (note part numbers) as shown to the right. After placing canopies on CR238L reflectors, fasten reflectors and canopies together. CR238R STEP 2A Note the slots in the canopies which allow the hanger to protrude.
  • Page 48 ETS 80, 100 STEP 1 The screws shown on the right CR186L are used to secure the canopy. CR187L CR186R STEP 2 Install canopies (note part numbers) as shown to the right. CR187R After placing canopies on reflectors, fasten reflectors and canopies together.

  • Page 49: Gas Piping

    Gas Piping Installation / Code Requirements Installation must comply with local building codes and/or, for the USA/National Fuel Gas Code, ANZI Z 223.1 (NFPA 54) and for Canada, CSA B149.1 National Gas and Propane Installation Code (latest editions). Appliance must be electrically grounded in accordance with local codes or, in their absence; the National Electrical Code, ANSI/NFPA 70 in the USA, CSA C22.1 Canadian Electrical Code in Canada.

  • Page 50: Electrical Wiring

    Electrical Wiring General Requirements Heaters are normally controlled by line voltage (120V) or low voltage (24V) thermostats. Line voltage thermostats are wired directly while low voltage thermostats use a relay. In all cases, heaters must be grounded in accordance with the National Electric Code, ANSI/NFPA 70 in the US, and the Canadian Electric Code, CSA C22.1 in Canada, and must comply with all local requirements.

  • Page 51: Multiple Heater Wiring

    Multiple Heater Wiring LT213 Series ETS July 5, 2023...

  • Page 52: External Wiring Options (Outdoor Installation Only)

    External Wiring Options (Outdoor Installation Only) LT213 Series ETS July 5, 2023...
  • Page 53 External Wiring Options (With Optional Timer) LT213 Series ETS July 5, 2023...

  • Page 54: Lighting & Shutdown Instructions

    Lighting & Shutdown Instructions Lighting 1. Open manual gas supply valve (ensure gas supply lines have been purged). 2. Turn on the electronic control. 3. When the control calls for heat, blower motor will energize. 4. When the motor approaches nominal running RPM, the air-proving switch closes and activates the ignition sequence.

  • Page 55: Trouble Shooting

    Trouble Shooting Blower Motor Fails to Run • Is the heater plugged in? Is there 115V at the burner receptacle? • Check blower for obstructions. Replace blower if necessary. No Gas Supply • Make sure that the manual supply valve to heater is ON. •...

  • Page 56: Troubleshooting Chart

    Troubleshooting Chart LT213 Series ETS July 5, 2023...

  • Page 57: Replacement Parts List

    Replacement Parts List Item Part No. Description RP-UG107 Gas Train Assembly for Natural Gas RP-UG108 Gas Train Assembly for Propane RP-CE201 Ignition Module RP-CE202 Wire Harness w/5 pin PLUG to Ignition Module RP-CE382 Blower Motor Assembly w/ PSC 2SPD Motor RP-CE058 Transformer, 115V to 24VAC, 40VA RP-CE029...

  • Page 58: Warranty

    Warranty SERIES ETS INFRARED HEATERS WARRANTY The manufacturer warrants to the original owner that the product will be free of defects in material and workmanship as described below. Warranty Period Series Component Years Years Years Years Burner & Controls Aluminized Heat Exchanger (Tube) The Manufacturer’s obligation under this warranty is limited to repair or replacement, F.O.B.
