ELECTRIC INFRARED HEATERS
The manufacturer's instructions, the layout drawing, national and local codes and ordinances, and all applicable
standards which apply to electrical wiring comprise the basic information needed to complete the installation. These
criteria must be thoroughly understood before proceeding.
Only personnel who have been trained and understand all applicable codes should undertake the installation.
Manufacturer representatives are Factory Certified in the service and application of this equipment, and can be
called on for helpful suggestions about installation.
Series eWAVE
Installation, Operation and Service Instructions
WARNING
Canada:
563 Barton Street, Stoney Creek, Ontario L8E 5S1
USA:
315 N Madison Street, Fortville, IN 46040
www.superiorradiant.com
Page 1

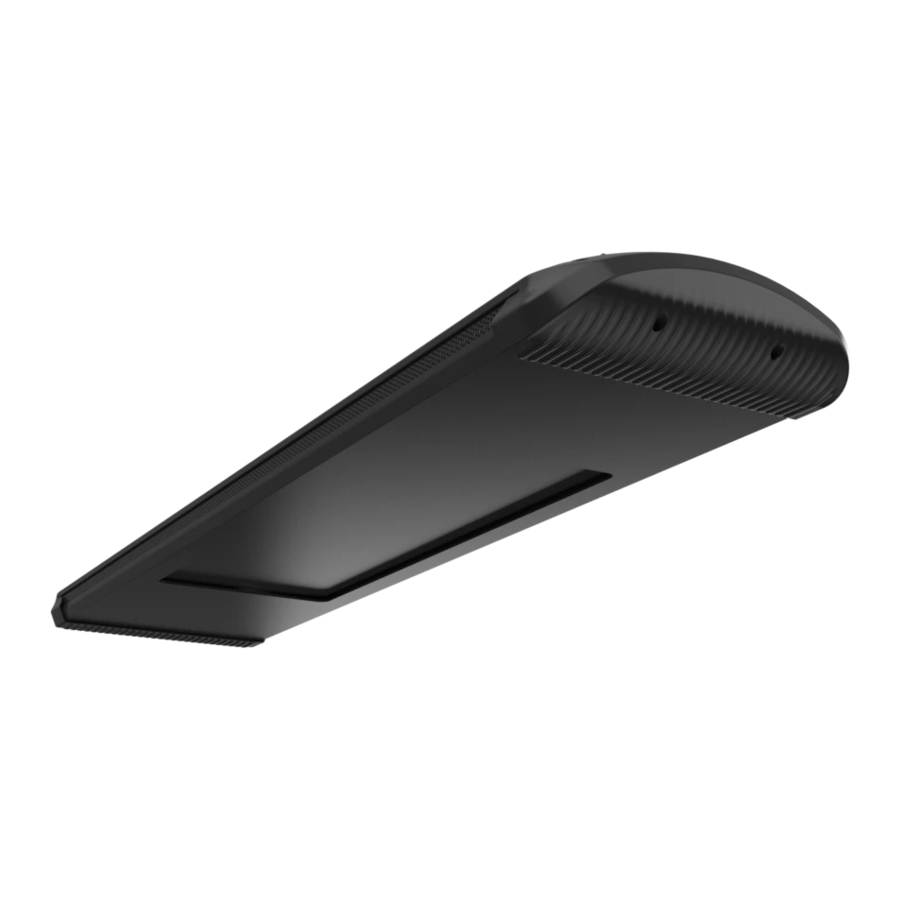

SERIES eWAVE ™
Long Wave Infrared Heater
MODELS
EW15L12
EW32L24
LT286 April 09, 2020
Advertisement
Table of Contents
Related Manuals for IR Energy eWAVE Series
Summary of Contents for IR Energy eWAVE Series
- Page 1 Installation, Operation and Service Instructions ELECTRIC INFRARED HEATERS SERIES eWAVE ™ Long Wave Infrared Heater MODELS EW15L12 EW32L24 WARNING The manufacturer’s instructions, the layout drawing, national and local codes and ordinances, and all applicable standards which apply to electrical wiring comprise the basic information needed to complete the installation. These criteria must be thoroughly understood before proceeding.
-
Page 2: Table Of Contents
ONTENTS APPLICABLE CODES AND STANDARDS .......................... 2 TECHNICAL SPECIFICATIONS ............................... 2 IMPORTANT INSTRUCTIONS ............................... 3 SAFETY INSTRUCTIONS ............................... 3 ELECTRICAL AND OPERATING INSTRUCTIONS ........................ 4 CLEARANCE TO COMBUSTIBLES ............................ 5 SUPPLIED WALL/CEILING SUPPORT ............................ 6 INSTALLATION INSTRUCTIONS ............................ 6 IMPORTANT INSTRUCTIONS FOR OUTDOOR INSTALLATIONS .................... 9 MAINTENANCE INSTRUCTIONS ............................ 9 TECHNICAL SERVICE ................................ 9 REPLACEMENT PARTS ............................... 1 0 WARRANTY TERMS & CONDITIONS ........................... ... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before installing or using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. -
Page 4: Electrical And Operating Instructions
ELECTRICAL AND OPERATING INSTRUCTIONS General Requirements Turn the heater on only when you need heat and avoid any misuse. Do not use the heater if the ambient temperature exceeds 80°F (25°C). Before connecting the appliance make sure that the voltage is the same as indicated on the device and the line supply is corresponding to the relevant electrical code. -
Page 5: Clearance To Combustibles
CLEARANCE TO COMBUSTIBLES 1. The minimum clearance from the floor to the heater shall be 8ft (243cm). 2. The minimum clearances from the ceiling, walls and other objects are shown in the pictures below. 3. The stated clearance to combustibles represents a surface temperature of 117°F (65°C) above room temperature. -
Page 6: Supplied Wall/Ceiling Support
SUPPLIED WALL/CEILING SUPPORT INSTALLATION INSTRUCTIONS Before being used, the heater must be fixed to the wall or to the ceiling by means of the provided supports. Ensure that the wall where you intend to install the heater is solid and that no electrical cables or water pipes pass behind it. - Page 7 3. Insert the arch-shaped support in the rail on the 4. Align the base holes of the supports and upper side of the heater. join them together using the supplied screw and bolt. 5. Fix the brackets in position by tightening the 6.
- Page 8 9. Once the wiring is completed, close the connection box with the appropriate screws, making sure to position the gaskets between the box and the cover as shown in the figure. Series eWAVE Page 8 LT286 April 09, 2020...
-
Page 9: Important Instructions For Outdoor Installations
IMPORTANT INSTRUCTIONS FOR OUTDOOR INSTALLATIONS 1. During installation, to maintain the water resistance of the junction box, it is necessary to make sure that all the components of the fitting are perfectly matched and placed in their position and sequence along the conduit hose (see pictures);... -
Page 10: Replacement Parts
REPLACEMENT PARTS eWAVE Hanging Brackets Kit (Part # ES314) Item Description Quantity Heater Bracket Wall Bracket M4x10mm Phillips Pan Scr S/S M4 Nut S/S eWAVE Junction Box Lid, Gasket Kit (Part # ES315) Item Description Quantity Gasket Screws Washers Series eWAVE Page 10 LT286 April 09, 2020... -
Page 11: Warranty Terms & Conditions
WARRANTY TERMS & CONDITIONS eWAVE ELECTRIC INFRARED HEATERS WARRANTY TERMS & CONDITIONS The manufacturer warrants to the original owner that the product will be free of defects in the material and workmanship. This warranty is limited to 12 months from the date of installation for all components. The Manufacturer’s obligation under this warranty is limited to repair or replacement, F.O.B. - Page 12 THIS PAGE LEFT INTENTIONALLY BLANK Series eWAVE Page 12 LT286 April 09, 2020...
