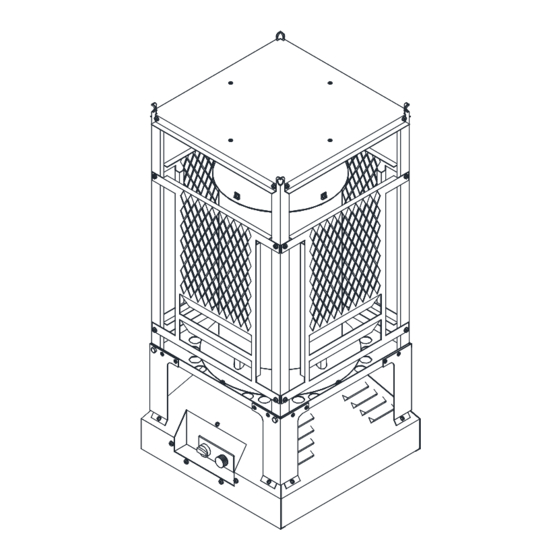

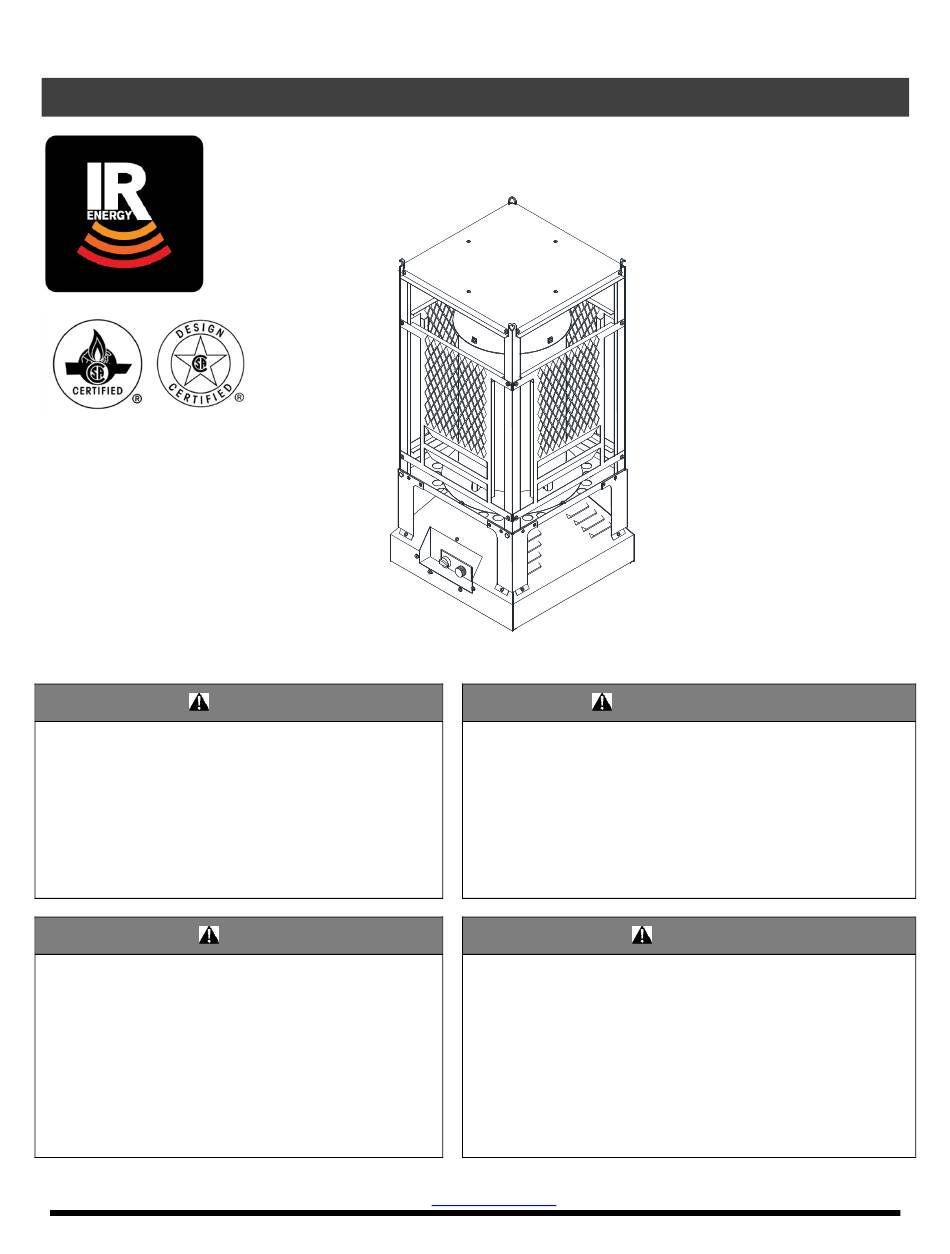

GAS-FIRED CONSTRUCTION HEATER
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury
or death.
Read the installation, operating and maintenance
instructions thoroughly before installing or servicing
this equipment.
Retain this Manual & ensure available for service.
Improper installation, adjustment, alteration, service
or maintenance can cause injury, death or property
damage.
Read the installation, operation and service
instructions thoroughly before installing or servicing
this equipment.
LT095 Series KA
Installation, Operation and Service Instructions
OWNER
Canada: 563 Barton St., Stoney Creek, Ontario L8E 5S1
SERIES KA INFRARED
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
If you smell gas:
1. Open windows
2. Don't touch electrical switches
3. Extinguish any open flame
4. Immediately call your gas supplier
Provide Manual to Owner upon completion of installation!
Read and thoroughly understand these instructions before
attempting any installation.
www.irenergy.ca
Page 1
FOR YOUR SAFETY
INSTALLER
May 2022
Advertisement
Table of Contents
Related Manuals for IR Energy KA Series
Summary of Contents for IR Energy KA Series
- Page 1 Installation, Operation and Service Instructions GAS-FIRED CONSTRUCTION HEATER SERIES KA INFRARED WARNING FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors Improper installation, adjustment, alteration, service and liquids in the vicinity of this or any other appliance. or maintenance can cause property damage, injury or death.
- Page 2 GENERAL HAZARD WARNING Failure to comply with the precautions and instructions provided with this heater, can result in death, serious bodily injury and property loss or damage from hazards of fire, explosion, burn, asphyxiation, carbon monoxide poisoning, and / or electrical shock. Only persons who can understand and follow the instructions should use or service this heater.
-
Page 3: Table Of Contents
CONTENTS CONTENTS .................................. 3 INTRODUCTION.................................. 4 .................................. 4 NSTALLATION ODES General Installation and Gas Codes ............................ 4 Gas Supply Lines .................................. 4 GENERAL SPECIFICATIONS .............................. 5 CONFIGURATIONS ................................ 5 CLEARANCE TO COMBUSTIBLES ............................ 5 VENTILATION .................................. 7 INSTALLATION SEQUENCE ............................... 8 OPERATION .................................. 1 0 ................................ 10 IGHTING ... -
Page 4: Introduction
INTRODUCTION IR Energy is a company in the infrared heating industry founded on the principles of product quality and customer commitment. Quality commitments are evidenced by superior design, a regard for design detail and an upgrade of materials wherever justifiable. -
Page 5: General Specifications
GENERAL SPECIFICATIONS Gas Supply Inlet Pressure Natural Gas: Minimum 6.0" W.C. Maximum 14.0" W.C. Propane: Minimum 11.0" W.C. Maximum 14.0" W.C. Manifold Pressure Natural Gas: 5.0" W.C. Propane: 10.0" W.C. Inlet Connection Natural Gas: 1/2" Male Quick Connect. Propane: 3/8" Male Quick Connect. Electric Supply None required. -
Page 6: Clearance To Combustibles
CLEARANCE TO COMBUSTIBLES WARNING This heater will become too hot to touch. Keep hands and other body parts away from the heater. Always allow the heater to cool down before moving - this may take approximately 20 minutes. It is important to observe minimum clearance to combustibles at all times to avoid any possibility of property damage or personal injury. -
Page 7: Ventilation
VENTILATION Ensure that each heater is provided with adequate fresh air. Check with local authorities and local codes for fresh air requirements. WARNING Carbon Monoxide Poisoning: Some people are more affected by carbon monoxide than others. Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and/or nausea. If you have these signs, the heater may not be working properly. -
Page 8: Installation Sequence
INSTALLATION SEQUENCE This heater is intended for installation in structures under construction or not an occupied building as a temporary source of heat. This heater shall not be used as a permanent source of heat. The heater shall be installed such that it is not directly exposed to water spray, rain and/or dripping water. The gas supply must be installed according to local codes. - Page 9 This heater is CSA approved for suspended use. When this heater is suspended it must be suspended as illustrated in Figure 4 below. Note: This heater is equipped with a tilt switch. If the heater is knocked over on its side the heater will shut off and you will need to repeat the lighting procedure.
-
Page 10: Operation
OPERATION Lighting Procedure 1. Ensure that a qualified installer has properly purged the gas line. 2. Turn knob A (Figure 4) slightly left towards the ignition (IGN) position until reaching stop, press down and hold for five seconds (only pilot gas flows). 3. -
Page 11: Maintenance
MAINTENANCE Before each use, this heater should be inspected by an authorized and trained service person. In order to ensure that the heater continues to run properly the heater must be maintained. From time to time, dust or spider webs may build up on the air flow ports and burner assembly. This can easily be cleaned away with a brush and vacuum or blown away with compressed air. -
Page 12: Replacement Parts
REPLACEMENT PARTS Item # Part # Description 1 KS001 Upper Lid 2 KS014 Handle ‐ Left 3 KS015 Handle ‐ Right 4 KS018 Heat Exchanger 5 KS010 Protective Screen KG003 Nat. Gas Ignition Pilot Assembly 6 KG004 L.P. Gas Ignition Pilot Assembly 7 KE001 Tip Over Switch Assembly 8 KG043 Burner KG005 Nat. Gas Orifice (KA10) KG006 L.P. Gas Orifice (KA10) 9 KG041 Nat. Gas Orifice (KA08) SG015 L.P. Gas Orifice (KA08) KG014 ... -
Page 13: Warranty
WARRANTY SERIES KA CONSTRUCTION HEATERS WARRANTY The manufacturer warrants to the original owner that the product will be free of defects in material and workmanship for a period of one year. The Manufacturer’s obligation under this warranty is limited to repair or replacement, F.O.B. its facility, of the defective part.
