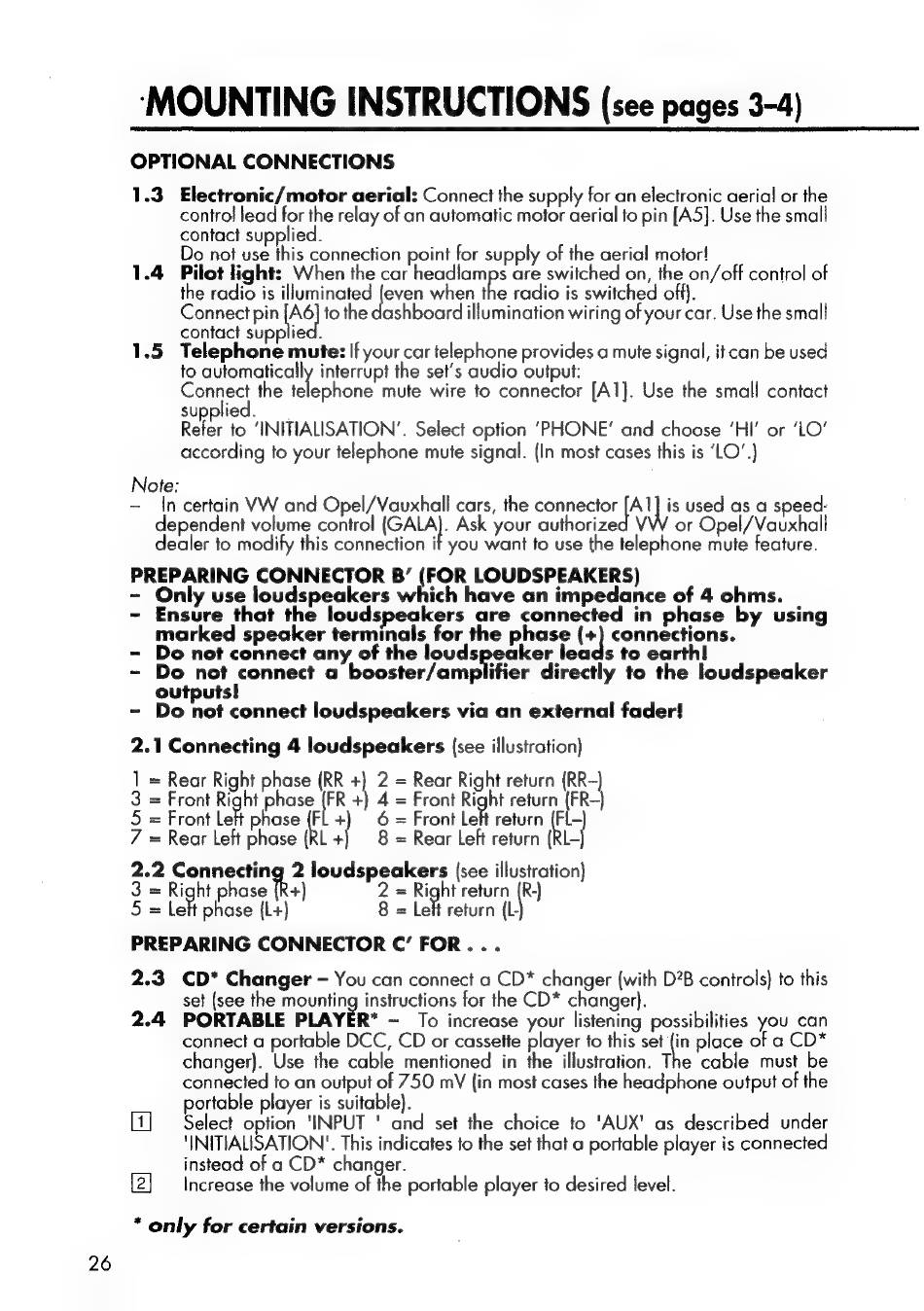

'MOUNTING INSTRUCTIONS (see pages 3-4)
OPTIONAL CONNECTIONS
1.3 Electronic/motor aerial: Connect the supply for an electronic aerial or the
control lead for the relay of an automatic motor aerial fo pin [A5]. Use the small
contact supplied.
Do not use this connection point for supply of the aerial motor!
1.4 Pilot light: When the car headlamps are switched on, the on/off control of
the radio is illuminated (even when the radio is switched off}.
Connect pin ie to the dashboard illumination wiring of your car. Use the small
contact supplied.
1.5 Telephone mute: If your car telephone provides a mute signal, it can be used
to automatically interrupt the set's audio output:
Connect the telephone mute wire to connector [Al]. Use the small contact
supplied.
Refer to 'INITIALISATION'. Select option 'PHONE' and choose 'HI' or 'LO'
according to your telephone mute signal. (In most cases this is 'LO'.}
Note:
— Incertain VW and Opel/Vauxhall cars, the connector [A1] is used as a speed-
dependent volume control dala e Ask your authorized VW or Opel/Vauxhall
dealer to modify this connection it you want to use the telephone mute feature.
PREPARING CONNECTOR B' (FOR LOUDSPEAKERS)
- Only use loudspeakers which have an impedance of 4 ohms.
~ Ensure that the loudspeakers are connected in phase by using
marked speaker terminals for the phase (+) connections.
- Do not connect any of the loudspeaker leads to earth!
- Do not connect a booster/amplifier directly to the loudspeaker
outputs
- Do hot connect loudspeakers via an external fader!
2.1 Connecting 4 loudspeakers (see illustration}
1 = Rear Right phase (RR +) 2 = Rear Right return (RR-)
3 = Front Right phase ps +) 4 = Front Right return (FR-}
5 = Front Left phase (FL+) 6 = Front Left return (FL-}
7 = Rear Left phase (RL+) 8 = Rear Left return (RL-]
2.2 Connecting 2 loudspeakers (see illustration}
3 = Right phase thi 2 = Right return (R-)
5 = Lett phase (L+) 8 = Lelt return (L-
PREPARING CONNECTOR C' FOR...
2.3 CD* Changer - You can connect a CD* changer (with D?B controls) to this
set (see the mounting instructions for the CD* changer].
2.4 PORTABLE PLAYER* - To increase your listening possibilities you can
connect a portable DCC, CD or cassette player to this set {in place of a CD*
changer}. Use the cable mentioned in the illustration. The cable must be
connected to an output of 750 mV (in most cases the headphone output of the
portable player is suitable}.
Select option INPUT ' and set the choice to 'AUX' as described under
"INITIALISATION'. This indicates to the set that a portable player is connected
instead of a CD* changer.
Increase the volume of the portable player to desired level.
* only for certain versions.
