Operating Instructions - Tektronix RG 501 Instruction Manual

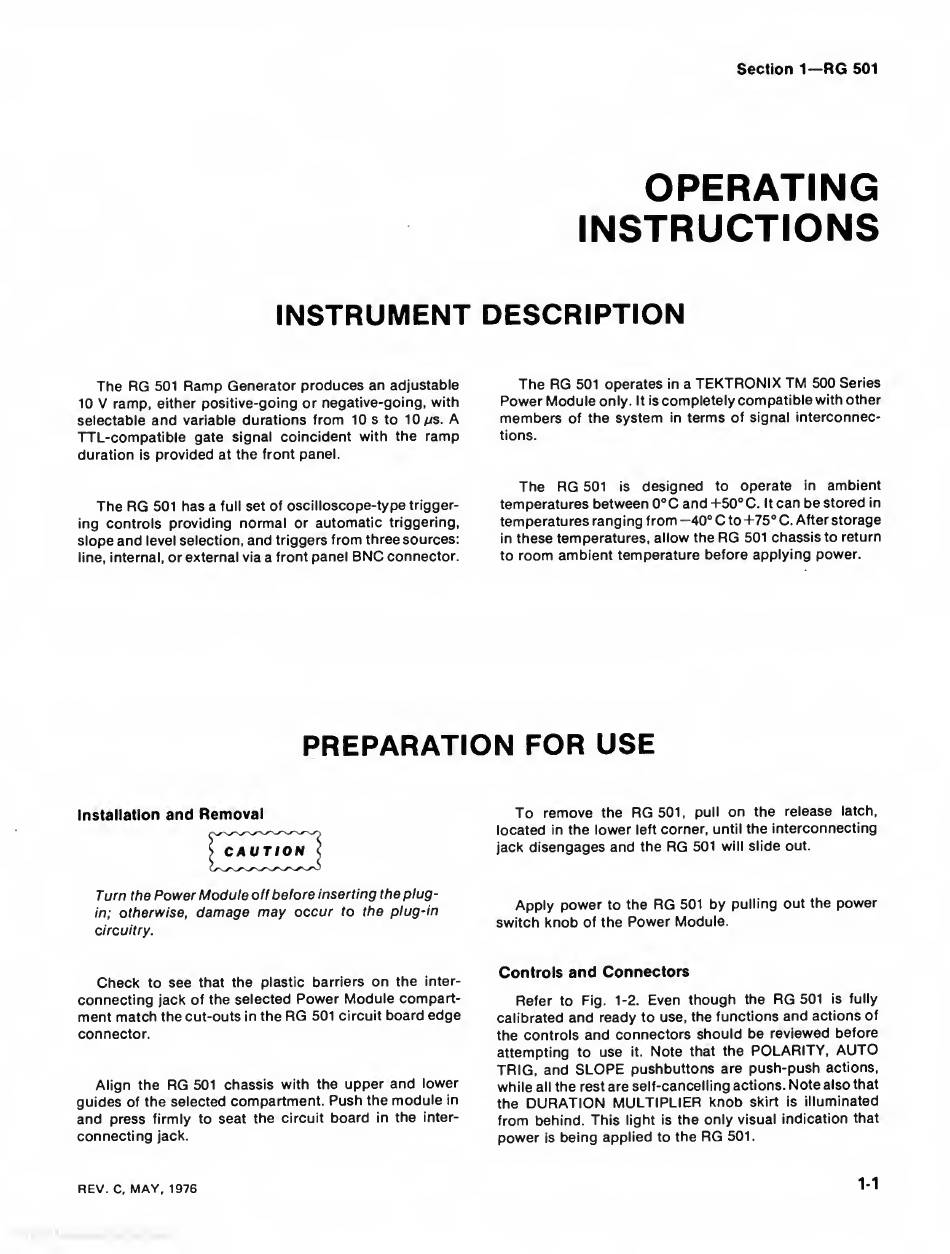

Section
1— RG
501
OPERATING
INSTRUCTIONS
INSTRUMENT
DESCRIPTION
The
RG
501
Ramp
Generator produces an
adjustable
10
V
ramp,
either
positive-going or negative-going, with
selectable
and
variable
durations
from
10 s to
10
a<s.
A
TTL-compatible
gate signal
coincident with the
ramp
duration
is
provided
at
the front panel.
The
RG
501
has a
full
set of
oscilloscope-type trigger-
ing controls providing
normal
or
automatic
triggering,
slope
and
level
selection,
and
triggers
from three sources:
line, internal,
or external via
a
front
panel
BNC
connector.
The
RG
501 operates
in
a
TEKTRONIX
TM
500 Series
Power Module
only.
It
is
completely compatible with other
members
of the
system
in
terms
of signal
interconnec-
tions.
The
RG
501
is
designed
to
operate
in
ambient
temperatures
between
0°C
and
-l-50°C.
It
can be
stored
in
temperatures ranging from
—40° C
to
+75°
C. After storage
in
these temperatures, allow the
RG
501 chassis
to return
to
room ambient temperature before applying power.
PREPARATION FOR USE
Installation
and Removal
T urn
the
Power Module
off
before inserting the plug-
in;
otherwise,
damage
may
occur
to
the plug-in
circuitry.
Check
to
see
that the
plastic barriers
on
the
inter-
connecting
jack of the
selected
Power Module
compart-
ment match
the cut-outs
in
the
RG
501 circuit
board
edge
connector.
Align the
RG
501 chassis with the
upper and lower
guides
of the selected
compartment. Push
the
module
in
and
press firmly to
seat the
circuit
board
in
the
inter-
connecting
jack.
To remove
the
RG
501,
pull
on
the release latch,
located
in
the lower
left
corner, until
the interconnecting
jack
disengages and
the
RG
501
will
slide out.
Apply power
to
the
RG
501 by pulling
out the
power
switch
knob
of
the
Power Module.
Controls
and Connectors
Refer
to Fig.
1-2.
Even though the
RG
501
is
fully
calibrated
and
ready to use,
the functions
and
actions of
the controls
and connectors should
be
reviewed before
attempting to
use
it.
Note
that
the
POLARITY,
AUTO
TRIG, and
SLOPE
pushbuttons are
push-push
actions,
while
all
the
rest
are self-cancelling actions.
Note
also that
the
DURATION
MULTIPLIER knob
skirt
is
illuminated
from behind. This
light
is
the only visual indication that
power
is
being applied to
the
RG
501
.
REV.
C,
MAY,
1976
1-1
