Safety Notice
The manufacturer is discharged from liability when damage
is caused by improper use or installation.
If any luminaire and/or accessory is subsequently modi-
fied, the persons responsible for the modification shall be
considered as manufacturer.
Product Information / Surge Protection
As an option, this luminaire can also be fitted with a surge
protector of Type 2-3 (at the time of order). The technical
data can be found directly on the installed device. If the
surge protector has been triggered by an adverse event,
the luminaire is automatically disconnected from the
mains. In that case, the LED on the surge protector no
longer lights up.
For comprehensive protection of the luminaire against
lightning and electrical surges, primary (Type 1) and
secondary (Type 2) surge arrestors must be installed into
the power supply. We recommend a combination arrestor
(Type 1+2+3), which is installed in the control cabinet.
Luminaire Replacement
The LED module can be replaced by qualified personnel
with appropriate professional qualifications and with
standard tools. To do this, disconnect the luminaire from
the power supply and open it. Replace the LED module
and close it again. Make sure that the seal is correctly
positioned and close the luminaire carefully.
WE-EF LIGHTING USA
Tel +1 724 742 0030
info.usa@we-ef.com
we-ef.com
The technical planner/installer is responsible for the pro-
per selection, sizing and installation of the surge protection
modules that must be provided on site. Please note the
various protection levels for Class I and II, as well as the
applicable statutory provisions regarding surge protection.
Installation and maintenance may only be performed by a
qualified electrician.
AFL100 LED_230223 / 006-1841
Technical specifications are subject to change.
© WE-EF 2024
WE-EF LIGHTING
Installation and
Maintenance Instructions for

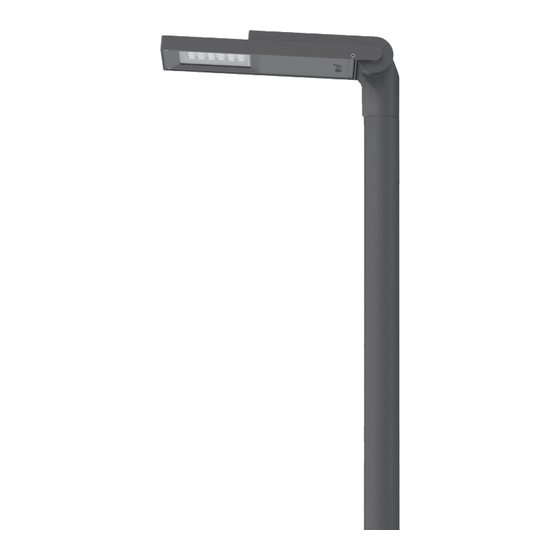

Post Mounted Luminaire
Series AFL100
