WE-EF ASP530 Installation And Maintenance Instructions Manual

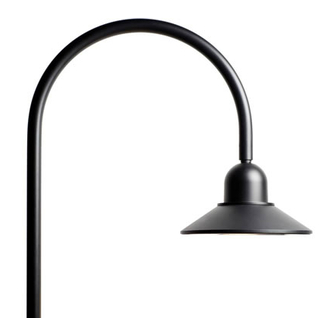

Post top luminaire

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Post Top Luminaire

ASP530 LED

Table of Contents

Do you have a question about the ASP530 and is the answer not in the manual?

Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Post Top Luminaire ASP530 LED Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.
Page 2 Post Top Luminaire ASP530...
Page 3 Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on.
Page 4 Installation Installation Procedure The product must be installed and maintained by a 1) Switch off mains electrical supply. 2) Check that rating shown on luminaire label conforms building/construction and/or electrical regulations and with mains electrical supply. relevant legislation. 3) Loosen pressure screw R and packing ring G. Place pressure screw R and packing ring G around mains Warning: Switch off mains electrical supply prior to cable C.
