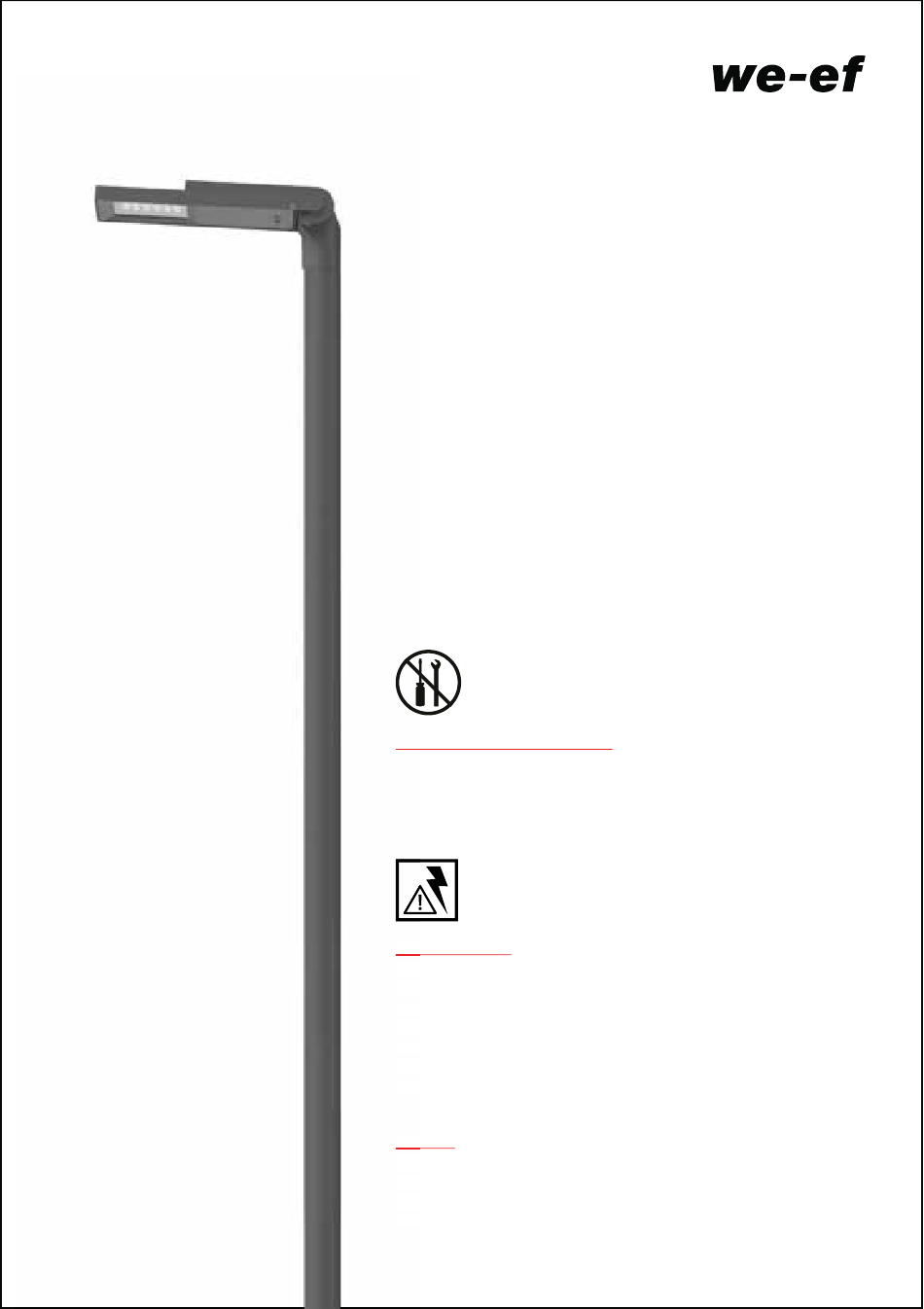

WE-EF LEUCHTEN
Installation and Maintenance
Instructions

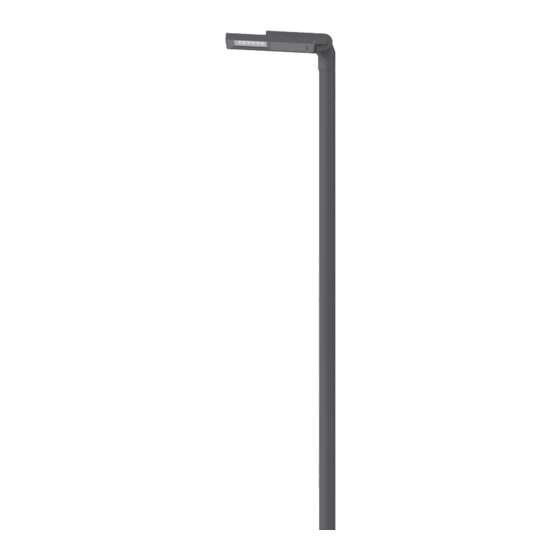

Post Mounted Luminaires
AFL100 series
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained
in this document for details.
Surge Protection
Surg g
This product features built-in surge protection circuitry in compliance
This
with applicable standards.
with
For comprehensive protection of a luminaire installation against lightning
For
and electrical surges, it is essential to cover mains supply and data input
and
lines at the distribution board level, by using respective primary (Type 1)
lines
and secondary (Type 2) surge arrestors in compliance with EN61643-11/
and
IEC61643-1.
IEC6
Warning
War
Ensure that all required surge protection measures are in place and
Ensu
activated prior to luminaire installation. Also, disconnect luminaires
activ
before operating high-power devices such as, for example, electrical
befo
arc welders.
arc w
Advertisement
Related Manuals for WE-EF AFL100 Series
Summary of Contents for WE-EF AFL100 Series
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Post Mounted Luminaires AFL100 series Do not open during installation This product is factory-sealed. Refer to the instructions contained in this document for details. Surge Protection Surg g This product features built-in surge protection circuitry in compliance This with applicable standards.
-
Page 2: Mounting Height
Post Mounted Luminaires AFL110 ø 89 191.5 AFL120 AFL130 191.5 IP66. IK08. Class I, II. T a see table in step 8, on the last page ø 9 – 14 mm 1.5 mm Tool required Mounting height 3 – 8 m –... -
Page 3: Maintenance
Weight Windage area for AFL110 max. 4.70 for AFL110 max. 0.092 for AFL120 max. 6.95 for AFL120 max. 0.146 for AFL130 max. 8.60 for AFL130 max. 0.191 Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. - Page 4 Post top and Side entry Attachment M can be mounted vertically or horizontally. To change position loosen fasteners J, rotate by 180° and refasten. For vertical mounting, attachment can be set at 0° or 2.5° by loosening screws J. For horizontal mounting, attachment can be set at 0°, 2.5°, 5°, 7.5°, 10°, 12.5°, and 15°.
-
Page 5: Installation Procedure
Installation Procedure 2) Check that rating shown on luminaire label conforms with mains electrical supply. 04/23 IP66 AFL120 LED 220-240V/50-60 Hz 102-XXXX SOE XXXXXXX LED 3000K 24W item no. XXX (example) 3) Pull the connecting cable through the pole. Place the luminaire on top of the pole and tighten fasteners B, tightening to a torque of 10 Nm. - Page 6 4) Trim mains supply cable E to the desired length and connect the leads to their respective terminals at the base of the pole (L = Phase, N = Neutral, = Earthing, DA/DA = DALI control line). Supply cable 5) Table of maximum temperature AFL110, AFL120 and AFL130. AFL110 - 8 LED AFL110 - 16 LED Power...
- Page 7 WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9280W0923 © WE-EF 2023 Technical specifications are subject to change.
