Daikin FXMQ-M Engineering Data

Ceiling mounted duct unit
Hide thumbs

Advertisement

Table of Contents

EDUS 39 - 900 - F11_a
FXMQ-M
Ceiling Mounted Duct Unit
DAIKIN NORTH AMERICA LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FXMQ-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daikin FXMQ-M

Summary of Contents for Daikin FXMQ-M

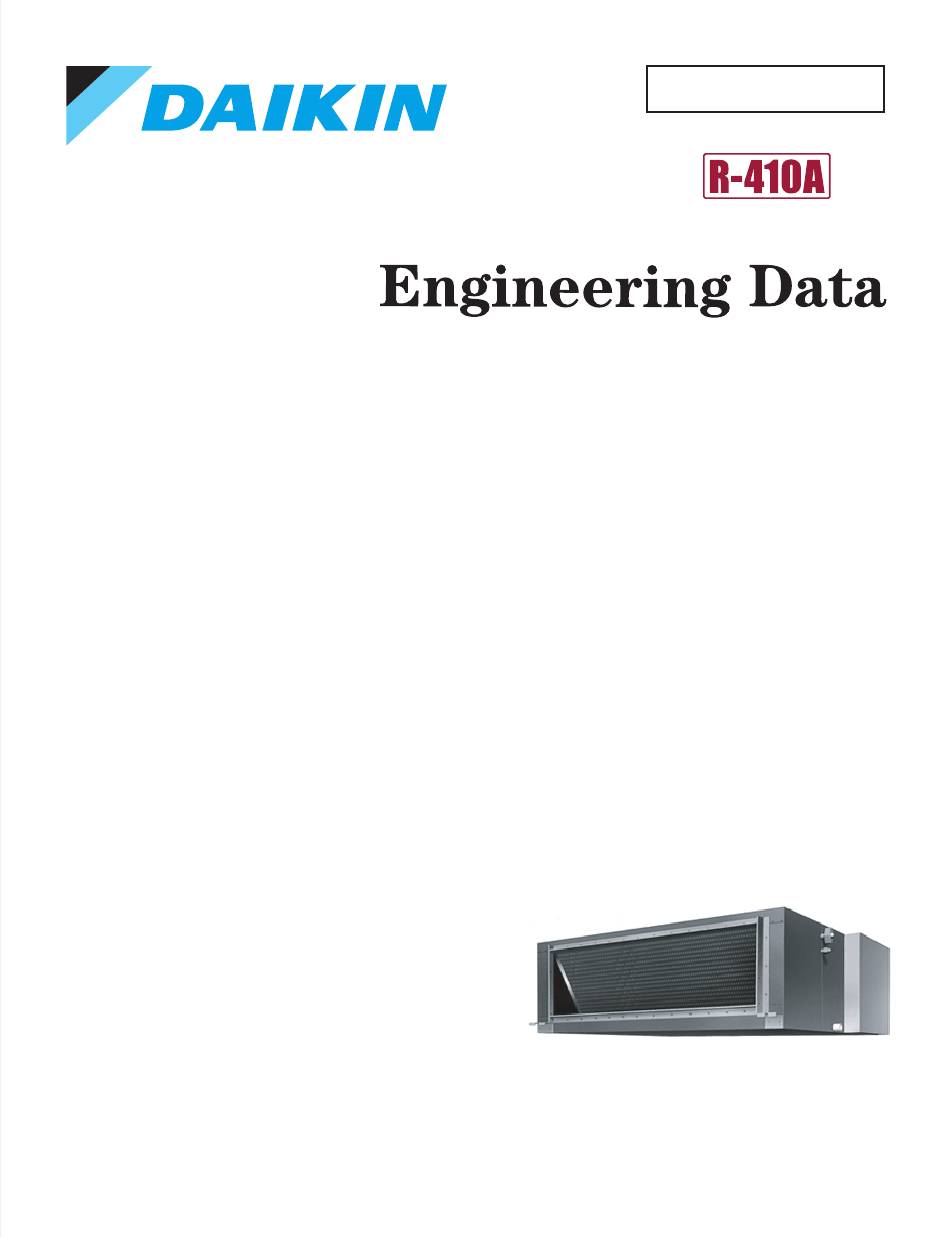

  • Page 1 EDUS 39 - 900 - F11_a FXMQ-M Ceiling Mounted Duct Unit DAIKIN NORTH AMERICA LLC...

  • Page 2: Table Of Contents

    EDUS39-900A-F11_a FXMQ-M Ceiling Mounted Duct Unit 1. External Appearance...................2 2. Specifications ....................3 3. Dimensions ....................4 4. Piping Diagrams..................5 5. Wiring Diagrams..................6 6. Electric Characteristics................7 7. Capacity Tables ..................8 7.1 Cooling Capacity ..................8 7.2 Heating Capacity ..................9 8. Fan Performances..................10 9.

  • Page 3: External Appearance

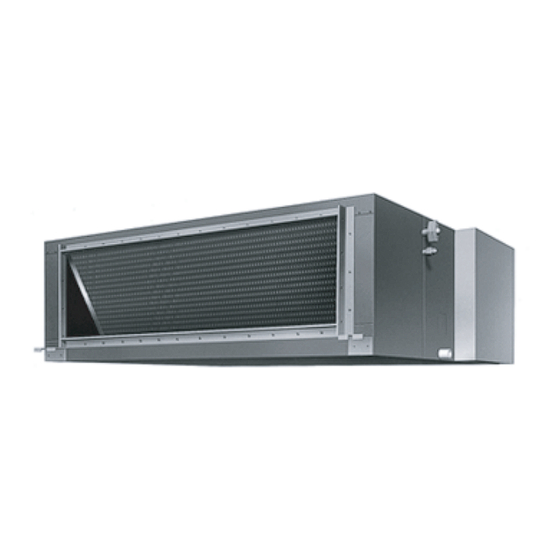

    External Appearance EDUS39-900A-F11_a 1. External Appearance FXMQ72·96MVJU FXMQ-M...

  • Page 4: Specifications

    4 Static external pressure is changeable to change over the connectors inside electrical box, this pressure means “High static pressure- Standard”.  5 Air filter is not standard accessory, but please mount it in the duct system of the suction side. Select its dust collection efficiency (gravity method) 50% or more. FXMQ-M...

  • Page 5: Dimensions

    Dimensions EDUS39-900A-F11_a 3. Dimensions FXMQ72MVJU FXMQ96MVJU FXMQ-M...

  • Page 6: Piping Diagrams

    Heat exchanger Liquid piping connection port Electronic Filter Filter expansion valve C:4D040157 R1T : Thermistor for suction air temperature R2T : Thermistor for liquid line temperature R3T : Thermistor for gas line temperature Capacity Liquid φ3/4 φ3/8 φ7/8 φ3/8 FXMQ-M...

  • Page 7: Wiring Diagrams

    Wiring Diagrams EDUS39-900A-F11_a 5. Wiring Diagrams FXMQ72/96MVJU FXMQ-M...

  • Page 8: Electric Characteristics

    4. Select wire based on the MCA. 5. Instead of a fuse, use a circuit breaker. SYMBOLS: MCA: Minimum Circuit Amps (A) MOP: Maximum Overcurrent Protection (A) Fan Motor Rate Output (kW) FLA: Full Load Amps (A) IFM: Indoor Fan Motor FXMQ-M...

  • Page 9: Capacity Tables

    101.0 65.9 75.8 63.8 85.9 67.2 94.3 71.0 96.2 73.7 97.4 67.9 99.3 65.5 75.8 63.8 85.9 67.2 92.5 71.7 94.4 73.0 95.7 66.5 97.6 64.8 TC = Total capacity ; MBh SHC = Sensible heat capacity ; Btu/hr FXMQ-M...

  • Page 10: Heating Capacity

    95.8 95.7 95.5 26.0 24.0 98.0 30.0 28.0 98.0 35.0 32.0 98.0 39.0 36.0 98.0 44.0 40.0 98.0 47.0 43.0 98.0 51.0 47.0 98.0 54.0 50.0 98.0 57.0 53.0 98.0 60.0 56.0 98.0 TC = Total capacity ; MBh FXMQ-M...

  • Page 11: Fan Performances

    1. The remote controller can be used to switch between “high” and “low”. 2. The air flow is set to “standard” before leaving the factory. It is possible to switch between “standard ESP” and “high ESP” by changing the switch in the indoor unit electrical box. 3D065628A FXMQ-M...
  • Page 12 1. The remote controller can be used to switch between “high” and “low”. 2. The air flow is set to “standard” before leaving the factory. It is possible to switch between “standard ESP” and “high ESP” by changing the switch in the indoor unit electrical box. 3D065629A FXMQ-M...

  • Page 13: Sound Levels

    3. Sound levels will vary depending on a range of factors such as the construction (acoustic absorption MICROPHONE coefficient) of the particular room in which the equipment is installed. Model 208-230V, 60Hz FXMQ72MVJU 49.0 46.0 FXMQ96MVJU 49.0 46.0 Octave Band Level 208V-230V, 60Hz FXMQ72MVJU FXMQ96MVJU 4D068573 4D068754 FXMQ-M...

  • Page 14: Center Of Gravity

    EDUS39-900A-F11_a Center of Gravity 10. Center of Gravity 4D065654 FXMQ-M...

  • Page 15: Installation

    • Safely dispose all packing and transportation materi- resulting in injury. als in accordance with federal/state/local laws or ordi- nances. Packing materials such as nails and other metal or wood parts, including plastic packing materi- als used for transportation may cause injuries or death by suffocation. FXMQ-M...
  • Page 16 (inverter or rapid start types). Install other than those specified by Daikin are used, fire or the indoor unit far away from fluorescent lamps as explosion may occur.
  • Page 17 The refrigerant charge in the and additional refrigerant system is not clear. • Be sure to mount an air filter (part to be procured in the charge noted down? field) in the suction air passage in order to prevent water leaking, etc. FXMQ-M...
  • Page 18 • Install the indoor and outdoor units, power supply wiring and connecting wires at least 3.3ft. away from televisions or radios in order to prevent image interference or noise. (Depending on the radio waves, a distance of 3.3ft. may not be sufficient enough to eliminate the noise.) FXMQ-M...
  • Page 19 (5) Insulate the two hanger brackets on the discharge side φ 1/2” 36.5 - 44.5 0.638 - 0.654 with the insulation material. Insulate the edges so that the φ 5/8” surface and edges of the hanger brackets cannot be 45.6 - 55.6 0.760 - 0.776 seen. FXMQ-M...
  • Page 20 When connecting the included piping, use the included pip- φ 3/8” ing flange hex bolts accessory (9) and spring washers 60 to 90 degrees Approx. 7-7/8in. accessory (10). φ 1/2” 30 to 60 degrees Approx. 9-13/16in. φ 5/8” 30 to 60 degrees Approx. 11-3/16in. FXMQ-M...
  • Page 21 Units Power supply Fan motor Voltage Model Volts range FXMQ72MVJU 380×2 208- Max. 253 Min. 187 FXMQ96MVJU 10.7 380×2 MCA: Minimum Circuit Amps (A); MOP: Maximum Overcurrent Protection; kW: Fan Motor Rated Output (kW); FLA: Full Load Amps (A) FXMQ-M...
  • Page 22 • For protection from uninsulated live parts, thread the power 0.97ft·lbf ±10 %) supply wiring or the transmission wiring through the included insulation tube and secure it with the included Attach insulation sleeve clamp. Round crimp-style terminal Electric wire FXMQ-M...
  • Page 23 However, branch switches and branch Remote controller ground fault circuit interrupters must be selected carefully. 2. Do not ground the equipment on gas pipes, water pipes or lightning rods, or crossground with telephones. Improper grounding could result in electric shock. FXMQ-M...
  • Page 24 Wiring Method (See ‘‘ELECTRIC WIRING WORK’’) (3) Remove the electrical components box lid (4) Add remote control 2 (slave) to the terminal block for remote controller (P ) in the electrical compo- nents box. (There is no polarity.) (Refer to Fig. 3 and 8-3.) FXMQ-M...
  • Page 25 • The power on the indoor unit is off. • The indoor unit has not been wired for power supply. No display • Incorrect wiring for the remote controller wiring, the transmis- sion wiring and / or the FORCED OFF wiring. 3P086156-13Y FXMQ-M...

  • Page 26: Accessories

    (10) Spring washer for pipe frange (M10) (2 pcs.) 3P086156-13Y Optional Accessories (For Unit) Type FXMQ72MVJU FXMQ96MVJU Item KAFJ372L280 High efficiency filter KAFJ373L280 Filter chamber KDJ3705L280 Long life replacement filter KAFJ371L280 3D065676 Optional Accessories (For Controls) : Refer to booklet of “Controls”. FXMQ-M...
  • Page 27 Accessories EDUS39-900A-F11_a FXMQ-M...
  • Page 28 2011 Daikin Industries, Limited. © Daikin, Daikin AC Absolute Comfort and its design, VRV, REFNET, and Quaternity, Daikin Altherma are trademarks of Daikin Industries, Limited. ISO 14001 is the standard defined by the ISO 9001 is a plant certification system...
