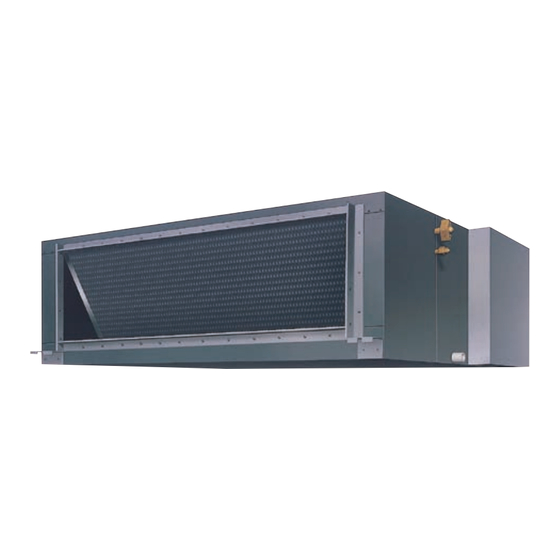

- Page 1 EDUS39-900B-F10 202103 Engineering Data Outdoor Air Processing Unit FXMQ-MFVJU 60 Hz...
-
Page 3: Table Of Contents
FXMQ-MFVJU EDUS39-900B-F10 Table of Contents 1. Features and Benefits ................2 2. Specifications .....................3 3. Dimensions ....................5 4. Center of Gravity ..................7 5. Piping Diagrams ..................8 6. Wiring Diagrams ..................9 7. Electric Characteristics ................11 8. Capacity Tables ..................12 9. Operation Limit ..................15 10. F an Performances ..................18 11. Sound Levels (Reference Data) ...............21 11.1 Overall .....................21 11.2 Octave Band Level ................22... -
Page 4: Features And Benefits
1. Features and Benefits Concealed, Powerful, Fresh Air Integration The 100% outside air processing unit provides a zoned, decentralized approach to conditioning outside air. This helps to reduce ductwork and installation time while increasing efficiency and flexibility. Both outside air treatment and space conditioning can be provided from one compact, flexible, and efficient VRV system. VRV indoor units and outdoor air processing unit can be connected to the same refrigerant line, enabling enhanced design flexibility. „ Design flexibility with a capacity range up to 96 MBH „ The nominal airflow rates are 635, 988, and 1,236 CFM „ Improved ductwork and filtration flexibility with ESP capability of up to 1.03” W.G „ Low profile design of less than 19” high to reduce required installation space „ Indoor Air Quality options include MERV 8 and 13 filters and filter boxes „ Seamlessly integrates with North American Daikin VRV systems and controllers Outside air processing unit VRV outdoor unit for outside air supply VRV indoor unit for air-conditioning... -
Page 5: Specifications
Liquid pipes ɸ3/8 (flare connection) ɸ3/8 (flare connection) Piping Gas pipes ɸ5/8 (flare connection) ɸ3/4 (brazing connection) connections Drain pipe PS1B PS1B Safety devices Fuse, Thermal protector for fan motor Fuse, Thermal protector for fan motor Refrigerant control Electronic expansion valve Electronic expansion valve R410A VRV series R410A VRV series H5 Connectable outdoor units Operation manual, Installation manual, Sealing Operation manual, Installation manual, Sealing Standard accessories pads, Screws, Clamps pads, Screws, Clamps, Connection pipes Note: H1. Nominal cooling capacities are based on the following conditions: Outdoor temperature: 91°FDB, 82°FWB (68%RH) Discharge set temperature: 64°FDB Equivalent refrigerant piping length: 25 ft (horizontal) H2. Nominal heating capacities are based on the following conditions: Outdoor temperature: 32°FDB, 27°FWB (50%RH) Discharge set temperature: 77°FDB Equivalent refrigerant piping length: 25 ft (horizontal) H3. Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat. - Page 6 Air filter H6 Sound pressure level (reference data) Weight Liquid pipes ɸ3/8 (flare connection) Piping Gas pipes ɸ7/8 (brazing connection) connections Drain pipe PS1B Safety devices Fuse, Thermal protector for fan motor Refrigerant control Electronic expansion valve R410A VRV series H5 Connectable outdoor units Standard accessories Operation manual, Installation manual, Sealing pads, Screws, Clamps, Connection pipes Note: H1. Nominal cooling capacities are based on the following conditions: Outdoor temperature: 91°FDB, 82°FWB (68%RH) Discharge set temperature: 64°FDB Equivalent refrigerant piping length: 25 ft (horizontal) H2. Nominal heating capacities are based on the following conditions: Outdoor temperature: 32°FDB, 27°FWB (50%RH) Discharge set temperature: 77°FDB Equivalent refrigerant piping length: 25 ft (horizontal) H3. Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat. H4. Air filter is not standard accessory, but please mount it in the duct system of the suction side. Select its duct collection efficiency (gravity method) 50% or more. H5. Within the range that the total capacity of indoor units is 50 to 100%, it is possible to connect to the outdoor unit.
-
Page 7: Dimensions
FXMQ-MFVJU EDUS39-900B-F10 3. Dimensions FXMQ48MFVJU... - Page 8 FXMQ-MFVJU EDUS39-900B-F10 FXMQ72-96MFVJU...
-
Page 9: Center Of Gravity
FXMQ-MFVJU EDUS39-900B-F10 4. Center of Gravity FXMQ48-96MFVJU Unit: in. Product Model Mass FXMQ48MFVJU 30-11/16 27-3/8 23-5/8 9-13/16 190Lbs FXMQ72MFVJU 54-5/16 22-7/16 9-13/16 23-5/8 271Lbs 9-13/16 23-5/8 FXMQ96MFVJU 54-9/16 22-7/16 271Lbs 4D065444... -
Page 10: Piping Diagrams
FXMQ-MFVJU EDUS39-900B-F10 5. Piping Diagrams FXMQ48-96MFVJU 4D018650D Unit: in. Model Liquid FXMQ48MFVJU ɸ5/8 FXMQ72MFVJU ɸ3/4 ɸ3/8 FXMQ96MFVJU ɸ7/8... -
Page 11: Wiring Diagrams
FXMQ-MFVJU EDUS39-900B-F10 6. Wiring Diagrams FXMQ48-96MFVJU... - Page 12 FXMQ-MFVJU EDUS39-900B-F10 FXMQ48-96MFVJU ELECTRICAL COMPONENTS AND WIRING CONNECTORS FOR INDOOR UNIT PRINTED CIRCUIT BOARD C1·C2 CAPACITOR (M1F) FUSE ( , 5 A, 250 V) (A1P) LIGHT EMITTING DIODE (SERVICE MONITOR-GREEN) MAGNETIC RELAY (M1F) MAGNETIC RELAY (M1F) MAGNETIC RELAY (M1P) MAGNETIC RELAY (Y1S) MOTOR (FAN) THERMAL PROTECTOR (M1F EMBEDDED 135°C) THERMISTOR (SUCTION AIR) THERMISTOR (COIL, LIQUID) THERMISTOR (COIL, GAS) THERMISTOR (DISCHARGE AIR) TRANSFORMAR (208 V / 230 V 25 VA) TERMINAL BLOCK (POWER) TERMINAL BLOCK (CONTROL) TERMINAL BLOCK X51A, X52A CONNECTOR ELECTRIC EXPANSION VALVE SOLENOID VALVE (HOT GAS) CONNECTOR FOR OPTIONAL PARTS X18A CONNECTOR (WIRING ADAPTOR FOR ELECTRICAL APPENDICES) C: 3D065426D...
-
Page 13: Electric Characteristics
FXMQ-MFVJU EDUS39-900B-F10 7. Electric Characteristics FXMQ48-96MFVJU Power supply Input (W) Model SCCR Volts Voltage range Cooling Heating FXMQ48MFVJU 0.380 SCCR kA rms, Max. 253 V FXMQ72MFVJU 208/230 V 0.380 Symmetrical Min. 187 V @600 V MAX: 5 FXMQ96MFVJU 0.380 Symbol: MCA: Min. Circuit Amps (A) MOP: Max. Overcurrent Protective Device (A) KW: Fan Motor Rated Output (kW) FLA: Full Load Amps (A) IFM: Indoor Fan Motor SCCR: S hort-Circuit Current Rating Note: 1. Voltage range Units are suitable for use on electrical systems where voltage supplied to unit terminals is not below or above listed range limits. -
Page 14: Capacity Tables
FXMQ-MFVJU EDUS39-900B-F10 8. Capacity Tables FXMQ48MFVJU Cooling Outdoor air temperature °FWB °FDB Capacity 13000 15900 13000 15900 18300 13000 15900 18300 23300 15900 18300 22900 18300 22900 37700 17900 22600 37300 48300 17900 22200 37000 48000 56200 21900 36600 47600 55800 59600 Heating Outdoor air temperature °FWB... - Page 15 FXMQ-MFVJU EDUS39-900B-F10 FXMQ72MFVJU Cooling Outdoor air temperature °FWB °FDB Capacity 19600 24000 19600 24000 27600 19600 24000 27600 34700 24000 27300 34400 27300 34000 56500 27000 33700 55900 72600 27000 33100 55600 72000 84200 32700 54900 71300 83800 89300 Heating Outdoor air temperature °FWB °FDB Capacity 50700...
- Page 16 FXMQ-MFVJU EDUS39-900B-F10 FXMQ96MFVJU Cooling Outdoor air temperature °FWB °FDB Capacity 26000 31800 26000 31800 36700 26000 31800 36700 46200 31800 36300 45900 36300 45600 75400 36000 44900 74700 96600 36000 44200 74000 96000 112400 43800 73300 95300 111700 119300 Heating Outdoor air temperature °FWB °FDB Capacity 63700...
-
Page 17: Operation Limit
FXMQ-MFVJU EDUS39-900B-F10 9. Operation Limit FXMQ48MFVJU... - Page 18 FXMQ-MFVJU EDUS39-900B-F10 FXMQ72MFVJU...
- Page 19 FXMQ-MFVJU EDUS39-900B-F10 FXMQ96MFVJU...
-
Page 20: Fan Performances
FXMQ-MFVJU EDUS39-900B-F10 10. Fan Performances FXMQ48MFVJU... - Page 21 FXMQ-MFVJU EDUS39-900B-F10 FXMQ72MFVJU...
- Page 22 FXMQ-MFVJU EDUS39-900B-F10 FXMQ96MFVJU...
-
Page 23: Sound Levels (Reference Data)
FXMQ-MFVJU EDUS39-900B-F10 11. Sound Levels (Reference Data) 11.1 Overall Note: n Location of microphone 1. Operation noise differs with operation and ambient conditions. 6.6 ft 3.3 ft DUCT DUCT DISCHARGE SUCTION MICROPHONE Model 208/230 V, 60 Hz FXMQ48MFVJU FXMQ72MFVJU FXMQ96MFVJU... -
Page 24: Octave Band Level
FXMQ-MFVJU EDUS39-900B-F10 11.2 Octave Band Level 208/230 V, 60 Hz FXMQ48MFVJU FXMQ72MFVJU C: 4D068575 C: 4D068576 FXMQ96MFVJU C: 4D068577... -
Page 25: Accessories
FXMQ-MFVJU EDUS39-900B-F10 12. Accessories 12.1 Optional Accessories (for Unit) Option FXMQ48MFVJU FXMQ72MFVJU FXMQ96MFVJU Drain pump kit KDU30L250VE KAF372M140 KAF372M280 High efficiency filter KAF373M140 KAF373M280 Filter chamber H1 KDJ3705L140 KDJ3705L280 Long life replacement filter KAF371M140 KAF371M280 C: 3D065445 Note: H1. Filter chamber has a suction-type flange. (Main unit does not have.) · Dimensions and weight of the equipment may vary depending on the options used. · Some options may not be usable due to the equipment installation conditions, so please confirm prior to ordering. · Some options may not be used in combination. · Operating sound may increase somewhat depending on the options used. - Page 28 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.
