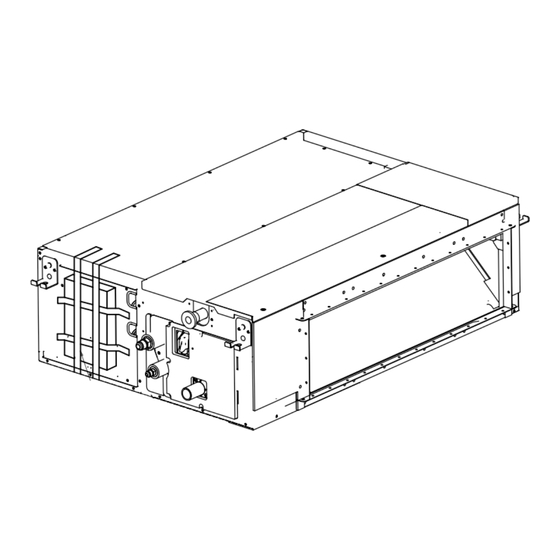

MODELS:- Ceiling-mounted Duct type
FXMQ40ARV16
FXMRQ40ARV16
FXMQ100ARV16
1. SAFETY PRECAUTIONS
Please read these "SAFETY PRECAUTIONS" carefully before
installing air conditioning unit and be sure to install it correctly.
After completing installation, conduct a trial operation to check
for faults and explain to the customer how to operate the air
conditioner and take care of it with the aid of the operation
manual. Ask the customer to store the manual for future
reference.
This air conditioner comes under the term "appliances not
accessible to the general public".
This unit is a class A product. In a domestic environment
this product may cause radio interference in which case the
user may be required to take adequate measures.
Meaning of WARNING and CAUTION notices
WARNING ............. Failure to follow these instructions
properly may result in personal injury
or loss of life.
CAUTION ..............Failure to observe these instructions
properly may result in property dam-
age or personal injury, which may be
serious depending on the circum-
stances.
!
CAUTION
• Ask your dealer or qualified personnel to carry out installation
work.
Do not attempt to install the air conditioner yourself. Improper
installation may result in water leakage, electric shocks or
fire.
• Install the air conditioner in accordance with the instructions
in this installation manual.
Improper installation may result in water leakage, electric
shocks or fire.
Consult your local dealer regarding what to do in case of
•
refrigerant leakage. When the air conditioner is to be
installed in a small room, it is necessary to take proper mea-
sures so that the amount of any leaked refrigerant does not
exceed the concentration limit in the event of a leakage.
Otherwise, this may lead to an accident due to oxygen
depletion.
SYSTEM Inverter Air Conditioners
FXMQ50ARV16
FXMRQ50ARV16
FXMRQ100ARV16
FXMQ63ARV16
FXMRQ63ARV16
Installation manual :- Pg.No. 1-13
Operation manual :- Pg.No. 14-16
• Be sure to use only the specified accessories and parts for
installation work.
Failure to use the specified parts may result in the unit falling,
water leakage, electric shocks or fire.
• Install the air conditioner on a foundation strong enough to
withstand the weight of the unit.
A foundation of insufficient strength may result in the
equipment falling down and causing injury.
•
Carry out the specified installation work after taking into
account strong winds, typhoons or earthquakes.
Failure to do so during installation work may result in the unit
falling and causing accidents.
Make sure that a separate power supply circuit is provided for
•
this unit and that all electrical work is carried out by qualified
personnel according to local laws and regulations and this
installation manual.
An insufficient power supply capacity or improper electrical
construction may lead to electric shocks or fire.
•
Make sure that all wiring is secured, the specified wires are
used, and that there is no strain on the terminal connections
or wires.
Improper connections or securing of wires may result in
abnormal heat build up or fire.
• When wiring the power supply and connecting the remote
controller wiring and transmission wiring, position the wires
so that the el. compo. box lid can be securely fastened.
Improper positioning of the el. compo. box lid may result in
electric shocks, fire or the terminals overheating.
• If refrigerant gas leaks during installation, ventilate the area
immediately.
Toxic gas may be produced if the refrigerant comes into
contact with fire.
• After completing installation, check for refrigerant gas leakage.
Toxic gas may be produced if the refrigerant gas leaks into the
room and comes into contact with a source of fire, such as a
fan heater, stove or cooker.
Be sure to switch off the unit before touching any electrical
•
parts.
Be sure to earth the air conditioner.
•
Do not earth the unit to a utility pipe, lightning conductor or
telephone earth lead. Imperfect earthing may result in elec-
tric shocks or fire.
A high surge current from lightning or other sources may
cause damage to the air conditioner.
Be sure to install an earth leakage breaker.
•
Failure to install an earth leakage breaker may result in
electric shocks or fire.
FXMQ80ARV16
FXMRQ80ARV16
1
