RETREAT FULL/QUEEN/KING PANEL BED
ASSEMBLY INSTRUCTIONS
BOX #1:
A. HEADBOARD PANEL 1 PC
B. HEADBOARD LEFT LEG 1PC
C. HEADBOARD RIGHT LEG 1PC
D. HEADBOARD STRETCHER 1PC
* HEADBOARD HARDWARE PACK
B
D
BOX #3:
G.CENTER LEGS 3 PCS
H. SIDE RAIL 2 PCS
I. CENTER SLAT SUPPORT 1 PC
HARDWARE KIT PACKED IN BOX #1
Description
No.
1
ALLEN BOLT (8x50mm)
2 SPRING WASHER (9x13mm)
3
FLAT WASHER (9x19mm)
ALLEN KEY
4
PARTS PACKING CONFIGURATIONS
BOX #2:
E. FOOTBOARD 1 PC
F. SLAT ROLL 1 SET
* BED HARDWARE PACK
A
C
G
Image Quantity
12 PCS
12 PCS
12 PCS
1 PC

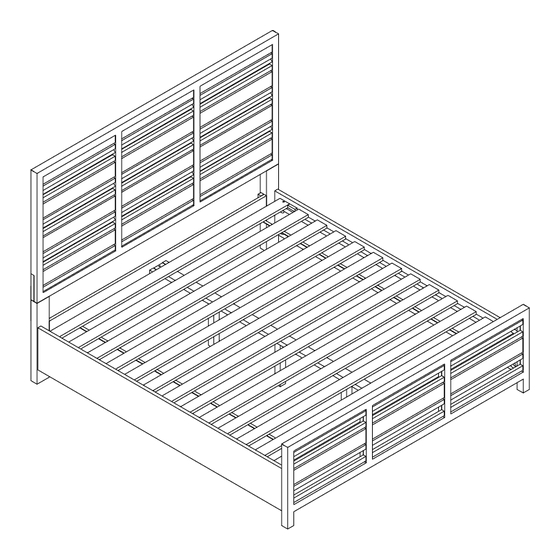

FULLY ASSEMBLED
H
HARDWARE KIT PACKED IN BOX #2
Description
No.
5
THREADED BOLT (8x80mm)
6 HALF MOON WASHER (9x28mm)
7
HEX NUT (8x13mm)
WRENCH (K13)
8
9
WOOD SCREWS (4x30mm)
F
3
00:30 Not Provided
PAGE 1 OF 6
E
I
Quantity
8 PCS
8 PCS
8 PCS
1 PC
6 PCS
