BOX #1
A.
HEADBOARD
1 PC
A

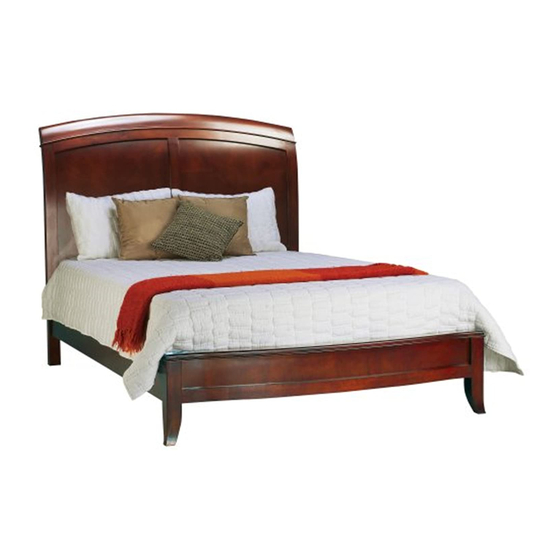

BRIGHTON SLEIGH PANEL ASSEMBLED
STEP 1 :
FIX ONE OF THE SIDERAILS (C) TO THE
HEADBOARD (A) USING PHILLIPS HEAD
BOLTS (1) AND WASHERS (5).
DO NOT TIGHTEN BOLTS COMPLETELY UNTIL
ASSEMBLY IS COMPLETED
BRIGHTON SLEIGH PANEL
FULL/QUEEN SIZE
ASSEMBLY INSTRUCTIONS
PARTS AND FITTING PACKAGING DETAIL
BOX #2
B.
FOOTBOARD
BOX #3
C.
1 PC
D.
E.
HARDWARE BOX
B
HARDWARE PACKED IN BOX #3
PHILLIPS HEAD
8
1
2
PCS
BOLT 20MM
1
3
4
ALLEN KEY
PC
TOOL REQUIRED :
PHILLIPS HEAD SCREW
DRIVER (NOT PROVIDED)
A
C
1 5
5
1
MFI
SIDERAILS
2 PCS
SLATS
3 PCS
LEG SUPPORT
3 PCS
D
WOOD SCREW
6
PCS
Ø8X30MM
ALLEN BOLT
WASHERS
3
5
PCS
40MM
C
MODUS
FURNITURE
INTERNATIONAL
C
C
E
8
PCS
8MM
A
Advertisement
Table of Contents
Related Manuals for Modus Furniture BRIGHTON LOW-PROFILE BED
Summary of Contents for Modus Furniture BRIGHTON LOW-PROFILE BED
- Page 1 BRIGHTON SLEIGH PANEL MODUS FULL/QUEEN SIZE FURNITURE ASSEMBLY INSTRUCTIONS INTERNATIONAL PARTS AND FITTING PACKAGING DETAIL BOX #2 BOX #3 BOX #1 SIDERAILS 2 PCS FOOTBOARD 1 PC HEADBOARD 1 PC SLATS 3 PCS LEG SUPPORT 3 PCS HARDWARE BOX HARDWARE PACKED IN BOX #3 BRIGHTON SLEIGH PANEL ASSEMBLED PHILLIPS HEAD WOOD SCREW...
- Page 2 STEP 2 : STEP 3 : FIX THE OTHER END OF THE SIDERAIL (C) TO THE FIX THE OTHER SIDERAIL (C) TO THE HEADBOARD (A) FOOTBOARD (B). AND FOOTBOARD (B). STEP 4 : FOLLOW THE ILLUSTRATION TO PLACE THREE BED SLATS (D) ON THE BED FRAME AND SECURE BED SLATS (D) USING WOOD SCREWS (2).
