BOX #1
A. HEADBOARD
B. HEADBOARD LEG
A
B
JULIETTE
BED ASSEMBLED

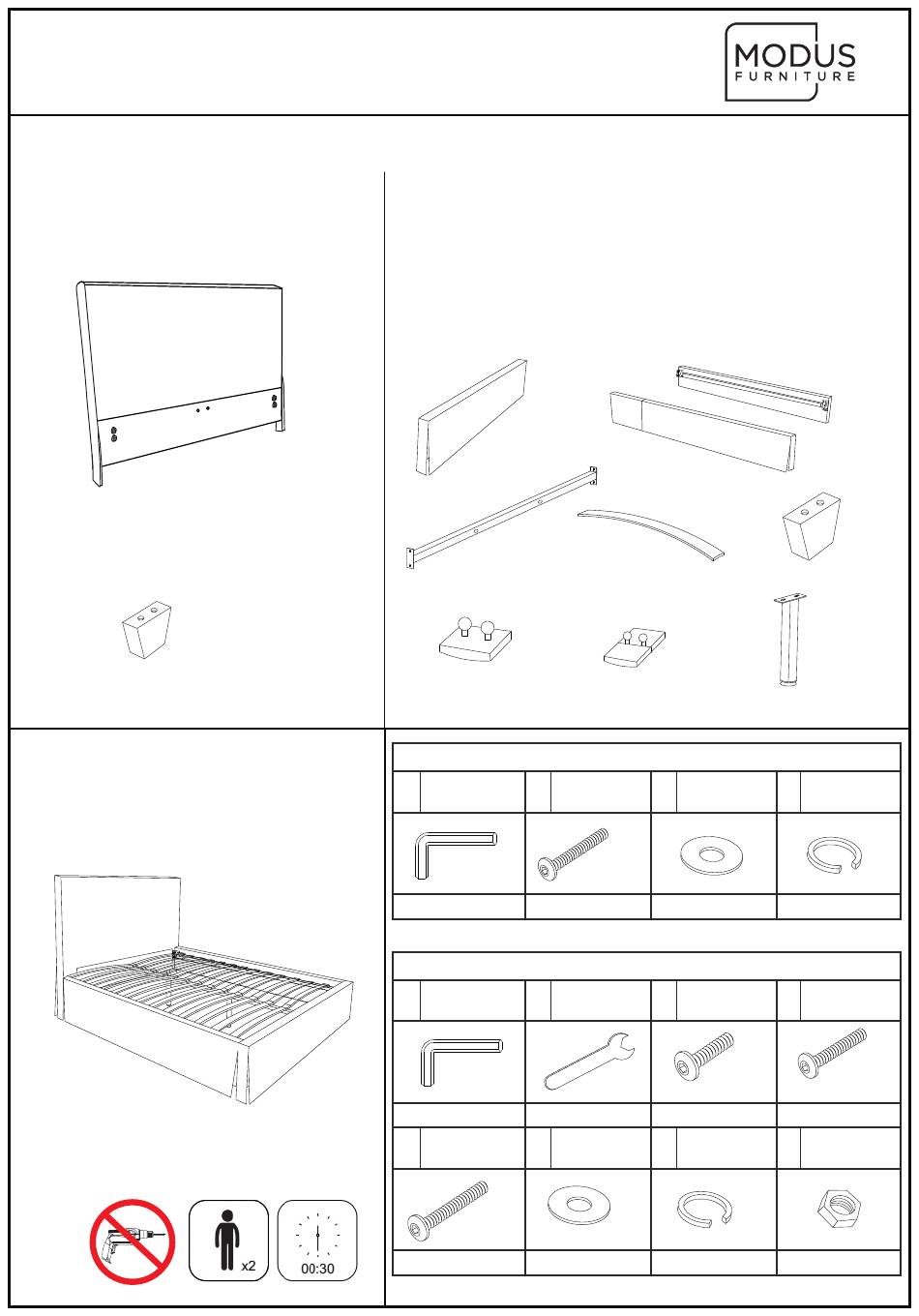

JULIETTE PLATFORM BED
FULL/QUEEN
ASSEMBLY INSTRUCTIONS
PARTS AND PACKAGING DETAIL
1 PC
2 PCS
BOX #2
C. FOOTBOARD
D. SIDE RAIL
E. FOOTBOARD LEG
F. CENTER SLAT SUPPORT
G. CENTER SUPPORT LEG
H. SLAT
I. SIDE RAIL SLAT CLIP
J. CENTER SUPPORT SLAT CLIP
C
F
I
HARDWARE PACKED IN BOX #1
ALLEN KEY
ALLEN BOLT
1
2
5/16x3-1/4"
5/16"
1PC
4PCS
HARDWARE PACKED IN BOX #2
ALLEN KEY
SPANNER
5
6
5/16"
1PC
1PC
ALLEN BOLT
FLAT WASHER
9
10
5/16x3-1/4"
4PCS
16PCS
1 PC
2 PCS
2 PCS
1 PC
2 PCS
26 PCS
26 PCS
13 PCS
D
H
J
FLAT WASHER
3
5/16"
4PCS
ALLEN BOLT
7
5/16"
5/16x1"
4PCS
LOCK WASHER
11
5/16"
5/16"
12PCS
E
G
LOCK WASHER
4
5/16"
4PCS
ALLEN BOLT
8
5/16x2-1/2"
4PCS
HEX NUT
12
5/16"
4PCS
Advertisement
Related Manuals for Modus Furniture JULIETTE
Summary of Contents for Modus Furniture JULIETTE
- Page 1 JULIETTE PLATFORM BED FULL/QUEEN ASSEMBLY INSTRUCTIONS PARTS AND PACKAGING DETAIL BOX #1 BOX #2 A. HEADBOARD 1 PC C. FOOTBOARD 1 PC B. HEADBOARD LEG 2 PCS D. SIDE RAIL 2 PCS E. FOOTBOARD LEG 2 PCS F. CENTER SLAT SUPPORT 1 PC G.
- Page 2 STEP 1 : STEP 2 : E 10 STEP 3 : UPDATED: JUNE 6TH， 2022...
- Page 4 STEP 7 : STEP 8 : STEP 9 :STARTING FROM HEADBOARD UPDATED: JUNE 6TH， 2022...
-
Page 5: Maintenance Instructions
STEP 10 : STEP 11 :FOR FABRIC TO LAY CORRECTLY CUT THREADS SECURING PLEATS. MAINTENANCE INSTRUCTIONS : INSTRUCTIONS FOR ADJUSTING LEVELERS : REMOVE BOX SPRING AND MATTRESS POSITION THE BED IN YOUR ROOM. BEFORE MOVING YOUR BED. LOCATE LEVELERS UNDER EACH SUPPORT LEG ( ). -
Page 6: Appendix A:adjustable Mattress Base Assembly Supplement
JULIETTE PLATFORM BED FULL/QUEEN ASSEMBLY INSTRUCTIONS APPENDIX A:ADJUSTABLE MATTRESS BASE ASSEMBLY SUPPLEMENT AN ADJUSTABLE MATTRESS BASE IS A FREESTANDING MATTRESS SUPPORT THAT SITS WITHIN THE PERIMETER OF THE BED FRAME. IF USING THIS BED FRAME WITH A STANDARD BOX SPRING OR FOUNDATION THESE INSTRUCTIONS DO NOT APPLY. - Page 7 G. CENTER SUPPORT LEG 4 PCS H. SLAT 39 PCS I. SIDE RAIL SLAT CLIP 26 PCS J. CENTER SUPPORT SLAT CLIP 26 PCS HARDWARE PACKED IN BOX #1 JULIETTE BED ASSEMBLED ALLEN KEY ALLEN BOLT FLAT WASHER LOCK WASHER 5/16x3-1/4" 5/16" 5/16"...
- Page 8 STEP 1 : STEP 2 : E 10 STEP 3 : UPDATED: JUNE 6TH， 2022...
- Page 9 STEP 4 : STEP 5 : STEP 6 : STOP IF USING BED WITH AN ADJUSTABLE MATTRESS BASE, SKIP STEPS 7,8,9,& 10 AND REFERENCE APPENDIX A: ADJUSTABLE MATTRESS BASE ASSEMBLY SUPPLEMENT. IF USING BED FRAME WITH STANDARD BOX SPRING OR FOUNDATION, CONTINUE TO STEP 7. UPDATED: JUNE 6TH，...
- Page 10 STEP 7 : STEP 8 : STEP 9 :STARTING FROM HEADBOARD UPDATED: JUNE 6TH， 2022...
- Page 11 STEP 10 : STEP 11 :FOR FABRIC TO LAY CORRECTLY CUT THREADS SECURING PLEATS. MAINTENANCE INSTRUCTIONS : INSTRUCTIONS FOR ADJUSTING LEVELERS : REMOVE BOX SPRING AND MATTRESS POSITION THE BED IN YOUR ROOM. BEFORE MOVING YOUR BED. LOCATE LEVELERS UNDER EACH SUPPORT LEG ( LIFT YOUR BED WHEN MOVING IT.
- Page 12 JULIETTE PLATFORM BED C.KING/E.KING ASSEMBLY INSTRUCTIONS APPENDIX A:ADJUSTABLE MATTRESS BASE ASSEMBLY SUPPLEMENT AN ADJUSTABLE MATTRESS BASE IS A FREESTANDING MATTRESS SUPPORT THAT SITS WITHIN THE PERIMETER OF THE BED FRAME. IF USING THIS BED FRAME WITH A STANDARD BOX SPRING OR FOUNDATION THESE INSTRUCTIONS DO NOT APPLY.
