FULL/QUEEN/E.KING STORAGE BED
BOX #1
A. HEADBOARD
1 PC
A

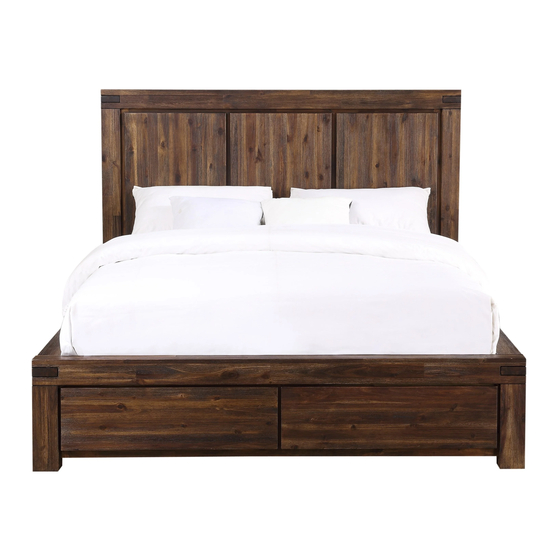

MEADOW FULL/QUEEN/E.KING STORAGE ASSEMBLED
STEP 1: Attach one side rail (C) to the
Headboard (A) using one M8x20 Allen
Bolt and Washer (H2) through the metal 'L'
bracket and one M8x40 Allen Bolt (H1)
through the wooden cleat. Do not tighten
bolts completely. Repeat steps to attach
other end of the side rail to the Footboard
(B).
MEADOW
ASSEMBLY INSTRUCTIONS
PARTS AND FITTING PACKAGING DETAIL
BOX #2
B. FOOTBOARD
1 PC
B
BOX #3
C. SIDERAILS
D. CENTER SUPPORT
E. LEG SUPPORTS
F. HARDWARE BOX
D
E
HARDWARE* PACKED IN BOX #3
ALLEN BOLT WITH FLAT
H1
WASHER
(M
8 x 40)
PCS
36
H4
WOOD SCREWS (25MM)
PCS
YOUR BOX MAY CONTAIN EXTRA HARDWARE
A
BOX #4
2 PCS
G. BED SLATS
1 PC
2 PCS
G
C
4
4
ALLEN BOLT WITH FLAT
H2
H3
WASHER
(M
8 x 20)
PCS
1
H5
ALLEN KEY
4
PC
C
B
12 PCS
2
ALLEN BOLT (
M
6 x 50)
PCS
H2
H5
H1
PAGE 1 OF 2
Advertisement
Table of Contents
Related Manuals for Modus Furniture MEADOW 3F41D4
Summary of Contents for Modus Furniture MEADOW 3F41D4
- Page 1 MEADOW FULL/QUEEN/E.KING STORAGE BED ASSEMBLY INSTRUCTIONS PARTS AND FITTING PACKAGING DETAIL BOX #1 BOX #2 BOX #3 BOX #4 A. HEADBOARD 1 PC B. FOOTBOARD 1 PC C. SIDERAILS 2 PCS G. BED SLATS 12 PCS D. CENTER SUPPORT 1 PC E.
- Page 2 STEP 2: Repeat step 1 for the second side rail. Tighten all bolts completely with the provided Allen Key (H5) STEP 3: Attach the support legs (E) to the center support (D) using three M6x50 Allen Bolts. STEP 4: Spread the slat roll (G) between the wooden blocks on the side rails.
