KLP-410 series
N0326
KLP-410 series

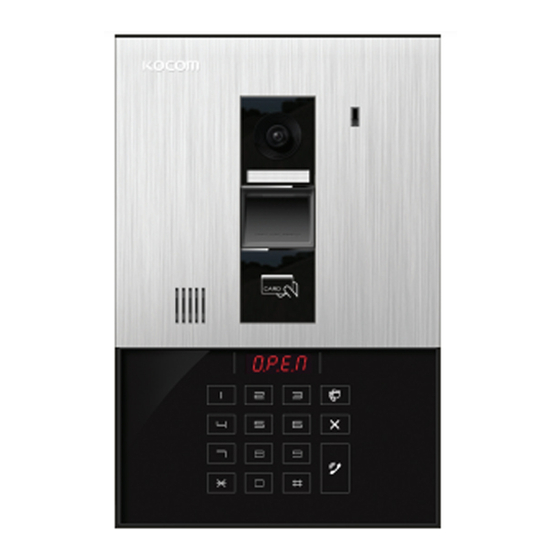

[Multiplex House Lobby Phone User/Installation Manual]
LOBBYPHONE
■ Household call & conversation feature
■ Guard call & conversation feature
■ Routed guard call feature
■ Automatic door open feature using common PIN code
■ Automatic door open feature using household PIN code
■ Automatic door open feature using RF-Card (※KLP-C410R)
www.kocom.com
User Manual
KLP-410 Series
