VTech CL1100 User Manual

Amplified corded with big buttons
Hide thumbs Also See for CL1100:

Advertisement

Quick Links

Download this manual

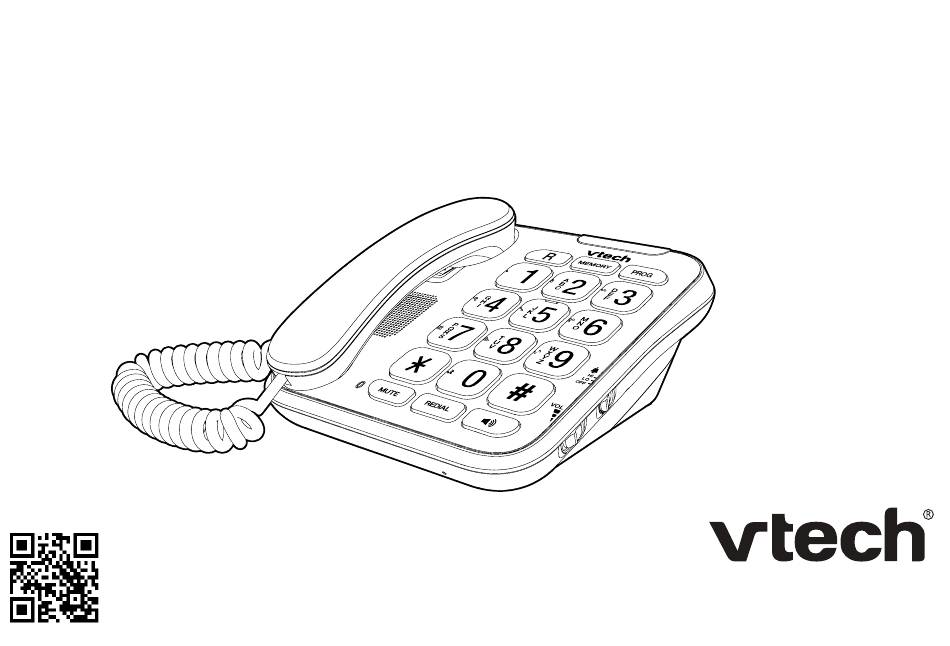

CL1100
Amplified Corded with Big Buttons
Scan the QR code for
User's manual
support information

Advertisement

loading
Need help?

Need help?

Do you have a question about the CL1100 and is the answer not in the manual?

Questions and answers

Related Manuals for VTech CL1100

Summary of Contents for VTech CL1100

  • Page 1 CL1100 Amplified Corded with Big Buttons Scan the QR code for User’s manual support information...

  • Page 2: Important Safety Instructions

    9. Refer servicing to VTech/distributor By disposing of them correctly, you will under the following conditions: help to save valuable resources and • If the product does not operate...
  • Page 3 The declaration of conformity may be Breakages to the LCD screen are not covered by the warranty. Products returned to VTech Electronics Europe Plc, should be sent to the address shown viewed at below and packed carefully to avoid damage in transit. Please do not include batteries or adaptors.

  • Page 4: What's In The Box

    What’s in the box User’s manual...

  • Page 5: Connect And Install

    Connect and install Connect the telephone base...
  • Page 6 Connect and install Connect the telephone base The telephone base is powered from the telephone line. No external power is supplied or required, and there is no battery backup.
  • Page 7 Connect and install Mount the telephone base (optional) On the rear side of the telephone base, press the tabs of the wall-mount bracket to release it from the tabletop orientation.
  • Page 8 Connect and install Mount the telephone base (optional) Flip the wall-mount bracket down and push it into the telephone base until it clicks into place.
  • Page 9 Connect and install Mount the telephone base (optional) Slide the handset Rotate it upside Slide the handset tab upward. down. tab back into the slot. The protruding edge of the handset tab holds the corded handset in place when the telephone is mounted on the wall.
  • Page 10 Connect and install Mount the telephone base (optional) CAUTION Do not drill on the wall unless: • The wall can support the weight of the telephone. • There are no wirings or 83mm/100mm plumbings hidden on the 83mm 100mm wall. •...
  • Page 11 Overview Visual ringer indicator / Line in use LED • Flashes to indicate an incoming call. • On when the telephone is in use. • Store the number to the selected memory key location . • Press to dial the numbers. 3 Dial keys (0-9) •...
  • Page 12 Overview MUTE LED • Adjust the base ringer • The light flashes when MUTE is on. volume while in idle. • Switch to tone dialing • Adjust the listening temporarily during a call. volume during a call. 12 Speaker • Hash key. Handset •...

  • Page 13: Speed Dial

    Setup Speed dial You can store up to 10 telephone numbers in the memory locations (0-9) and to make speed dial calls. We recommend you store contacts that you may need to call them more often. Add/ Store/ Change/ Remove a speed dial number 1.

  • Page 14: Talking Digits

    Setup Dial a speed dial number while offhook Press and then press the desired memory location number (0-9). • The stored number will dial out automatically. Talking digits At the base bottom, you can turn on or off the Talking digits feature. This feature announces the number pressed while offhook or during speed dial number storing.

  • Page 15: Dial Mode

    Setup Dial mode At the base bottom, you can select the dial mode by sliding the switch - Pulse dialing [PULSE] or Touch tone [TONE]. • If you need to temporarily switch to Touch tone mode, you can press in offhook mode. Flash time You can set the length of flash time.
  • Page 16 Operate Make a call Answer a call / End a call -OR- -OR- To answer a call, press or lift the corded Press or lift the handset. corded handset. To end a call, press again or hang up the corded handset. Speakerphone While using the corded Dial the telephone...
  • Page 17 Operate Volume - Speaker / Ringer Slide the Ringer control to Slide the VOL control adjust the ringer volume to adjust the corded level. handset or the speaker volume level when on a • You cannot change the call. ringer tone. CAUTION •...

  • Page 18: Call Waiting

    Operate Call waiting Redial When you subscribe to call waiting The last dialed telephone number is service from your telephone service stored in the telephone base. provider, you hear an alert tone if there is an incoming call while you are already on a call.

  • Page 19: General Product Care

    • Never use a strong cleaning agent or abrasive powder because this can damage the finish. • Retain the original packaging in case you need to ship it at a later date. Specifications are subject to change without notice. ©2023 VTech Telecommunications Ltd. All rights reserved. 12/23. CL1100_UM_UK_V2...
