Glacier bay PPDMNWHT18 Use And Care Manual

TOOLS REQUIRED
Hammer Safety goggles
Measuring tape Wall hardware
Installation
1
PREPARING FOR INSTALLATION
NOTE: Before installation, make sure all parts are present.
Compare parts with the Hardware Included list. If any part is
missing or damaged, do not attempt to install the product.
□ Determine the desired mounting location, and mark the
wall where the unit will be installed.
NOTE: For secure installation, the unit must be mounted
to at least one wall stud.
3
INSTALLING THE CABINET
□ For wall stud installation, insert #12 x 3 in. screws with
washers into the stud locations (not included).
□ For drywall installation, drill holes at the appropriate
locations and insert toggle bolts with washers (not included).
□ For concrete wall installation, drill 1/4 in. holes at the
appropriate locations and insert #12 wall anchors, followed
by #12 x 3 in. screws (not included).
4
INSTALLING THE VANITY TOP
IMPORTANT: Do not use plumber's putty.
NOTE: The faucet, drain, and supply lines are not included. Install these
parts to the vanity top according to the manufacturer's instructions.
□ Apply silicone caulk/sealant (not included) to all
four corners of the cabinet.
□ Place the vanity top onto the cabinet.
□ Position the top so that it has an equal amount of
overhang on each side and use a level to ensure
the vanity top surface is level.
□ Apply silicone onto the seam between the edge
of the vanity top and the wall, smooth the bead,
and allow to cure before use.
Phillips screwdriver Power drill
Caulk/sealant Wood shims
Item#,
Model# PPDMNWHT18, PPDMNWHT24
Use and Care Guide
HARDWARE INCLUDED
AA - Pull x 2
Level
2
POSITIONING THE CABINET
□ Move the cabinet into place,
and use wood shims to level the
cabinet against the wall.
5
INSTALLING THE HARDWARE
□ Attach the pull (AA) to the cabinet
with the provided screws (BB).
Please contact 1-888-774-8062 for further assistance.
1011504656
1011504651

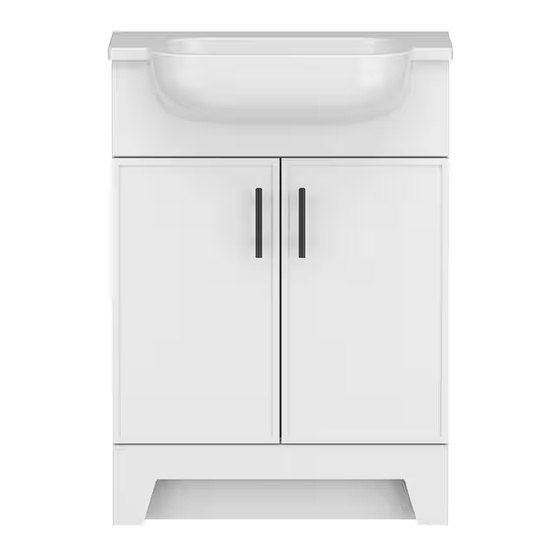

Vanity Combo
BB - Pull screw x 4
BB
AA
HOMEDEPOT.COM
