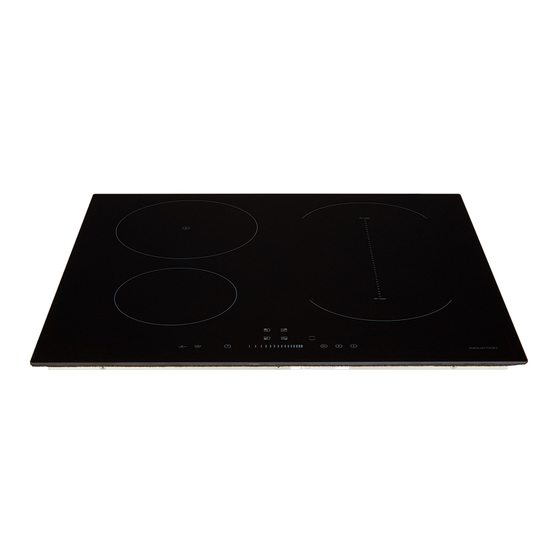

- Page 1 Induction Hob Instruction Manual / Installation Manual MODEL: CIB605...
-
Page 2: Safety Warnings
1. Foreword 1.1 Safety Warnings Your safety is important to us. Please read this information before using your cooktop. 1.2 Installation 1.2.1 Electrical Shock Hazard Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. ... - Page 3 Failure to install the appliance correctly could invalidate any warranty or liability claims. 1.3 Operation and maintenance 1.3.1 Electrical Shock Hazard Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
- Page 4 the safety cover is retracted. Use with extreme care and always store safely and out of reach of children. Failure to use caution could result in injury or cuts. 1.3.5 Important safety instructions Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.
- Page 5 agents to clean your cooktop, as these can scratch the Induction glass. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;...
-
Page 6: Product Induction
Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. -
Page 7: Operation Of Product
Read this guide, taking special note of the ‘Safety Warnings’ section. Remove any protective film that may still be on your Induction hob. 2.5 Technical Specification Cooking Hob CIB605 Cooking Zones 4 Zones Supply Voltage 220-240V~ 50Hz or 60Hz... -
Page 8: How To Use
Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency. -
Page 9: If The Display Flashes
Select a heat setting by touching the slider control • If you don’t choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1. • You can modify the heat setting at any time during cooking. -
Page 10: Flexible Area
Touching the boost control , the zone indicator show “b” and the power reach Max. Cancel the Boost function Touching the heating zone selection control that you wish to cancel the boost function. Touching the "Boost" control to cancel the Boost function, then the cooking zone will revert to its original setting. -
Page 11: Special Function
As a big zone, we suggest the used as the follow: Cookware: 250mm or 280mm diameter cookware (Square or Oval cookware are acceptable) We don’t recommend other operations except for above mentioned three operations because it might effect the heating of appliance As two independent zones To use the flexible area as two different zones, you can have two choices of heating: a) Put a pan on the right up side or the right down side of the flexible zone . -
Page 12: Locking The Controls
Touching the heating zone selection control that you wish to use the Fry function Touch the “Fry function” control. The indicator will show “F “, then the cooking zone starts fry function. b) Keep warm function • You can use the function to keep the food warm. •... -
Page 13: Setting The Timer To Turn One Or More Cooking Zones Off
If you are not selecting any cooking zone Make sure the cooktop is turned on. Note: you can use the minute minder even if you’re not selecting any cooking zone. Touch timer control, the “10” will show in the timer display and the “0”... -
Page 14: Cancel The Timer
Set the time by touching the slider control (e.g.9), now the timer you set is 95 minutes. When the time is set, it will begin to count down immediately. The display will show the remaining time. NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected. -
Page 15: Cooking Guidelines
Power level Default working timer (hour) When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minutes. People with a heart pace maker should consult with their doctor before using this unit. 4. -
Page 16: Detection Of Small Articles
return the meat to the pan and add your sauce. 6. Stir the ingredients gently to make sure they are heated through. 7. Serve immediately. 4.2 Detection of Small Articles When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. -
Page 17: Hints And Tips
Boilovers, melts, Remove these immediately with a fish • Remove stains left by melts and slice, palette knife or razor blade sugary food or spillovers as soon hot sugary spills on scraper suitable for Induction glass as possible. If left to cool on the the glass cooktops, but beware of hot cooking glass, they may be difficult to... -
Page 18: Failure Display And Inspection
The induction hob This is caused by the technology This is normal, but the noise should makes a low humming of induction cooking. quieten down or disappear completely noise when used on when you decrease the heat setting. a high heat setting. Fan noise coming from A cooling fan built into your This is normal and needs no action. - Page 19 Touch “ON/OFF” button to restart unit. High temperature of IGBT.（2#） Check whether the fan runs smoothly; if not , replace the fan. No Auto-Recovery Ceramic plate temperature sensor failure- F3/F6 -short circuit. (F3 for 1#,F6 for2#) Ceramic plate temperature sensor Check the connection or replace the F4/F7 failure--open circuit.
-
Page 20: Selection Of Installation Equipment
Heating zones of the same The power board and Check the connection. side ( Such as the first and the display board the second zone ) would connected failure; display “u” . The display board of Replace the display communicate part is board. - Page 21 Min.30mm A(mm) B(mm) C(mm) 50 min. 20 min. Air intake Air exit 5mm WARNING: Ensuring Adequate Ventilation Make sure the induction cooker hob is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unexpectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the hob.
-
Page 22: Before Locating The Fixing Brackets
9.2 Before installing the hob, make sure that The work surface is square and level, and no structural members interfere with space requirements. The work surface is made of a heat-resistant and insulated material. If the hob is installed above an oven, the oven has a built-in cooling fan. ... -
Page 23: Connecting The Hob To The Mains Power Supply
Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture) 9.6 Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. - Page 24 Yellow / Green Black Brown Blue N2 1 If the total number of heating unit of the appliance you choose is not less than 4, the appliance can be connected directly to the mains by single-phase electric connection, as shown below. Yellow / Green Black Brown...
