LEAD-IN POSITION
OUTER SIDE — INNER SIDE |
— TONE ARM HEIGHT
HIGH LOW PoP aL

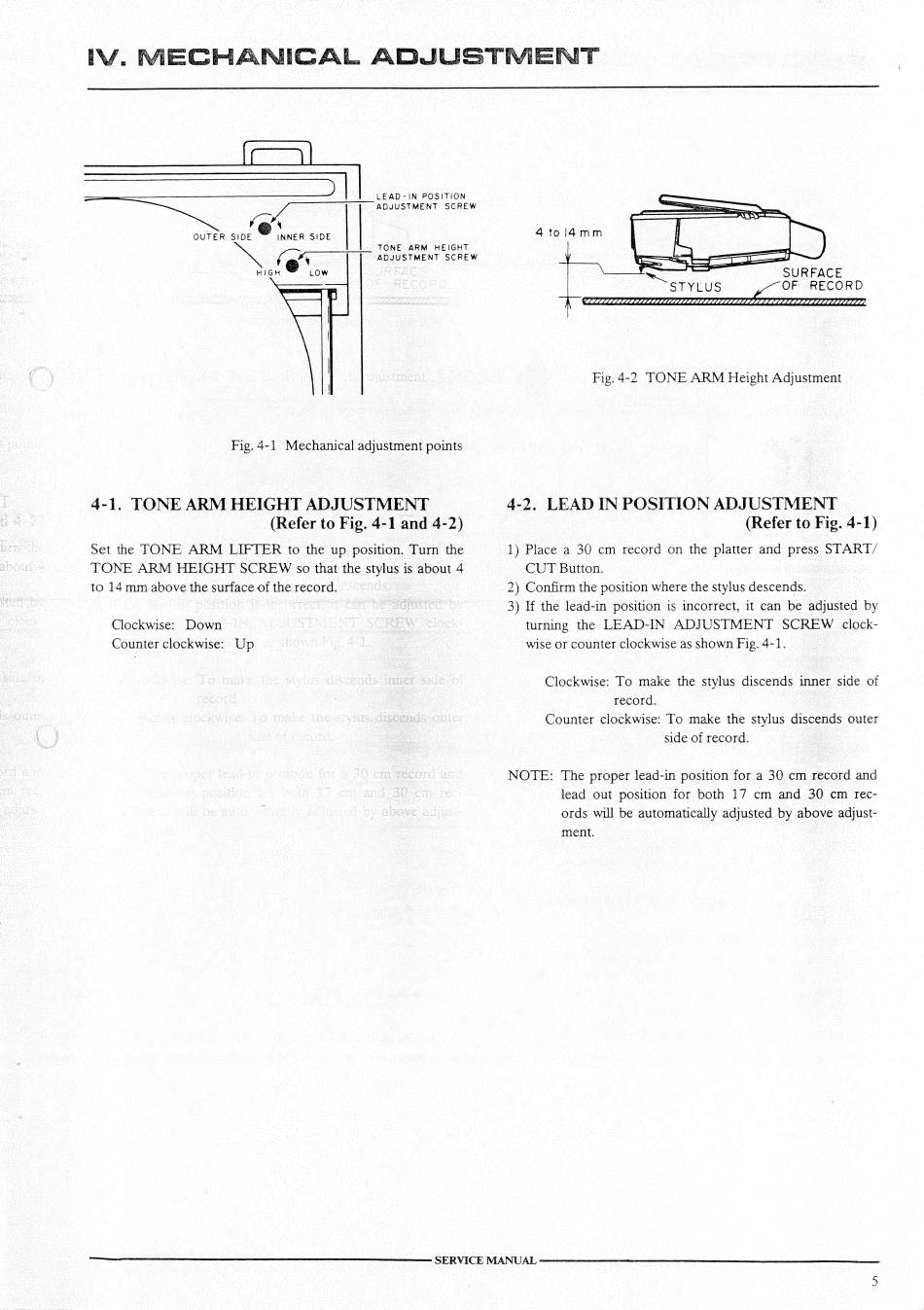

Fig. 4-1 Mechanical adjustment points
4-1. TONE ARM HEIGHT ADJUSTMENT
(Refer to Fig. 4-1 and 4-2)
Set the TONE ARM LIFTER to the up position. Turn the
TONE ARM HEIGHT SCREW so that the stylus is about 4
to 14mm above the surface of the record.
Clockwise: Down
Counter clockwise: Up
fo ADJUSTMENT SCREW
i *
TS " ADJUSTMENT SCREW
4tol4mm
SURFACE
SEYEUS OF RECORD
CoiiiivgishihihitititsikgtintnriiriiiirriicLitiirirrriie lief Cee
Fig. 4-2. TONE ARM Height Adjustment
4-2. LEAD IN POSITION ADJUSTMENT
(Refer to Fig. 4-1)
1) Place a 30 cm record on the platter and press START/
CUT Button. ee 3
2) Confirm the position where the stylus descends. _
3) If the lead-in position is incorrect, it can be adjusted by
turning the LEAD-IN ADJUSTMENT SCREW clock-
wise or counter clockwise as shown Fig.4-1.
Clockwise: To make the stylus discends inner side of
record: oe : :
Counter clockwise: To make the stylus discends outer
side of record.
NOTE: The proper lead-in position for a 30 cm record and
lead out position for both 17 cm and 30 cm rec-
ords will be automatically adjusted by above adjust-
ment. Aes
