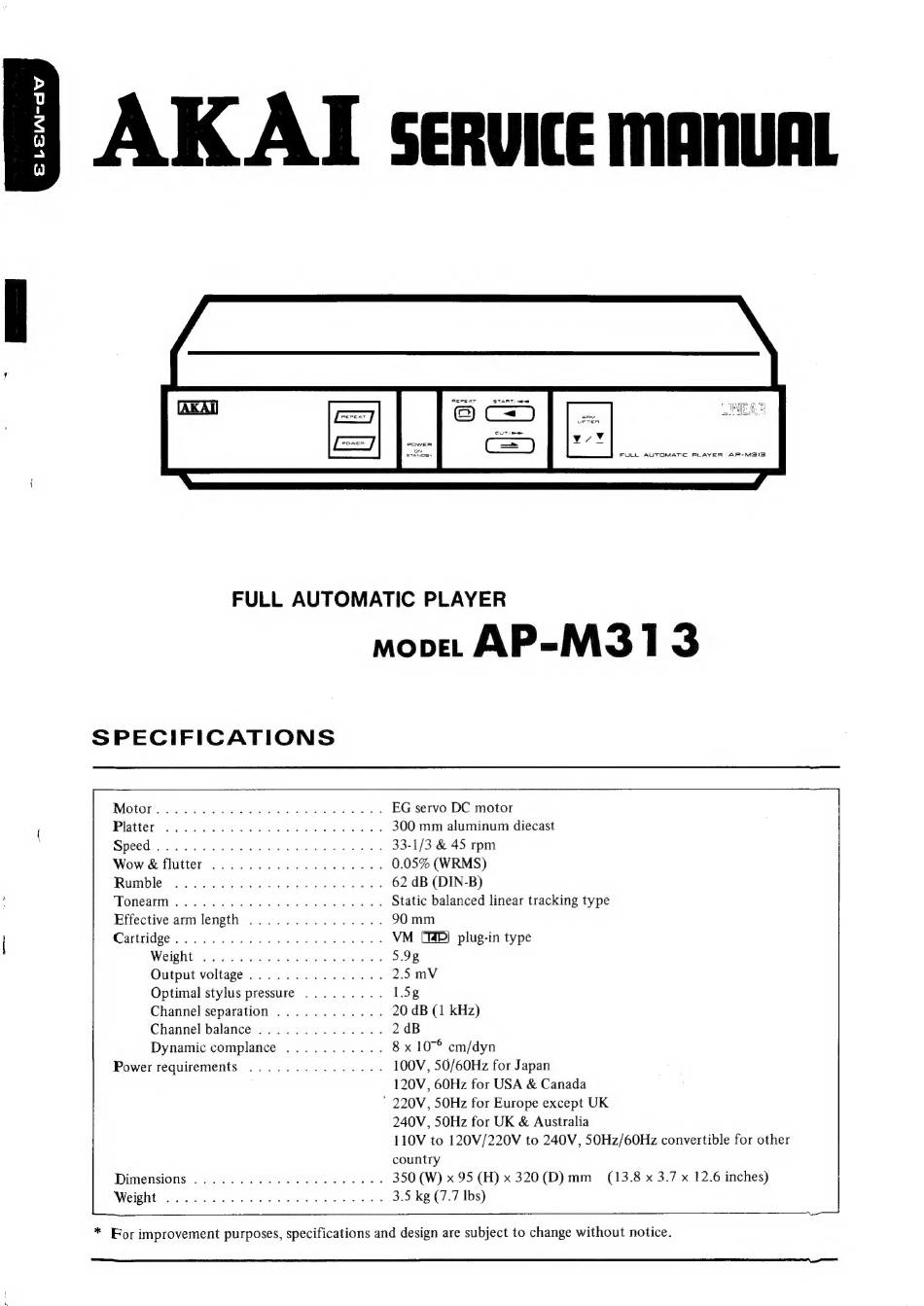

Akai AP-M313 Service Manual

p AKAT service manuat
IRIE 8.2
FULL AUTOMATIC PLAYER AP-MaIS
FULL AUTOMATIC PLAYER
move. AP-M31 3
SPECIFICATIONS
Speed
Wow & flutter
Rumble
Tonearm
Effective arm length
Cartridge
Weight
Output voltage
Optimal stylus pressure
Channel separation
Channel balance
Dynamic complance
Power requirements
Dimensions
Weight
EG servo DC motor
300 mm aluminum diecast
33-1/3 & 45 rpm
0.05% (WRMS)
62 dB (DIN-B)
Static balanced linear tracking type
90 mm
VM (4P) plug-in type
5.92
15g
20 dB (1 kHz)
2 dB
8 x 107° cm/dyn
100V, 50/60Hz for Japan
120V, 60Hz for USA & Canada
' 220V, 5OHz for Europe except UK
240V, 50Hz for UK & Australia
110V to 120V/220V to 240V, 50Hz/60Hz convertible for other
country
350 (W) x 95 (H) x 320(D) mm__ (13.8 x 3.7 x 12.6 inches)
3.5 kg (7.7 lbs)
* For improvement purposes, specifications and design are subject to change without notice.
