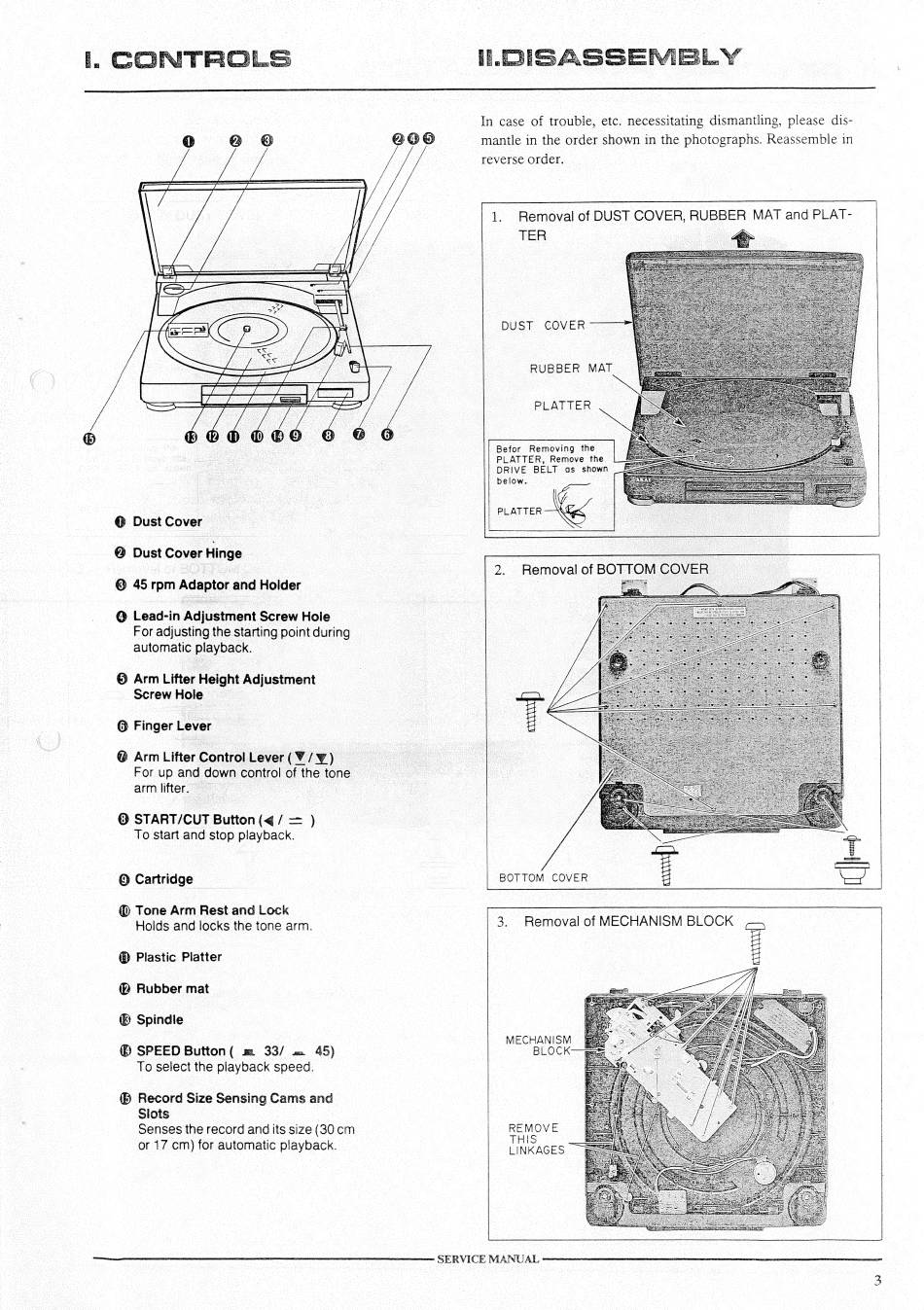

Akai AP-M600 Service Manual page 3

@ Dust Cover Hinge
© 45 rpm Adaptor and Holder
@ Lead-in Adjustment Screw Hole
For adjusting the starting point during
_ automatic playback.
© Arm Lifter Height Adjustment
Screw Hole
@ Finger Lever
@ Arm Lifter Control Lever (¥/¥)
For up and down control of the tone
armiifler,
@ START/CUT Button (</ — )
To start and stop playback.
@ Cartridge —
@ Tone Arm Rest and Lock
Holds and locks the tone arm.
@ Plastic Platter
@® Rubber mat
® Spindle
@® SPEED Button( m 33/ = 45)
To select the playback speed.
@® Record Size Sensing Cams and
Slots
senses the record anc its size (30 cm
or 17 cm) for automatic playback.
In case of trouble, etc. necessitating dismantling, please dis-
2G mantle in the order shown in the photographs. Reassemble in
reverse order.
1. Removal of DUST COVER, RUBBER MAT and PLAT-
TER ee
RUBBER MAT
PLAITER
Befor Removing the
PLATTER, Remove the
DRIVE BELT as shown
below.
PLATTER
seasee ttn
BOTTOM COVER
3. Removal of MECHANISM BLOCK
MECHANISM
REMOVE
FHIS
LINKAGES
SERVICE MANUAL
