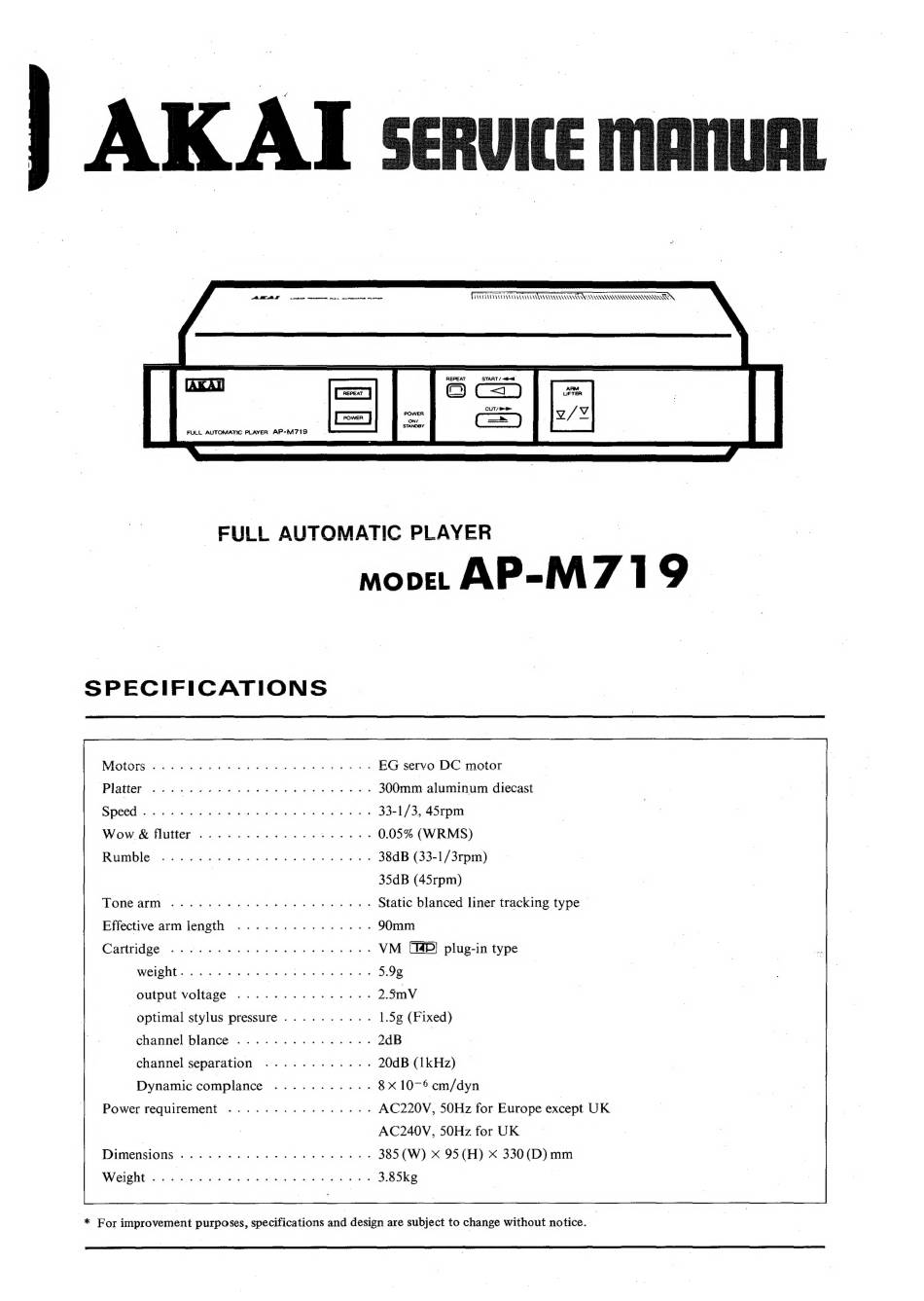

Akai AP-M719 Service Manual

DUCLTVVAAS ALAR AAVLARLA ARRAN AY AAAMAAAAARS ARE ANAND
REPEAT START / «at

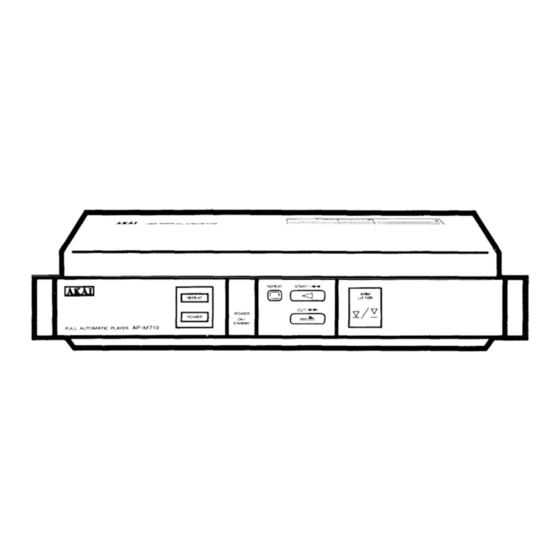

FULL AUTOMATIC PLAYER AP-M719
FULL AUTOMATIC PLAYER |
SPECIFICATIONS
Motors .......- Lee ee ee ee ee ees «| | EG servo DC motor
Platter ©. 6-0 eee ee ee ee ee ee eee 300mm aluminum diecast
Speeds beet et ee Shee wach bas BES 33-1/3, 45rpm
Wow -& flutter asc2400 2.96 es h a g eae 0.05% (WRMS)
RUMOLE: ate ee aus Se eS. Ee EO RR 38dB (33-1/3rpm)
| 35dB (45rpm)
TONG AMM: Ss ore Sere ee eR ee Static blanced liner tracking type |
Effective arm length .......-......-- 90mm
Cantidgse:..-2 ara oa Ree ae eo VM [4D) plug-in type
weight.......... ee ee 5.9g
OUtDUL Voltage: i 444 pe wee e oo} 2.5mV
| optimal stylus pressure .........- 1.5g (Fixed)
channel blance ........-...--- 2dB |
channel separation ..........-. 20dB (1kHz)
Dynamic complance ee ee 8 xX 10-6 cm/dyn
Power requirement ..... ee See ee AC220V, 50Hz for Europe except UK
AC240V, 50Hz for UK
Dimensions Bertie: Gah dds Gna eeeean as eae a 385 (W) X 95 (H) X 330(D) mm
Weight . . ee eee ee ee 3.85kg
* For improvement purposes, specifications and design are subject to change without notice.
