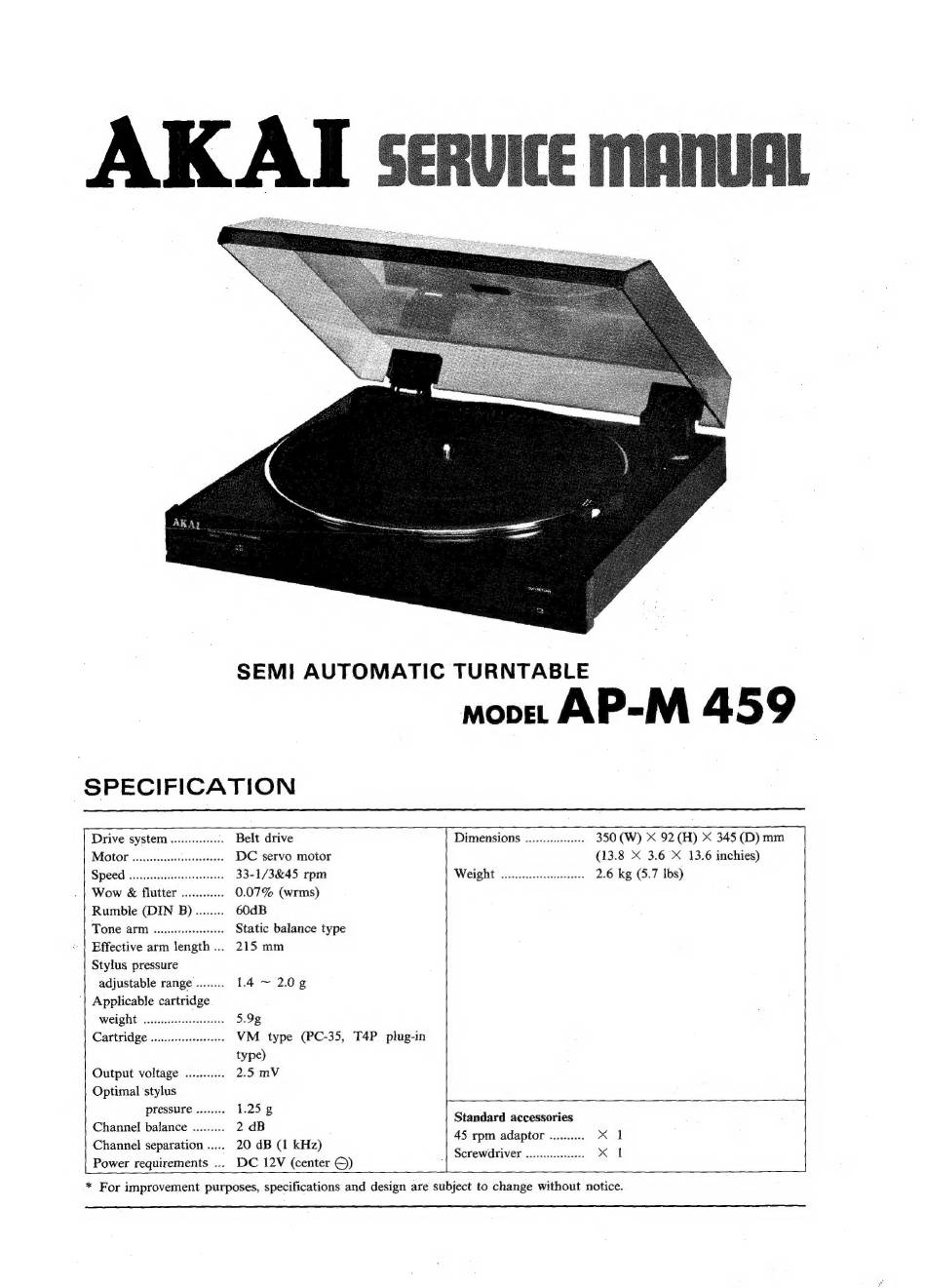

Akai AP-M 459 Service Manual

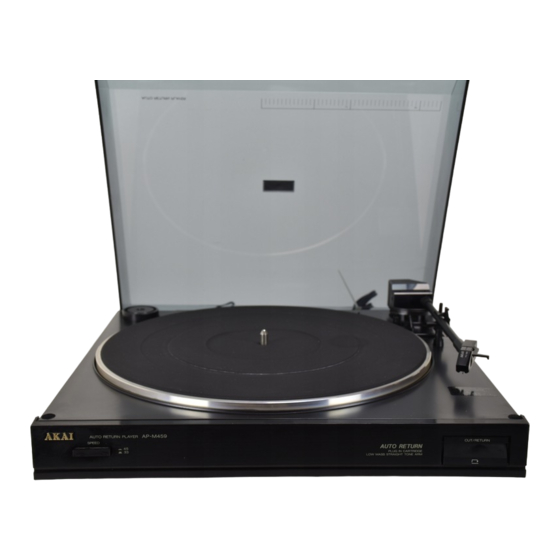

SEMI AUTOMATIC TURNTABLE
moor. AP-M 459
SPECIFICATION
Stylus pressure
Applicable cartridge
Weight oo...
Cartridge ......... ee
Output voltage ...........
Optimal stylus
pressure ........
Channel balance .........
Channel separation .....
| Power requirements ...
Rumble (DIN B)........
Tone arm ......eeeeeeeeees
Effective arm length ...
adjustable range ........
Belt drive
DC servo motor
33-1/3&45 rpm
0.07% (wrms)
60dB
Static balance type
215 mm
14 ~ 20g
5.9g
VM type (PC-35, T4P. plug-in
type)
2.5 mV
1.25 g
2 dB
20 dB (1 kHz)
DC 12V (center ©)
Dimensions ...........0000+- 350 (W) X 92 (H) X 345 (D) mm
(13.8 X 3.6 X 13.6 inchies)
WetQht :cc0-0:-csccrteccene 2.6 kg (5.7 Ibs)
|
Standard accessories
45 rpm adaptor .......... x 1
Screwdriver ..............0 x I
* For improvement purposes, specifications and design are subject to change without notice.
