3D Printing Systems CHASSIS 1.0 Build Manual page 6

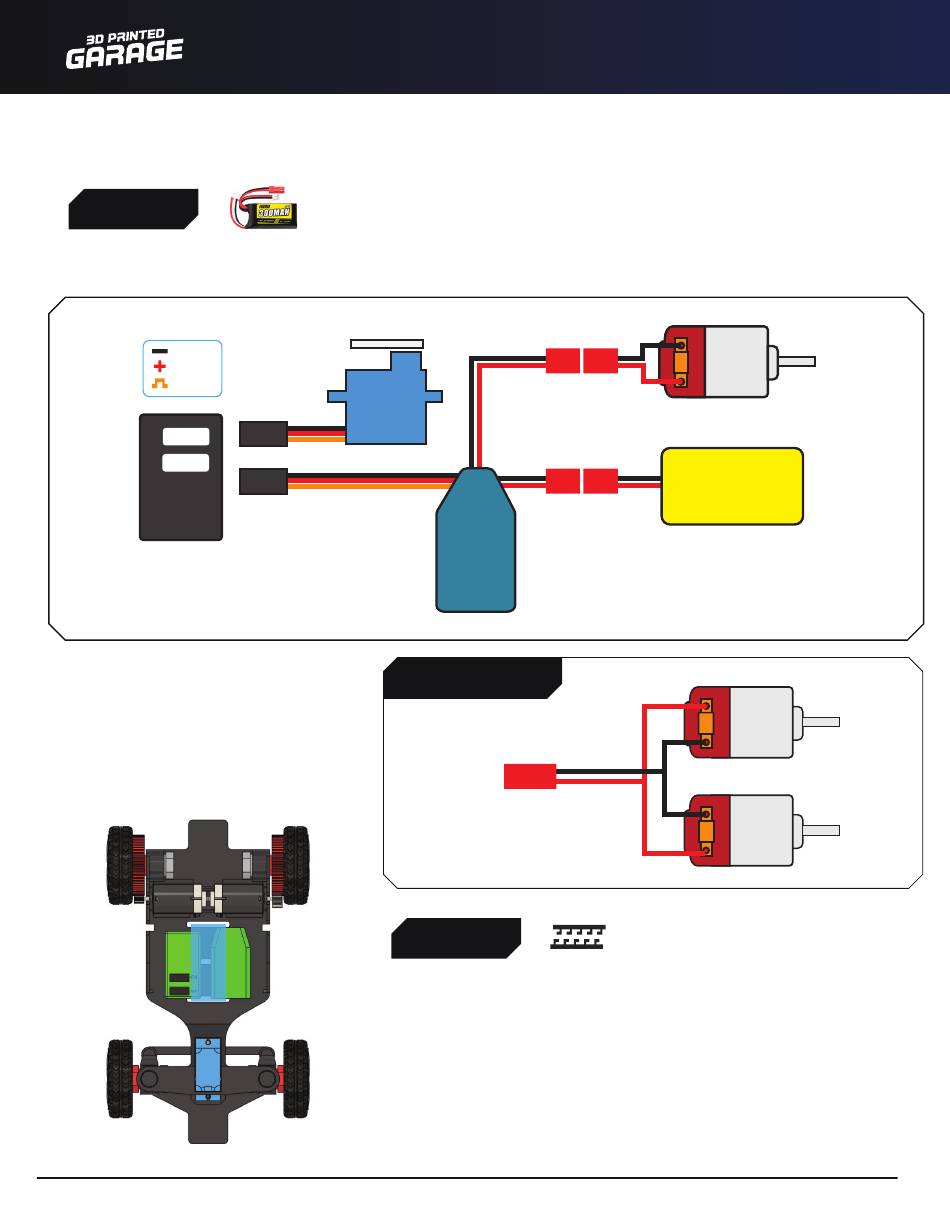

STEP 14
The chassis is now ready for final wiring. Follow the wiring diagram below
*
NEGATIVE
POSITIVE
SIGNAL
*
1
SERVO
2
ESC
RECEIVER
*REFER TO THE INCLUDED MANUAL OF YOUR RECEIVER
For dual motors, wire up the motors in
parallel, as shown in the diagram.
Note that the polarity flips for motors
to both spin in the correction direction.
CHASSIS 1.0
SERVO
ESC
DUAL MOTORS
STEP 15
Secure the battery to the chassis using adhesive
velcro or strap.
BUILD COMPLETE!
You can now power on your transmitter and ESC
to drive your 3DPG Chassis.
BUILD GUIDE
*
MOTOR
BATTERY
6
