3D Printing Systems CHASSIS 1.0 Build Manual page 4

CHASSIS 1.0

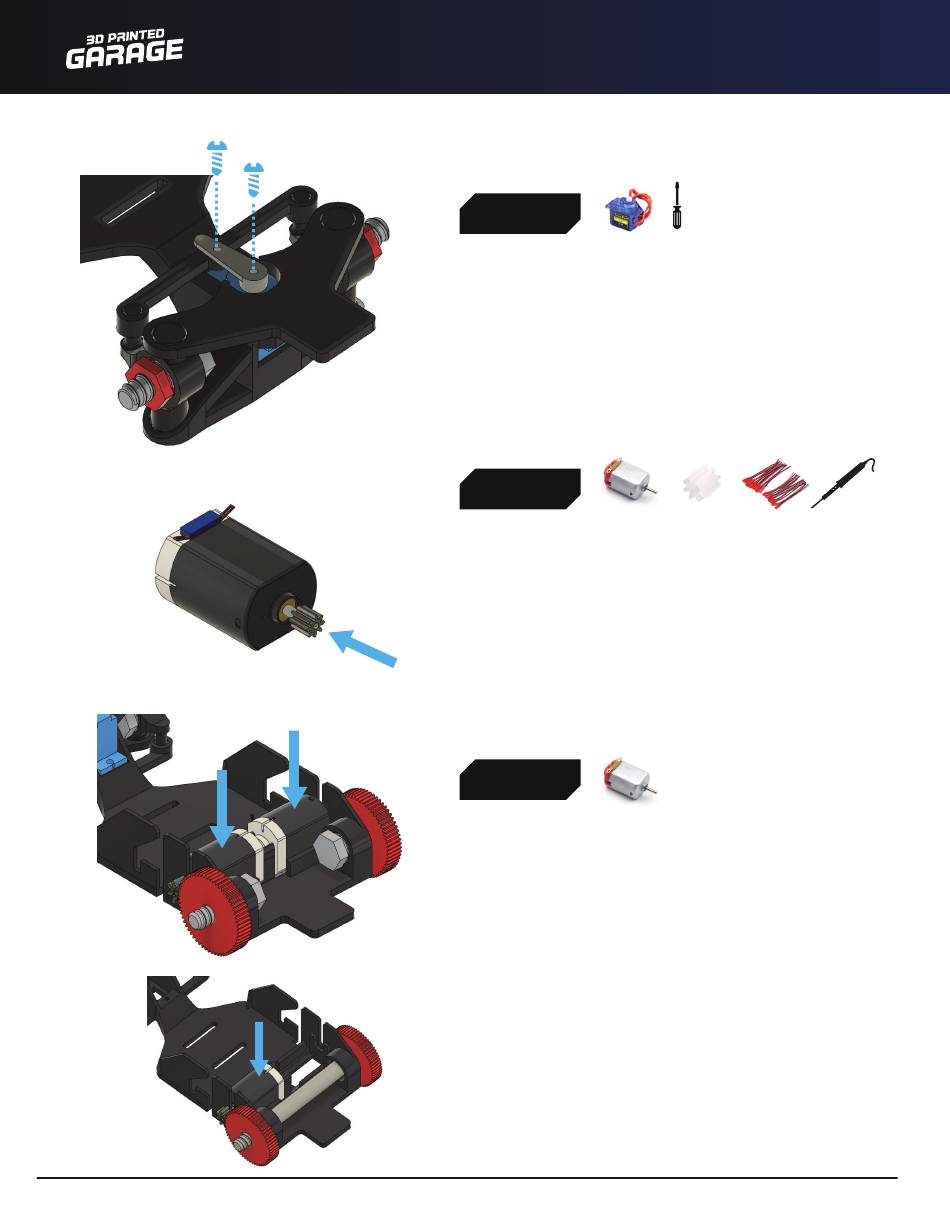

STEP 8
Flip over the chassis. Add the included steering arm
into the servo. Add 1 screw to secure the arm to the
servo. Using an extra screw, attach the servo arm
to the steering linkage.
STEP 9
Set the chassis aside. Press fit the spur gear on the
DC motor shaft. Solder the JST connector to the
motor leads (refer to the wiring diagram on page 6)
STEP 10
Install the DC motor into the chassis. This should
snap-fit into place, meshing with the rear wheel
gears.
Note: For single motor configuration, you will
use one motor in either mount.
BUILD GUIDE
4
