DUAL MOTOR
CONFIGURATION
SINGLE MOTOR
CONFIGURATION
CHASSIS 1.0

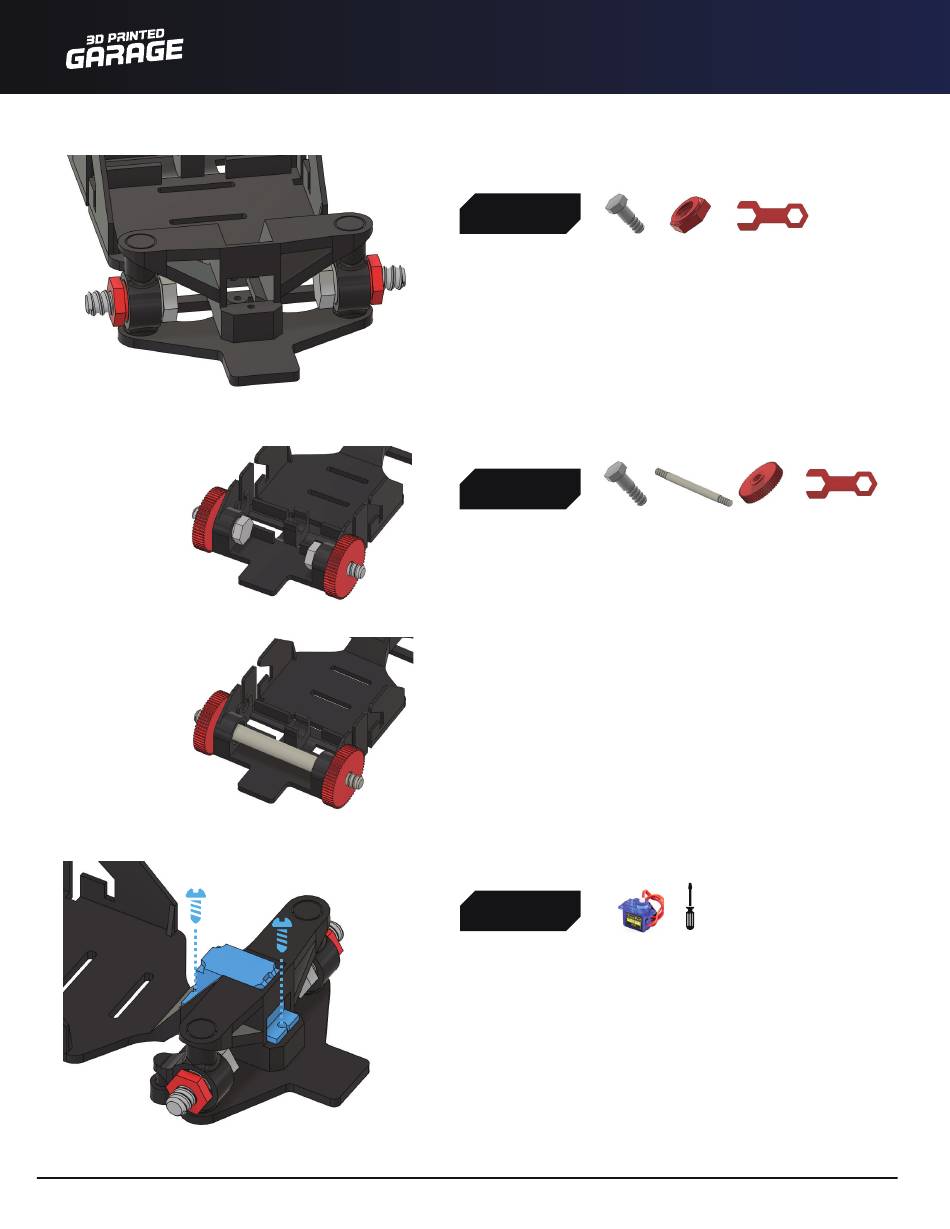

STEP 5
Add the front bolts and nuts through the ball
bearings. The nut will stop at a set distance. Wrist
tight and then tighten extra with the 3DPG wrench.
STEP 6
Repeat the same steps for the rear. These gears will
receive force from the motors, so make sure they
are snug. Be careful not to over-tighten and snap
the 3D print.
Note: For single motor configuration, you will
use the single axle part.
STEP 7
Slide the servo through the top opening. Make sure
the circular motor feature is oriented towards the
front of the chassis.
Insert the included screws in the pre-placed holes.
