3D Printing Systems CHASSIS 1.0 Build Manual page 2

CHASSIS 1.0

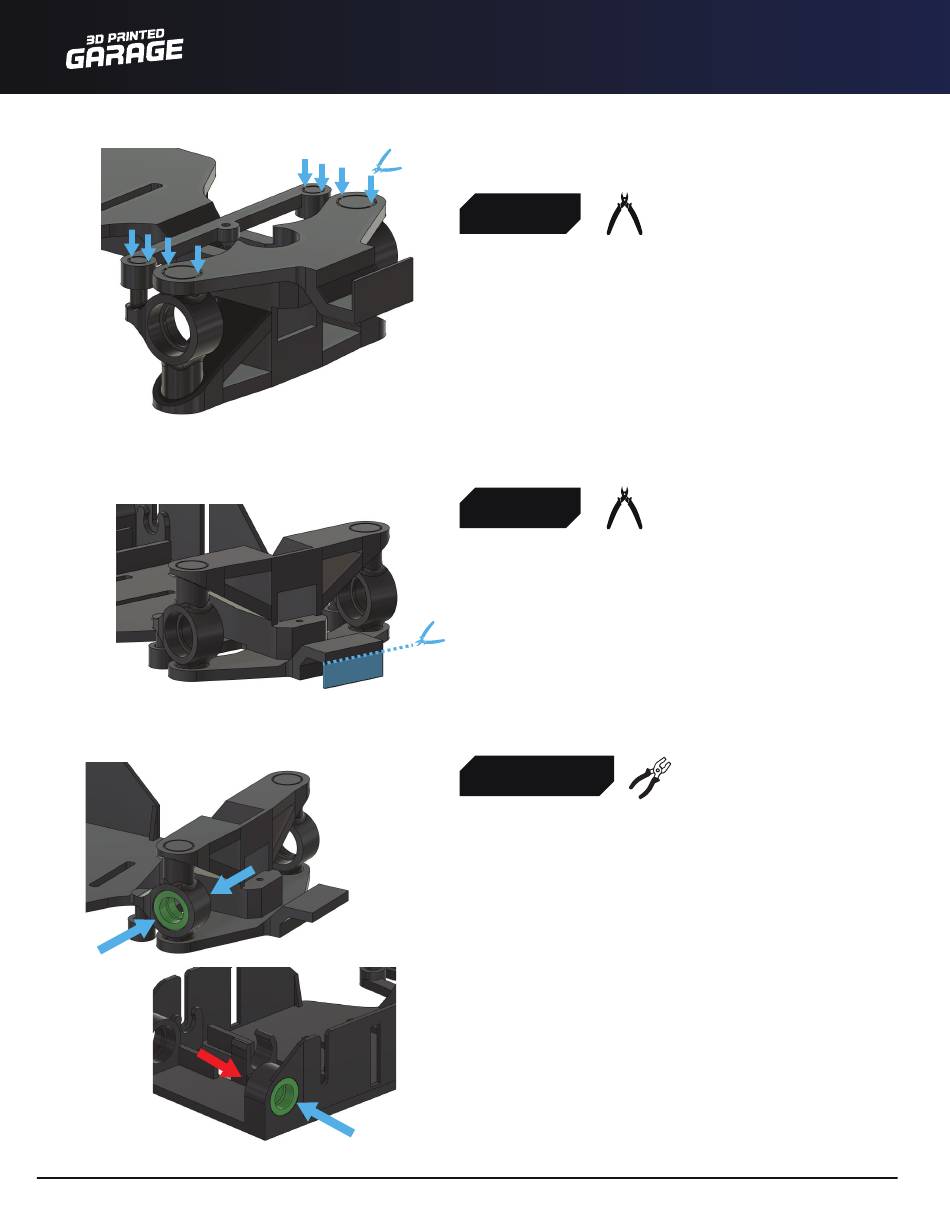

STEP 1
The chassis has built-in support to keep the
steering linkage in place while printing. Gently
move the steering linkage left and right to break off
supports. Alternatively, carefully snip the supports
on the bottom using flush cutters.
STEP 2
Remove the built-in support on the front tab
with flush cutters.
STEP 3 & 4
Add 2 MR128 ball bearings in each of the front
steering knuckles. The fit should be snug. You
may need a wrench to press-fit bearings fully.
Moving the linkage left and right will help set
the inside bearings.
Repeat this process for the two rear knuckles.
Note: For single motor configuration, you do
not need to insert the inside rear bearings,
mark by the red arrow.
BUILD GUIDE
2
