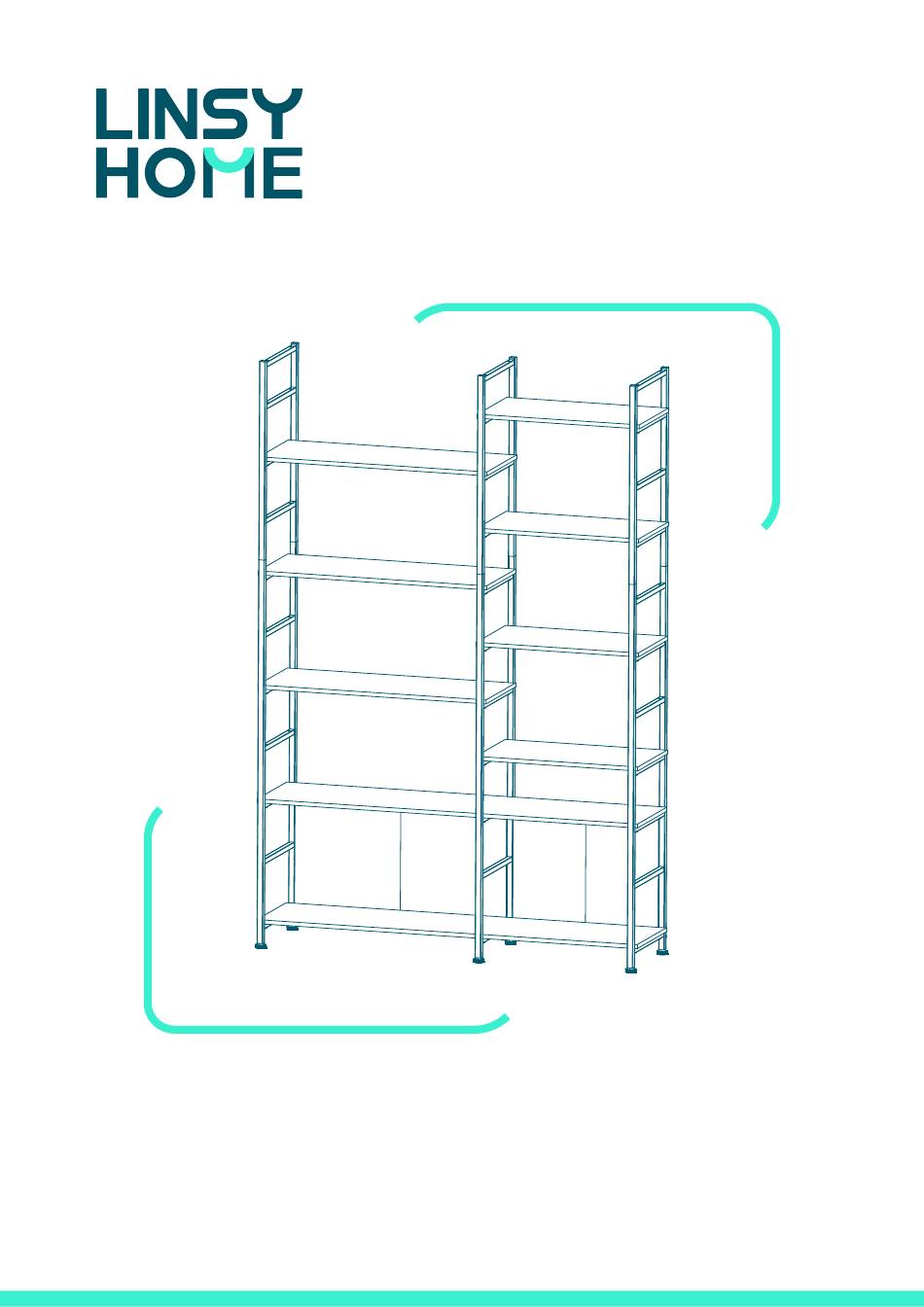

- Page 1 LH022Y2-A / LH022Y2-B ASSEMBLY INSTRUCTIONS - please keep for future reference. IMPORTANT - please read these instructions before assembly.
- Page 2 Safety And Care Advice Important – Please read these instructions fully before starting assembly. Please check if all the components and tools listed Please assemble the product as close toits on pages 3 - 4 are received. final position as possible. Please remove all fittings from the plastic bags and Do not place furniture directly in front of separate them into homologous groups.
- Page 3 Components Pl ease check if all the pi eces li sted below ar e rece ived. Black Plastic Top Cover Middle Panels x 3pcs Short Panels x 4pcs Long Panels x 2pcs Top Brackets x 3pcs Bottom Brackets x 3pcs X-bar Short Reinforcement x2pcs X-bar Long Reinforcement x2pcs Nails x 21pcs...
- Page 4 Assembly Instructions Please check if all the pieces listed below are received.
- Page 5 Assembly Instructions Plea se u se the s crews correc tly, otherwi se the produ ct will be seriously damag ed! Step 1 Stand the brackets sideways on the ground. Install the long panels by locking screws C x 2 pcs according to hole position.
- Page 6 Assembly Instructions Step 3 F x 2 pcs G x 2 pcs J x 8 pcs K x 2 pcs Fasten x-bar reinforcement by screws. In particular , the intersection of the x-bar reinforcement should use the screws J and the nuts K. Step 4 D x 3 pcs J x 6 pcs...
- Page 7 Assembly Instructions Step 5 Install the short panels and middle panels in order. C x 3 pcs B x 4 pcs I x 28 pcs Step 6 P x 6 pcs Install the leveler feet. High Lower If it is not stable,adjust the leveler feet.
- Page 8 Assembly Instructions Step 7 2 Knock plastic parts 4 Install the strap 1 Drill holes 3 Install screws WALL WALL WALL WALL Install the furniture anchors by drilling holes on the wall and the leveler feet based on needs. O x 2 pcs...
