To use the middle setting, start at the widest angle setting and slowly push the leg inward while
pressing on the leg angle adjustment latch. When the middle angle setting is reached the latch will
depress and lock into place, preventing it from pivoting outward.

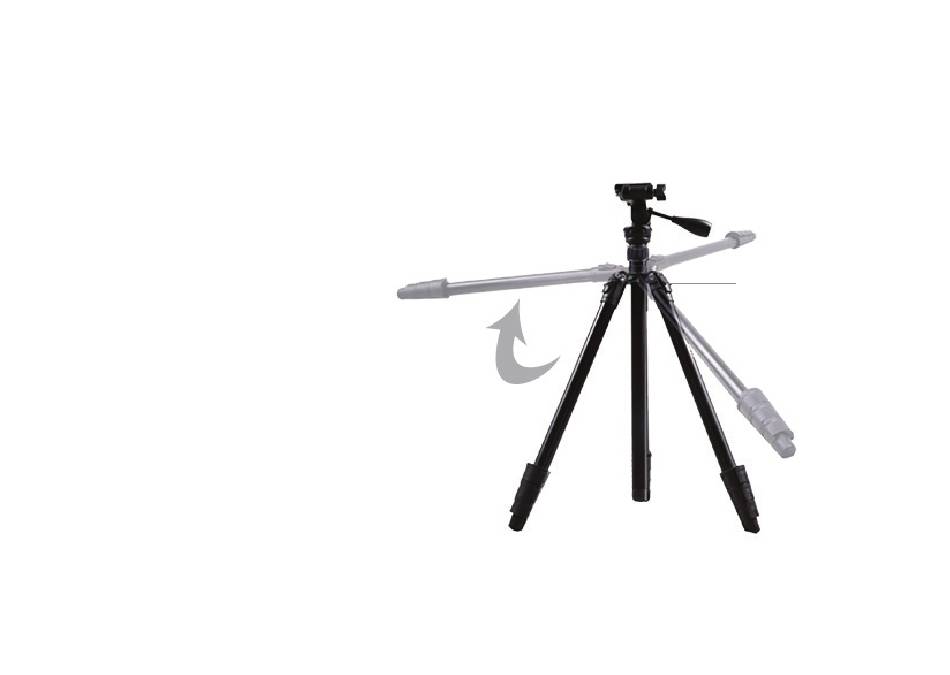

To return to the standard leg angle, continue to push the leg
inward while pressing on the leg angle adjustment latch
until it locks into place. The angle of each leg can be set
independently of the other two legs.
NOTE: The leg angle adjustment latch only prevents the legs
from pivoting outward. The tripod legs can always
be pushed inward regardless of the position of
the adjustment latch.
Leg angle
adjustment latch
