Celestron 93606 Instruction Sheet

PHOTOGRAPHIC / VIDEO TRIPOD
INSTRUCTION SHEET
MODEL #93606

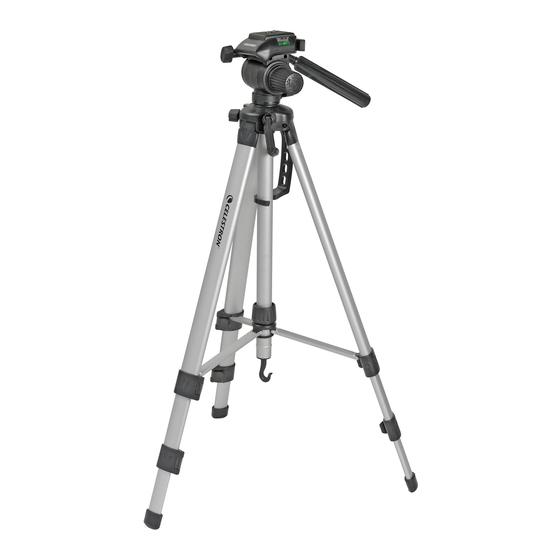

The Celestron Photographic Tripod is a stable platform for a camera, spotting scope, video camera, or pair of binoculars (with the
appropriate adapter). The tripod legs are made of heavy-duty tubular aluminum, which eliminates unwanted flexure and increases
rigidity. The three-way pan head makes vertical and horizontal panning smooth.
The diagram below highlights the various parts of the tripod.
Altitude Locking Knob
Leg Clamps
SETTING UP YOUR TRIPOD
The Celestron Photographic Tripod comes fully assembled.
To set up the tripod for use, remove the tripod along with the
pan handle from the box and its soft case. Loosen the Center
Column Tension Adjustment by turning it counterclockwise.
Center Column
Extension Handle
Quick Release Plate
Pan Handle
Carrying Handle
Storage Hook
Pull the legs away from the center column so that the tripod
will stand by itself. Tighten the tension adjustment. To collapse
the tripod after use, loosen the tension adjustment again and
fold the legs back to the center.
