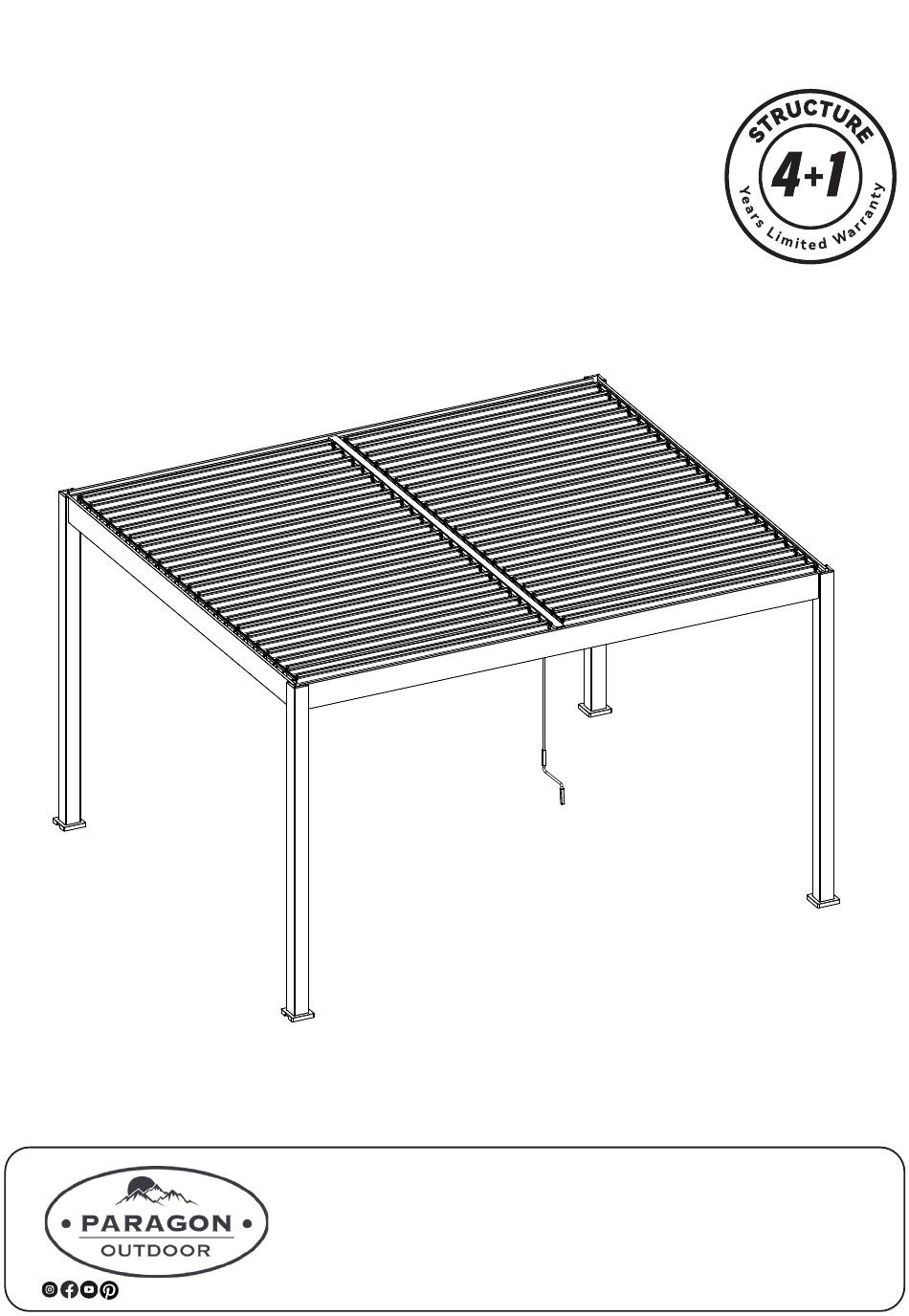

Paragon Outdoor Aluminum
Louvered Pergola
12'×14'
Assembly Instructions
@paragonoutdoorcompany
Paragon Group USA
Customer Service Contact Information: 1-877-782-4482
support@paragon-outdoor.com
Register your pergola at
www.paragon-outdoor.com
for an extra 1 year of coverage!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRLUG-1012GY and is the answer not in the manual?

Questions and answers

Related Manuals for Paragon PRLUG-1012GY

Summary of Contents for Paragon PRLUG-1012GY

  • Page 1 Paragon Outdoor Aluminum Louvered Pergola 12'×14' Assembly Instructions Register your pergola at www.paragon-outdoor.com for an extra 1 year of coverage! Paragon Group USA Customer Service Contact Information: 1-877-782-4482 support@paragon-outdoor.com @paragonoutdoorcompany...
  • Page 2 Paragon Outdoor Aluminum Louvered Pergola 12'×14' Please read the following instructions completely before you begin assembly. Any errors made during installation are not covered by the product's warranty. If you have any questions during the installation process, please call us at 1-877-782-4482.
  • Page 3 3D FOOTING MEASUREMENT 3/27...

  • Page 4: Limited Warranty

    Paragon Outdoor will replace any defective part within the warranty period, at its discretion, if it is found to be defective of workmanship or materials. Paragon Outdoor may request photographs, videos, or physical return of the defective part for verification purposes.

  • Page 5: Planning Assembly

    1. In case of a defective part or if a problem occurs while using this product, please contact Paragon Outdoor Customer Service at (877) 782-4482. 2. To order replacement parts, identify the model number and the part number found in your assembly manual.

  • Page 6: Safety Information

    If you are experiencing any issues with the assembly of your new structure, please do not return – our expert customer service team will help you with all questions for a smooth assembly process. Email: support@paragon-outdoor.com Need Assistance? Call: +1 (877) 782-4482 Hours of Operation Speak with an Expert Customer Service Agent: Monday –...
  • Page 7 CARTON 1/6(POSTS AND LOOSE PARTS) Reference Parts Quantity Post Reference Parts Quantity Reference Parts Quantity 10×80 Post skirt Expansion bolt 6×35 Base plate Socket screw 6X35 Reference Parts Quantity Reference Parts Quantity 4mm Allen key 6mm Hex bit 10mm 4mm Hex bit 10mm Flat wrench PH2 Hex bit 6mm Allen key...
  • Page 8 Reference Parts Quantity Reference Parts Quantity Spin for louver Plug Beam fixing screw Washer 6×35 Plastic cap Socket screw 6X35 6×12 Plastic cap Socket screw 6X12 Ring cap Rubber clog Locking cap Connecting Bar(FO) & Brush Inside! CARTON 3/6(LOUVERS ) Reference Parts Quantity...

  • Page 9: Assembly Guidelines

    CARTON 4/6(LOUVERS ) Reference Parts Quantity Louver CARTON 5/6(LOUVERS ) Reference Parts Quantity Louver CARTON 6/6(LOUVERS ) Reference Parts Quantity Louver ASSEMBLY GUIDELINES STEP 1 : Assembly of Louvers STEP 2 : Building the frame STEP 3 :Louvers and their connections 9/27...
  • Page 10 STEP 1 Assembling the Louvers Components Parts Tools P3-1 10mm P3-2 4×16 lock nut 6×35 Attention : 1. Master Louver P will be assembled with P4/P3-2 end caps and Master Louver P will be assembled with P3-1/P5. These Master louvers will control the gear box in later step. 2.
  • Page 11 STEP 1-1 Attention: Do not overtighten when assembling louver end caps. Q19 screw will not extend past Q16. Assemble the louver connectors P4 and P5 as shown below. P4x45 P5x45 11/27...
  • Page 12 STEP 1-2 Attention: There are 2 Master Louvers these will have louver end caps P3-1/P5 and P3-2/P4 installed. Install as shown as these will attach to gearbox within Beam D in a later step. Attaching P3-1/P3-2 (master louver end cap) and P4/P5 (louver end cap) to P (master louver with P3-1/P3-2). Use qty 2 of part P14/Q18.
  • Page 13 P3-2 P3-1 13/27...
  • Page 14 STEP 2 Building the Frame Components Parts Tools 6×35 Attention: 1. You can change the direction of the crank by changing the direction of Middle Beam D. 2. Do not attach D (Middle Beam) to C until all louvers P are installed. 3.
  • Page 15 STEP 2-1 1.Slide Q1 (post skirt) onto A (post). Make sure to align notch on Q1 with A, as this is a drain outlet. 2.Use Q20 (Screw) to install Q2 (base plate) to base 3.Tighten the screw with Z3 if needed. of A (Post) .
  • Page 16 STEP 2-3 Place the A (post) and C (side beam) on a flat surface.Use a square to make sure Beam C/Post A are properly aligned before tightening. 1. Attach C (side beam) to A (Post) 2. Use Beam fixing screw ) and place in (side Beam) to connect...
  • Page 17 STEP 2-4 1. Slide B (beam) into A (post) aligning holes.Use a square to make sure Beam C/Post A are properly aligned before tightening. 1. Attach B (beam) 2. Insert Q7 (beam fixing screw ) into B (beam) attaching A (post). Use Z6 to secure.
  • Page 18 STEP 2-5 Attention: Here is screws holes 1. Measure diagonally to ensure frame is square before setting D (middle beam) in center of C (beam). 2. In this step you will set D (beam) in place only. Do not secure connectors bar (F) to outer beam C. This will be done in a later step (3-6).

  • Page 19: Step 3 Installing Louvers

    STEP 3 Installing Louvers Components Parts Tools 10×80 6×12 Attention: Please follow the order outlined in the instruction manual when assembling louvers. 19/27...
  • Page 20 STEP 3-1 Attention: Position of louvers are important. Insert master louver P with louver end caps P3-1 and P3-2 into Middle Beam D where gear box is located. Insert master louver P end with louver end caps P4/P5 into outside Beam B. P3-1 P3-2 1.
  • Page 21 STEP 3-2 Attention: Install louvers from the other side of pergola to steady the frame. 1. Install Louver P at furthest end of pergola. Insert louver P end cap P4/P5 into Middle Beam D. Once in place install Q12(plastic cap) above where louver end caps P4/P5 set into Beam D.
  • Page 22 STEP 3-3 After installing the first 3 louvers, start connecting F (connection bar) to louver end caps. As you install the remaining louvers connect F to each louver end cap as each one is installed.. Pay attention to the direction of the F (connector bar) shown in above pictures. Use Q18 washer and Q17 plug to attach connector bar F to louver end caps inserted into Middle Beam D.
  • Page 23 STEP 3-5 Finish installing all louvers P and connecting to connector bar F as in previous steps and installing plastic cap Q12. STEP 3-6 Attention: Louvers should be vertical Keep louvers vertical to access the corner area and insert Q10 plastic cap to cover holes in Beams B/C.
  • Page 24 STEP 3-7 Attention: Louvers can rotate. Make sure to keep Middle beam centered on beam C. Use Z4 (4mm bit) to attach Q22 (socket screw) to connector in middle beam D securing to side beam C . STEP 3-8 Attention: Place E (cap beam) onto Middle Beam D.
  • Page 25 STEP 3-9 Install Crank handle H to gear box. STEP 3-10 25/27...
  • Page 26 12MM Check all dimensions of the pergola, then anchor base plate Q2 to concrete foundation using Q15 (expansion bolt). Caution the post skirting can scratch post. STEP 3-11 Take off the plastic cap firstly, then you can install the ring cap.
  • Page 27 Paragon Group USA Customer Service Contact Information: 1-877-782-4482 support@paragon-outdoor.com @paragonoutdoorcompany...
