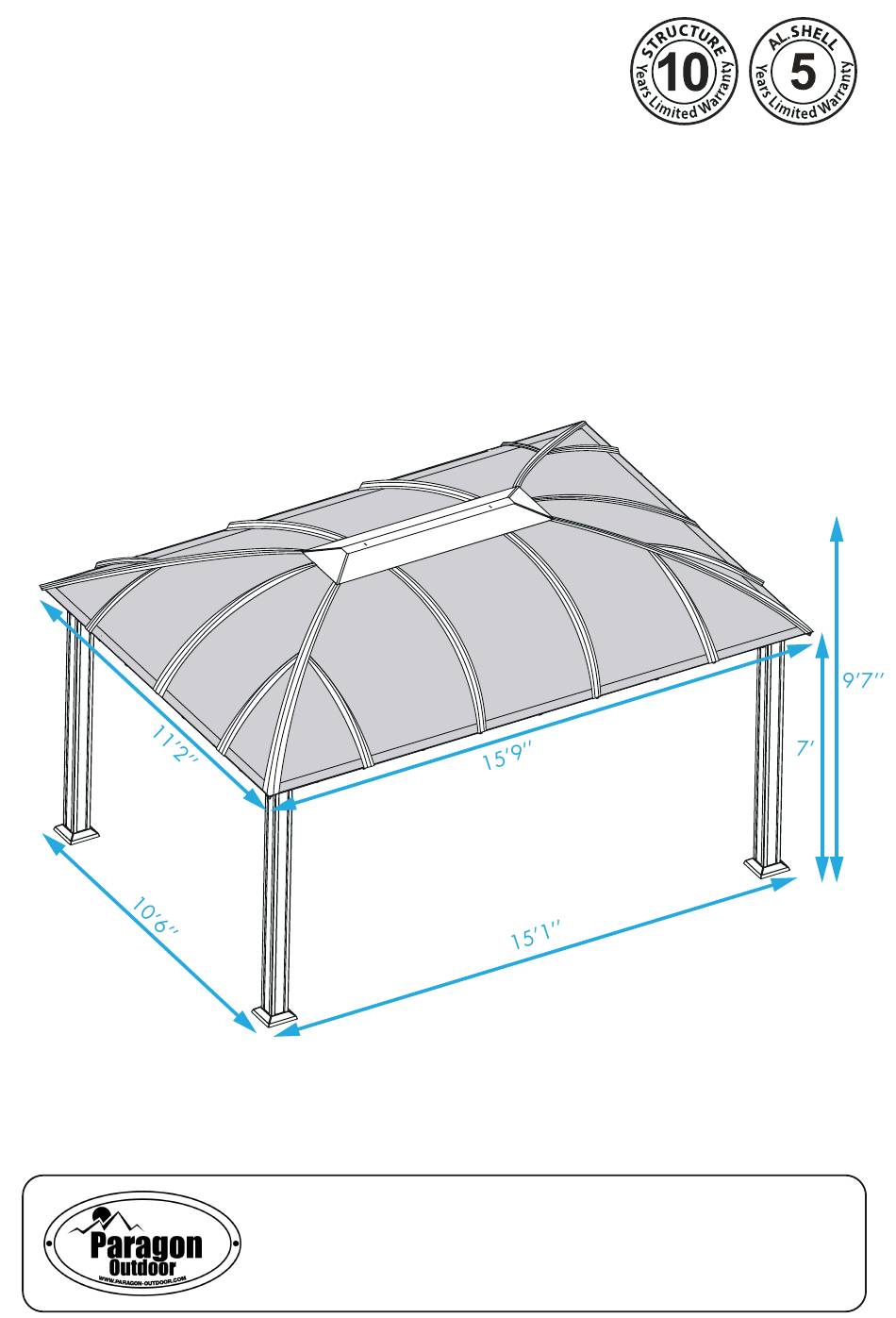

- Page 1 Gazebo GZ3DXL Aluminium Composite Roof Panels Assembly Instructions Paragon Group USA Customer Service:(877) 782 4482 Email:cs-outdoors@paragongroupusa.com...
-
Page 2: Introduction
Introduction Thank you for purchasing the Gazebo GZ3DXL. When properly assembled and maintained, this gazebo will provide many years of enjoyment! These instructions include helpful hints and important information needed to safely assemble and properly maintain the gazebo. Please read these instructions completely before you begin. -
Page 3: Table Of Contents
Table of Contents Safety Advice Introduction..........• The gazebo must be positioned and fixed Table of Contents......... on a flat level surface. List of Parts..........• Dispose of all plastic bags safely. Keep Step 1 Assembling the Corner Profiles....6 them out of the reach of children. -
Page 4: List Of Parts
List of Parts contact customer service before beginning assembly: Customer Service:(877) 782 4482 Email:cs-outdoors@paragongroupusa.com Profile Qty Step Profile Qty Step Corner Profile Outer Roof Connector 2190mm 2220mm Roof Gable Profile Support Frame 2469mm 1623mm Roof Gable Profile Support Plate 1808mm 942mm Roof Corner Roof... - Page 5 Profile Qty Step Profile Qty Step black M6*25mm side Aluminium Composite Roof Panel M6*33mm black side Aluminium Composite M6*38mm Roof Panel black M6*45mm side Aluminium Composite Roof Panel Φ4*8mm black side Aluminium Composite Roof Panel U-shaped Connector 1009mm 1000mm 1000mm 823mm T - connector 823mm...
-
Page 6: Step 1 Assembling The Corner Profiles
STEP 1 Assembling the Corner Profiles Place all the parts on a level surface . Make sure the pieces are in the correct positions before assembling. Carefully follow the order of assembly to ensure an easy installation. Wear proper safety gear including work shoes, gloves and goggles. Components Corner profile (1) Support frame (2) - Page 7 ATTENTION: Note: Do not need to assemble support frame (2) if you purchased the screen netting (GZ3DS or GZ3DXLS). Slide support frames (2) over lower end of corner profiles (1). Attach support plates (3) to corner profiles as shown, using screws (33) for each plate. Leave support frames (2) about 10”over lower end of corner profiles (1) until step 4 (Securing the gazebo to the ground) of 24...
-
Page 8: Step 2 Assembling The Rails
STEP 2 Assembling the Rails NOTE: The Rails (5) have a preassembled connecting parts to be inserted into Rails (6). Components Screw (31) Inner Roof Connector (9) x 16 Rail (5) Rail (6) x 14 Rail (7) Rail (8) Outer Roof Connector (10) Screw (32) x 64 x 18... - Page 9 Attach four outer roof connectors (10) and three inner roof connectors(9) to each rail set at pre-drilled screw holes, using screws (32). VIEW FROM SIDE VIEW FROM THE TOP Attach five outer roof connectors (10) and four inner roof connectors(9) to each rail set at pre-drilled screw holes, using screws (32).
-
Page 10: Step 3 Attaching The Rails To The Corner Profiles
STEP 3 Attaching the Rails to the Corner Profiles Attach one roof profile set (5+6) to two corner Components profiles (1) as shown, using screws (32) and supplied magnetic hex key (45) through holes in profile set. Screw (32) Plastic Cap #3 (39) Magnetic Hex Key (45) x 32 x 32... - Page 11 Using at least 3 people, attach the remaining two roof profile sets (5+8,6+7) to corner profiles (1), connecting all four corner profiles (1). Fasten with four screws (32) and supplied magnetic hex key (45) on each side. Close holes in profile sets with plastic caps #3 (39). IMPORTANT: After this step you should place the gazebo frame in its desired location.
-
Page 12: Step 4 Securing The Gazebo To The Ground
STEP 4 Securing the Gazebo to the Ground Fasten the gazebo frame to the ground, using four spikes (42) for each support plate. Lower support frames (2) to cover support plates (3). Components Ground spike (42) x 16 Optional Securing the Gazebo to a Concrete Floor or Wood Deck Concrete Floor: Components 1. -
Page 13: Step 5 Installing The Lower Roof Gable Profiles
STEP 5 Installing the Lower Roof Gable Profiles ATTENTION: DO NOT ATTEMPT TO ASSEMBLE THIS ALONE ! Components Roof gable profile(11) Roof gable profile(12) Roof gable profile(13) Roof gable profile(14) Roof gable profile(15) 2469mm 1808mm 949mm 949mm 1790mm Roof Top Cover (29) U-shaped Roof Top Screw (50) - Page 14 Install roof gable profiles (15). Using screws (50) nuts (38) connect top center connector (48) to top connector beam(30). Using screws (32)connect profiles (15) to inner roof connector (9) on long roof profiles sets (7,8) and the other end to roof top center connector(48). 12/15 Using screws(32) connect profiles(12) to inner roof commector (9) on short roof profiles sets(5,6) and the other end to top...
- Page 15 Attach T-connectors (46) to underside of roof gable profiles (12,15) , using screws (32) as shown. Attach X-connectors (47) to underside of roof gable profiles (11) , using screws (32) as shown. Connect profile (13,14) to X-connector (47) and the other end to T-connector(9) using screws(32). 12/15 13/14 15 of 24...
-
Page 16: Step 6 Installing The Lower Horizontal Roof Profiles
STEP 6 Installing the Horizontal Roof Profiles Components Screw(32) x 24 Roof profile(27) Roof profile(28) Roof profile(24) Roof profile(25) Roof profile(26) Corner cap(49) 1009mm 1000mm 1000mm 823mm 823mm Screw(33) Attach roof gable profiles (24,25,26,27,28) toT-connectors A (46) and X-connectors B (47). 24/26/28 25/24/27 12/15... -
Page 17: Upper Roof Profiles
STEP 7 Installing the Roof Panels and Upper Roof Profiles IMPORTANT: Gently cut on the edge of the panels on both side with knife and remove protective plastic of roof panels. Place with black surface toward the sun facing out when installing. - Page 18 37 to 18 of 24...
- Page 19 Components Roof profile(14A) Roof profile(15A) Roof profile(13A) Roof profile(11A) Roof profile(12A) Screw(35) 942mm 942mm 1623mm 2220mm 1623mm x 56 Place roof profile (15A) on top of roof profile (15) as shown and fasten with screws (35) from below (inside gazebo). ATTENTION: Roof Profiles, roof panels and gables must be aligned properly during assembly to minimize any possibility of leaking.
- Page 20 14,15 and fasten with screws(37) to outer roof connector(10) from below. , and fasten with two screws(35) from below(inside gazebo). 20 of 24...
- Page 21 Fit roof panel(19,20,21,22) on top of roof profiles(11,12,13,14) as shown and fasten with one screw (37) to outer roof connector(10). Place roof profiles(11A) on top on roof profiles(11) and fasten with screws(35) from below. 21 of 24...
- Page 22 Continue in a clock-wise direction as shown. Place the roof panel (19,20) on top of profiles (11,13,14) , fasten with screw (37) from below. Place the roof gable profile (11A) on top of (11) , fasten with screw(35) from below of (11). 22 of 24...
-
Page 23: Step 8 Installing The Plastic Caps
Place the roof gable profile(13A) on top of(13), fasten with screw(35) from below of (13). STEP 8 Installing the Plastic Caps Components 12/13/14/15 Plastic Cap #1 (40) Plastic Cap #2 (41) x 14 Close off roof profiles (12/13/14/15) with plastic caps #1(40) and roof profiles (11) with plastic caps #2 (41). - Page 24 Gazebo GZ3DXL Aluminium Composite Roof Panels Assembly Instructions WARRANTY: Warranty covers damage due to manufacturing defects only. Warranty does not cover weather inflicted damage (Force Majeure) and/or damages caused by not following assembly instructions and adhering to warnings in manual.
